With Tachometer

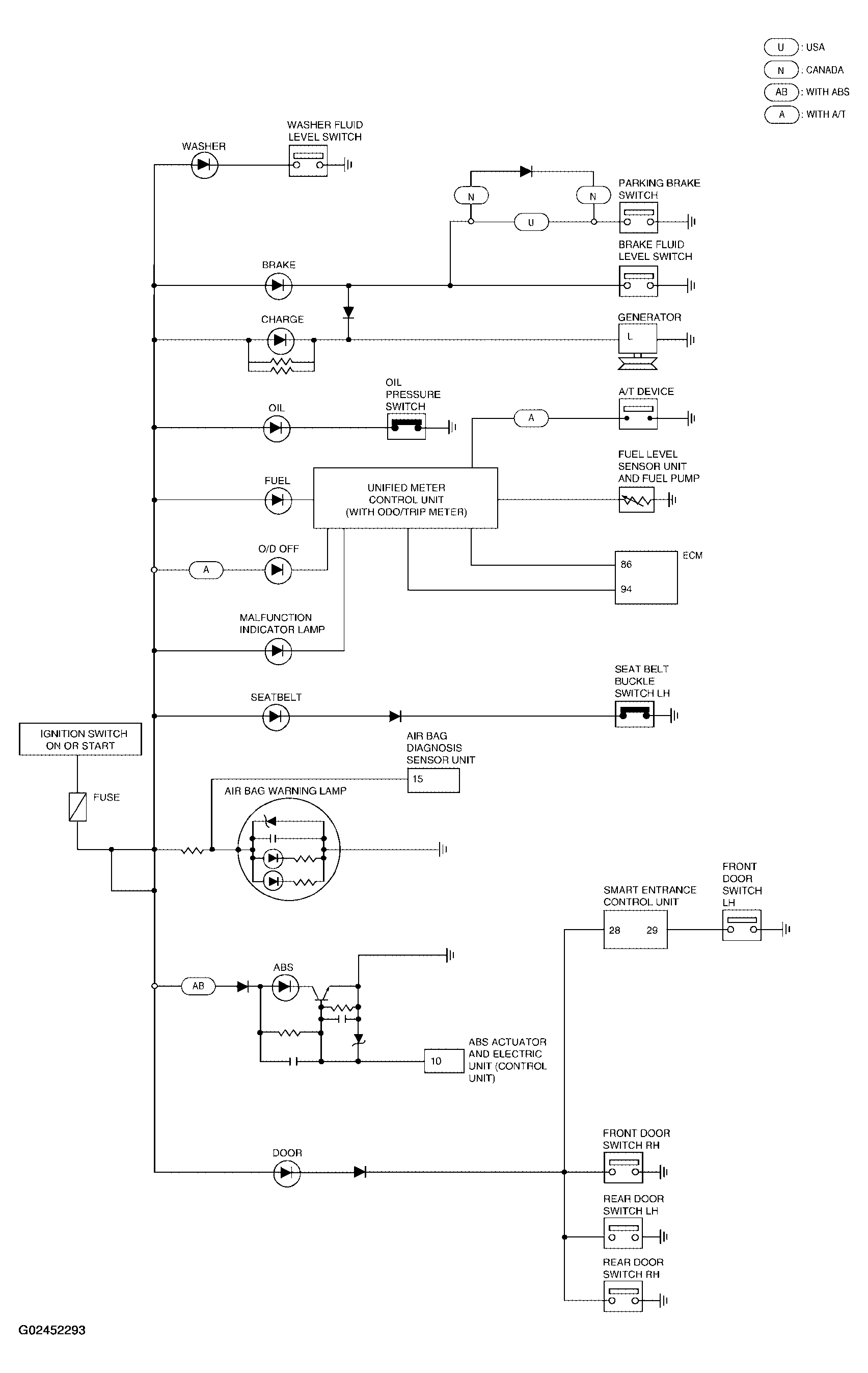

Fig 1: Warning Lamps - Schematic Diagram (With Tachometer)

G02452293

Courtesy of NISSAN MOTOR CO., U.S.A.
