Without Tachometer

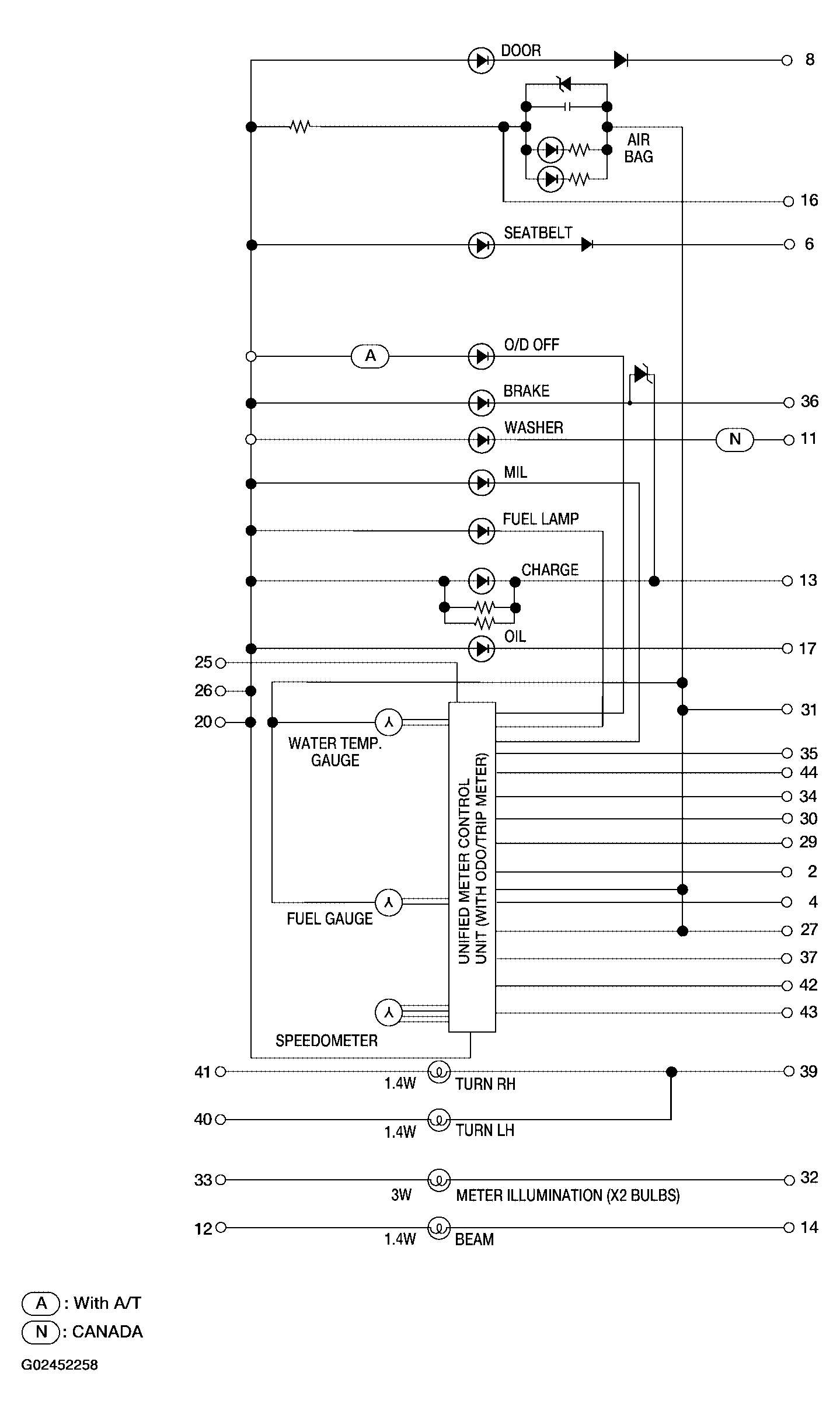

Fig 1: Schematic Diagram - Without Tachometer

G02452258

Courtesy of NISSAN MOTOR CO., U.S.A.
