Wiring Diagram - B/COMP -

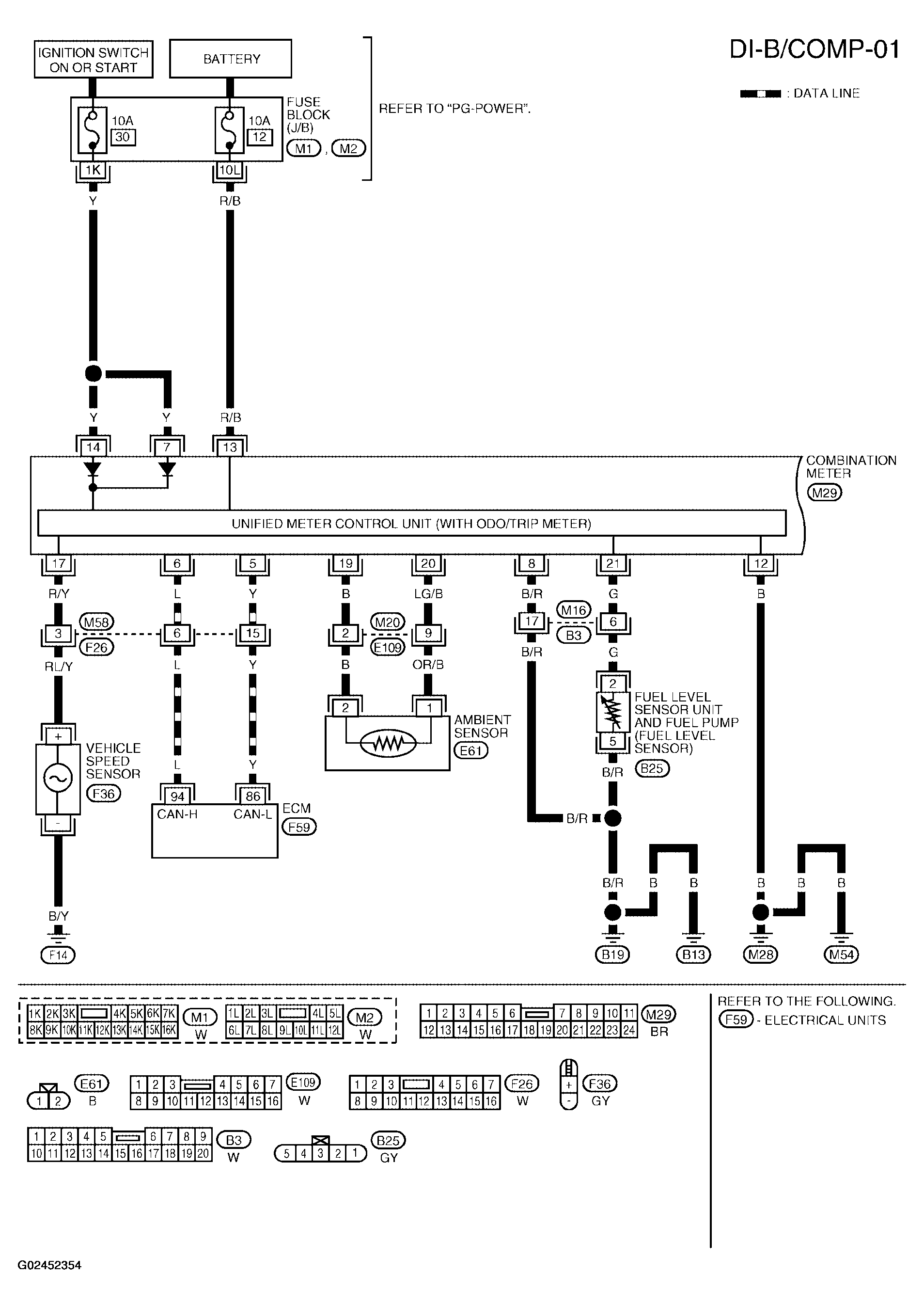

Fig 1: Wiring Diagram - DI-B/COMP-01

G02452354

Courtesy of NISSAN MOTOR CO., U.S.A.
