M/T Model

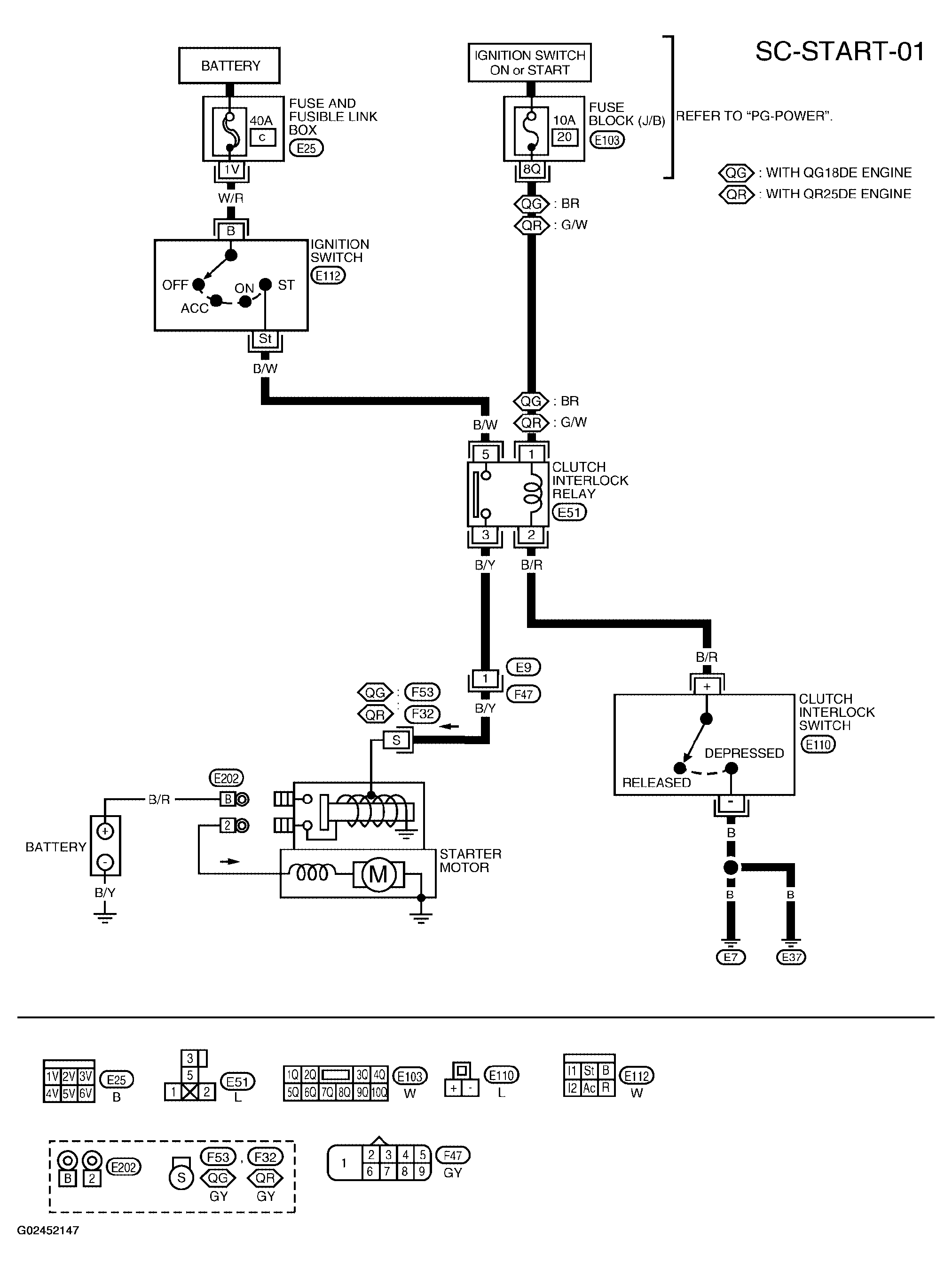

Fig 1: Wiring Diagram - Starter Circuit, M/T Model (SC-START-01)

G02452147

Courtesy of NISSAN MOTOR CO., U.S.A.
