A/T Model

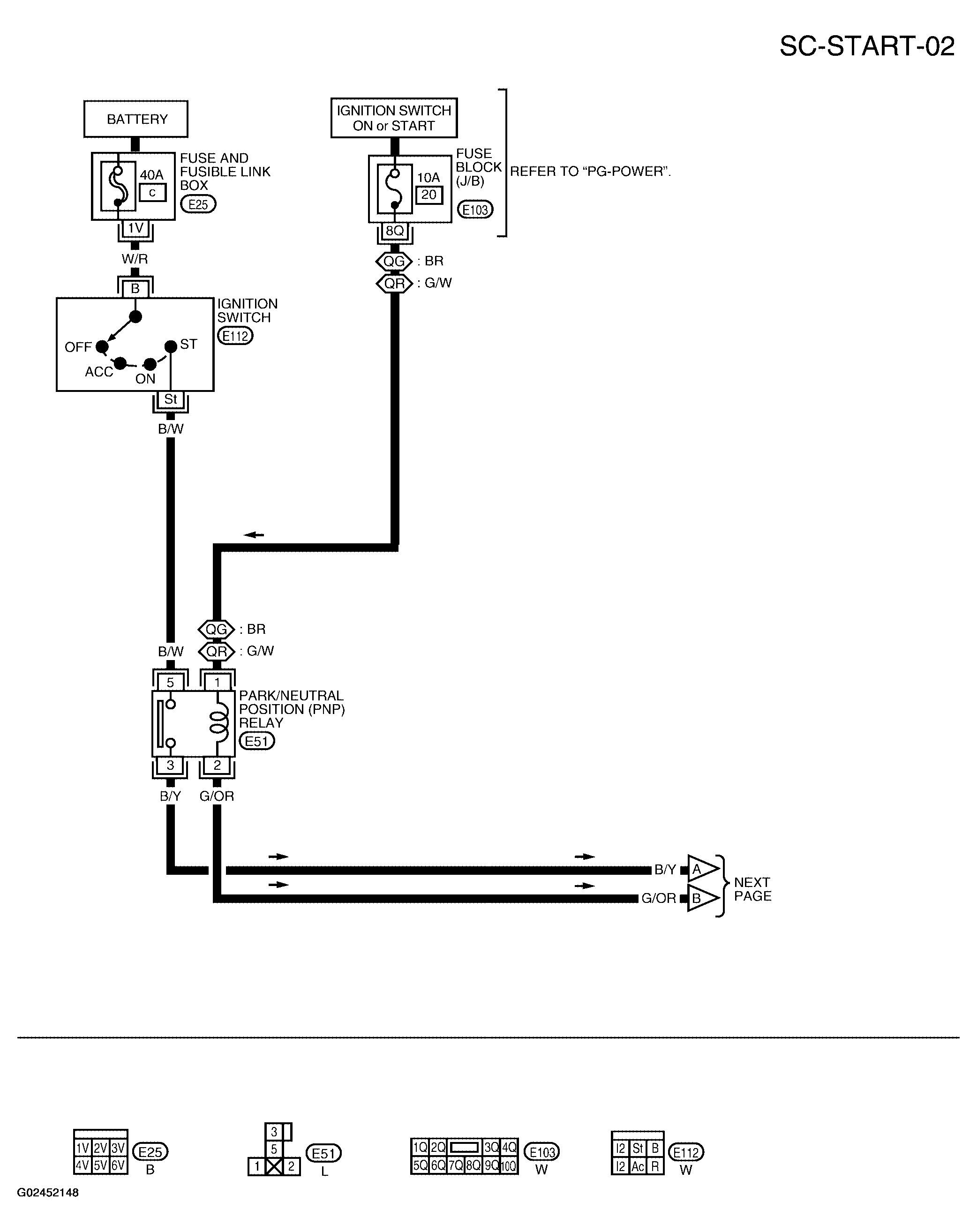

Fig 1: Wiring Diagram - Starter Circuit, A/T Model, 1 Of 2 (SC-START-02)

Courtesy of NISSAN MOTOR CO., U.S.A.

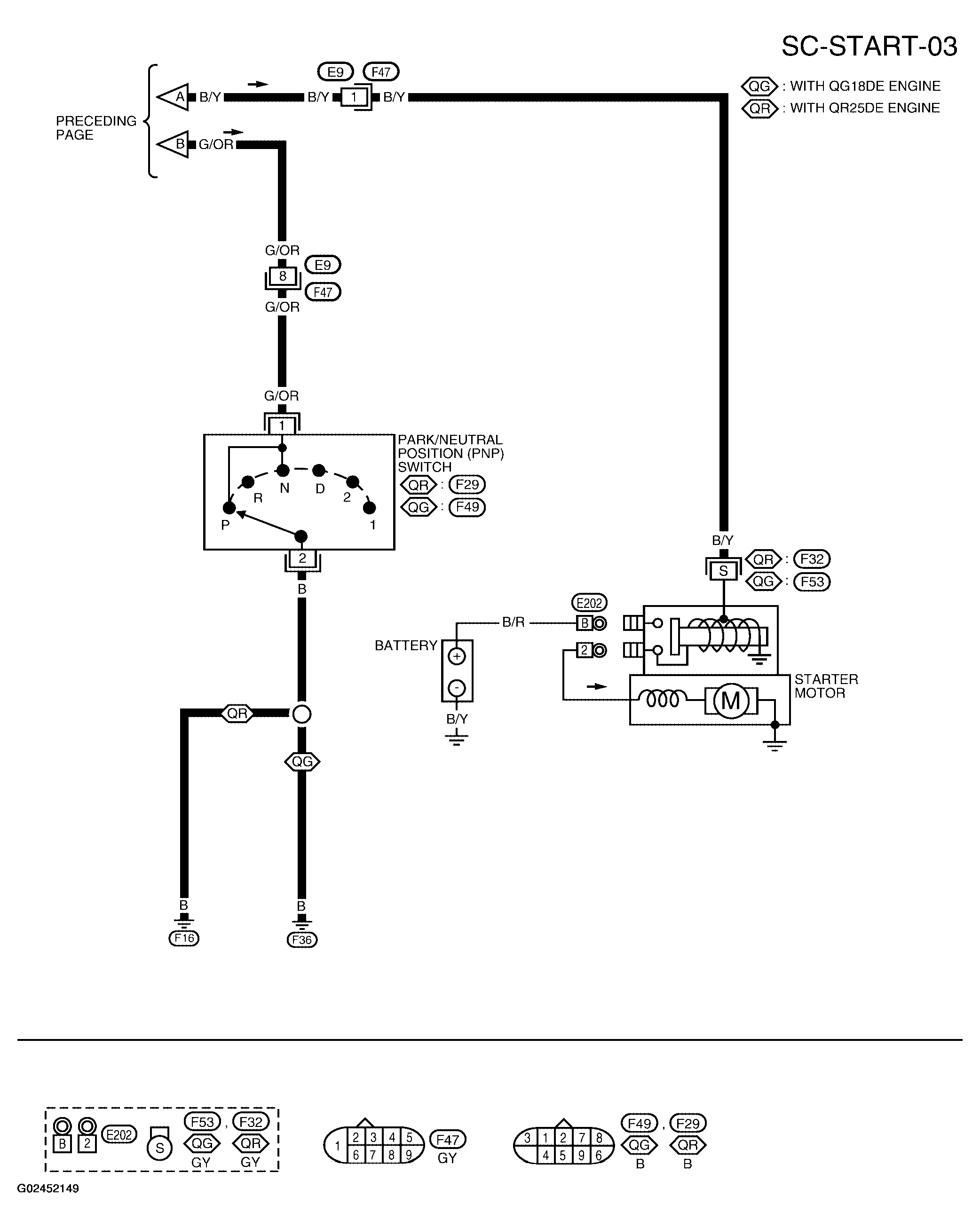

Fig 2: Wiring Diagram - Starter Circuit, A/T Model, 2 Of 2 (SC-START-03)

Courtesy of NISSAN MOTOR CO., U.S.A.
