Service Data And Specifications (SDS): Starter

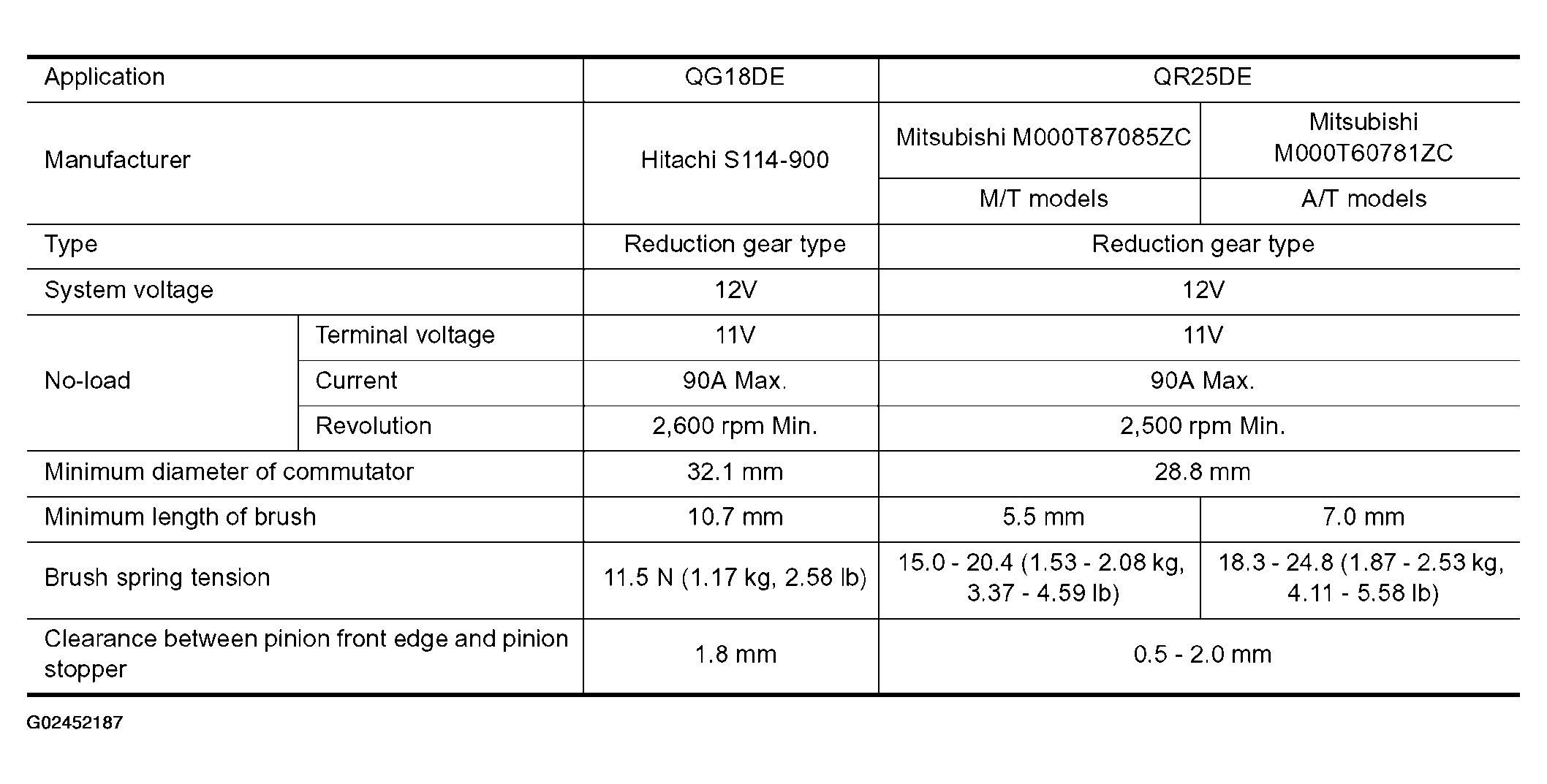

Fig 1: Starter Specification Chart

G02452187

Courtesy of NISSAN MOTOR CO., U.S.A.
