Wiring Diagram - CHARGE
Wiring Diagram - CHARGE
For references to PG-POWER, see
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
.

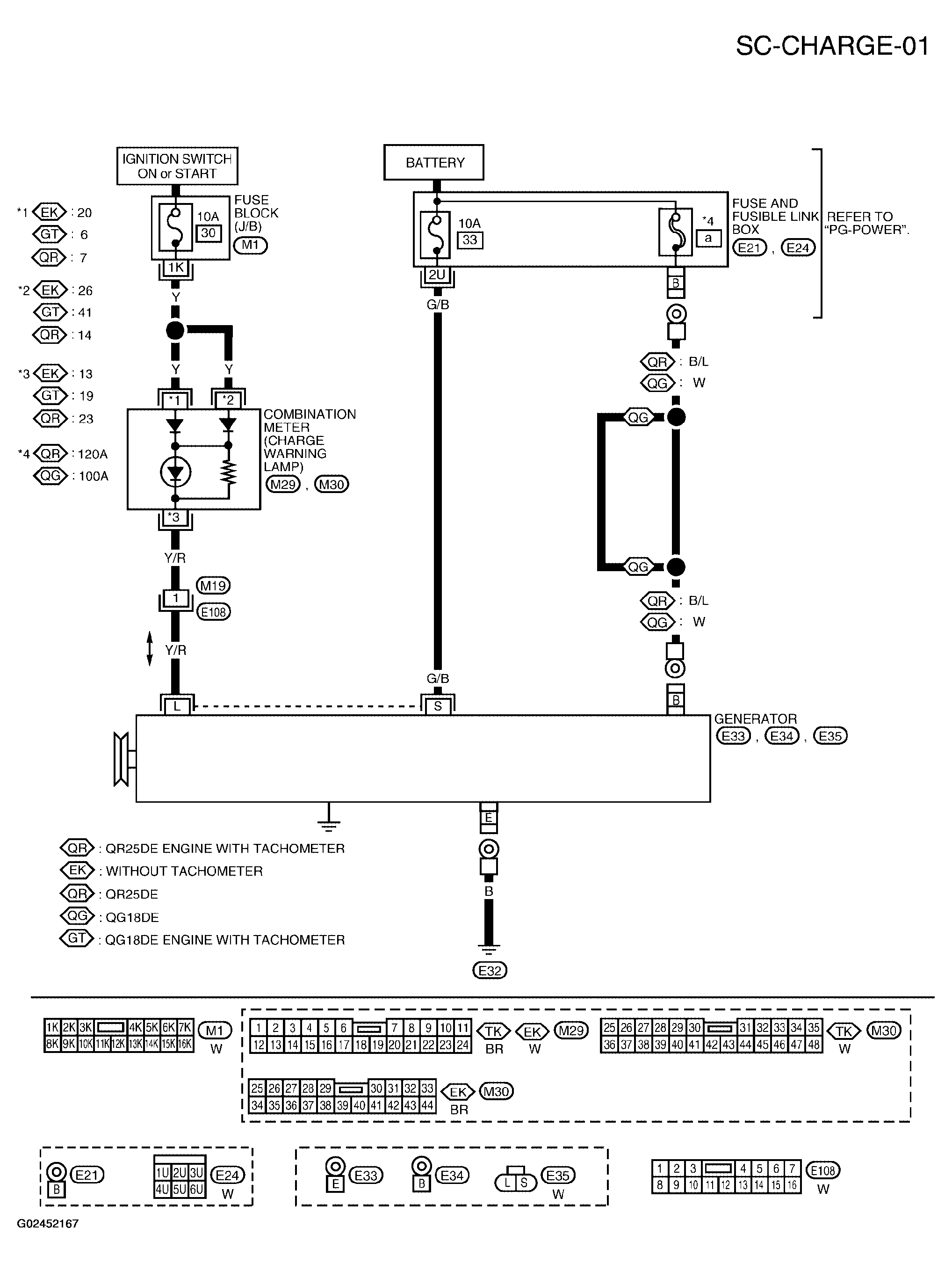

Fig 1: Wiring Diagram - Charging System (SC-CHARGE-01)
Courtesy of NISSAN MOTOR CO., U.S.A.
