Home >> Nissan-Datsun >> 2005 >> Sentra SE-R >> Repair and Diagnosis >> Electrical >> Charging Systems >> Starting & Charging System >> Generator >> Removal and Installation >> Qr25DE >> Installation

Removal and Installation: Qr25DE: Installation

To install, reverse the removal procedure.

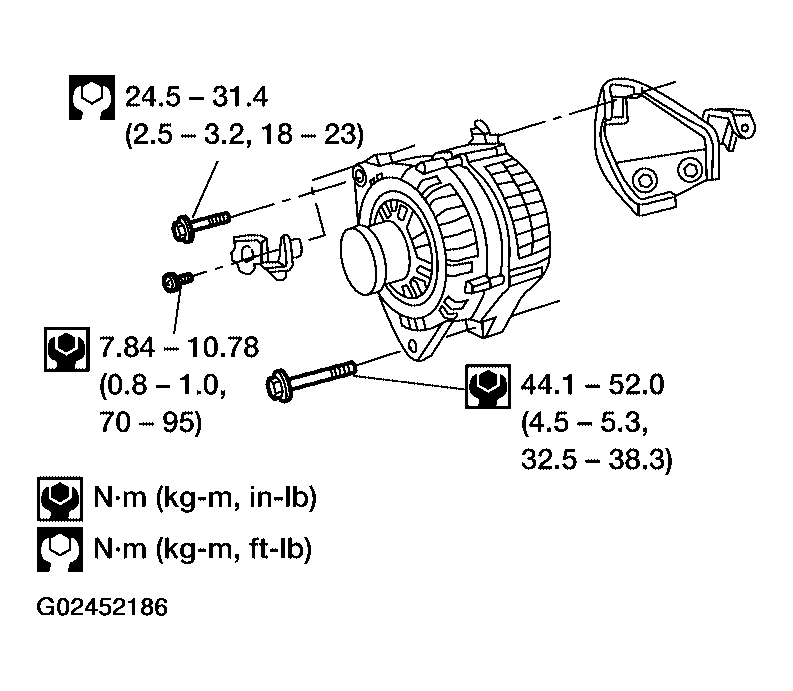

Fig 1: Installing Generator (QR25DE Engine, With Torque Specifications)

G02452186

Courtesy of NISSAN MOTOR CO., U.S.A.
