Removal and Installation: QG18DE: Installation

To install, reverse the removal procedure.

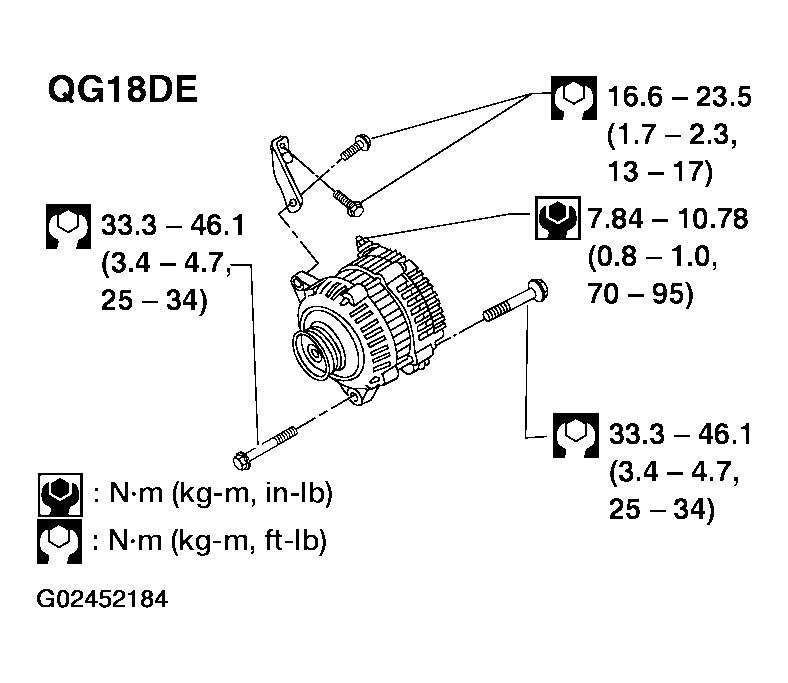

Fig 1: Installing Generator (QG18DE Engine, With Torque Specifications)
G02452184Courtesy of NISSAN MOTOR CO., U.S.A.
