Front Wheel Bearing

• Rotate wheel hub to check that wheel bearings operate smoothly.
• Check axial end play.
  • Axial end play: 0.05 mm (0.0020 in) or less

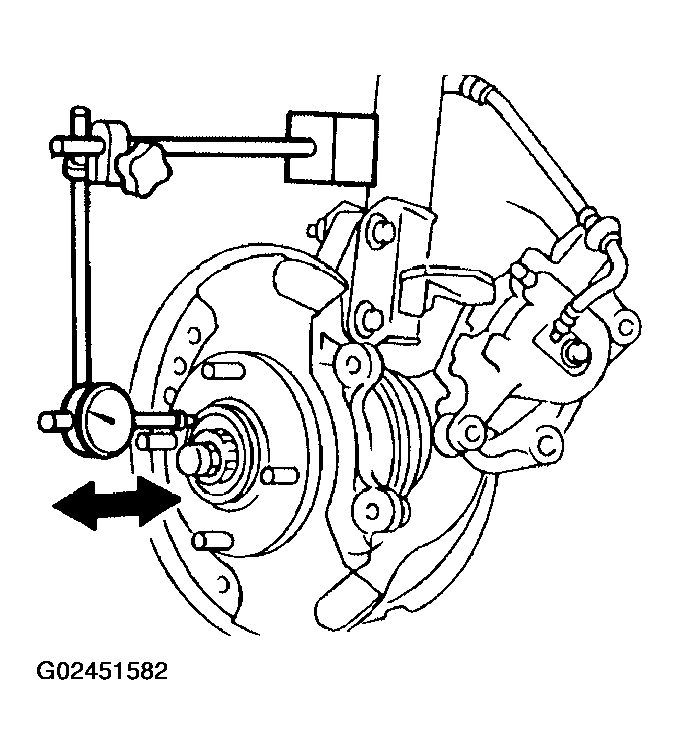

Fig 1: Checking Front Wheel Bearing Axial End Play

Courtesy of NISSAN MOTOR CO., U.S.A.

If out of specification or wheel bearing does not turn smoothly, replace wheel bearing assembly. Refer to WHEEL HUB AND KNUCKLE .
