Drive Shaft: Removal

Remove cotter pin and wheel bearing lock nut.

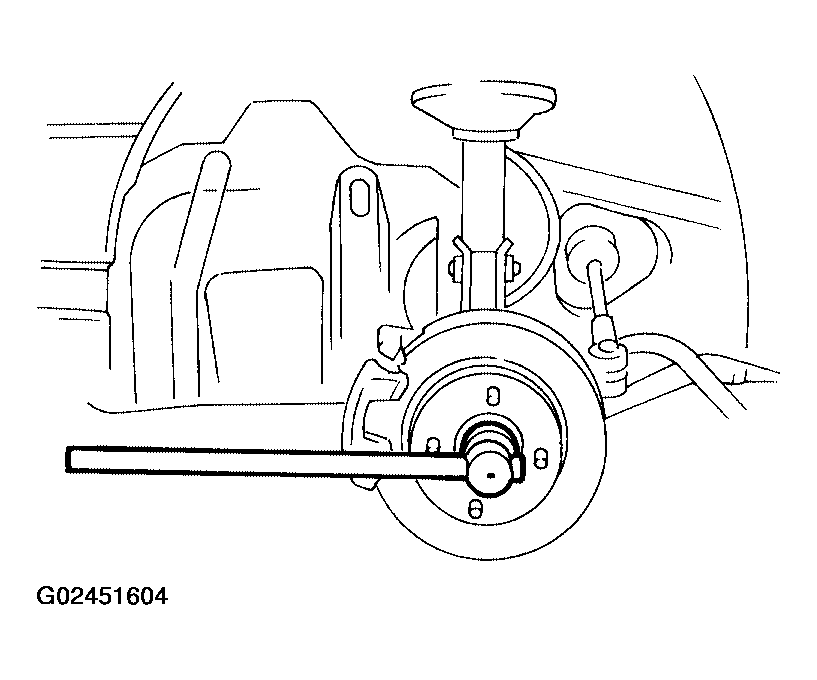

Fig 1: Removing Cotter Pin & Wheel Bearing Lock Nut
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove drive shaft center support bearing bolts.

Fig 2: Removing Drive Shaft Center Support Bearing Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove strut lower mounting nuts and bolts.

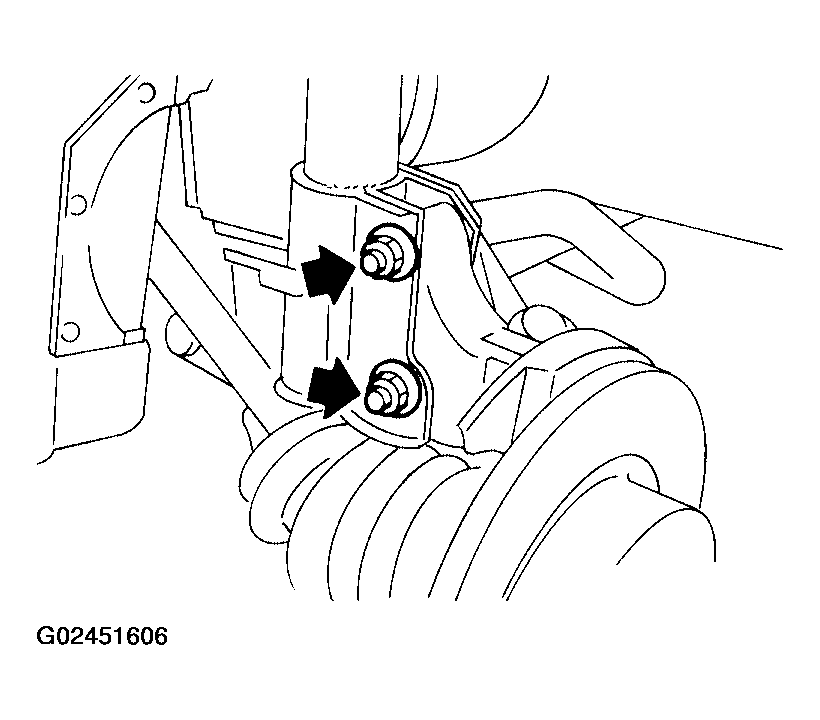

Fig 3: Removing Strut Lower Mounting Nuts And Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove brake hose clip.
Separate drive shaft from knuckle by lightly tapping it. If it is hard to remove, use a puller.
- Cover boots with shop towel so as not to damage them when removing drive shaft.

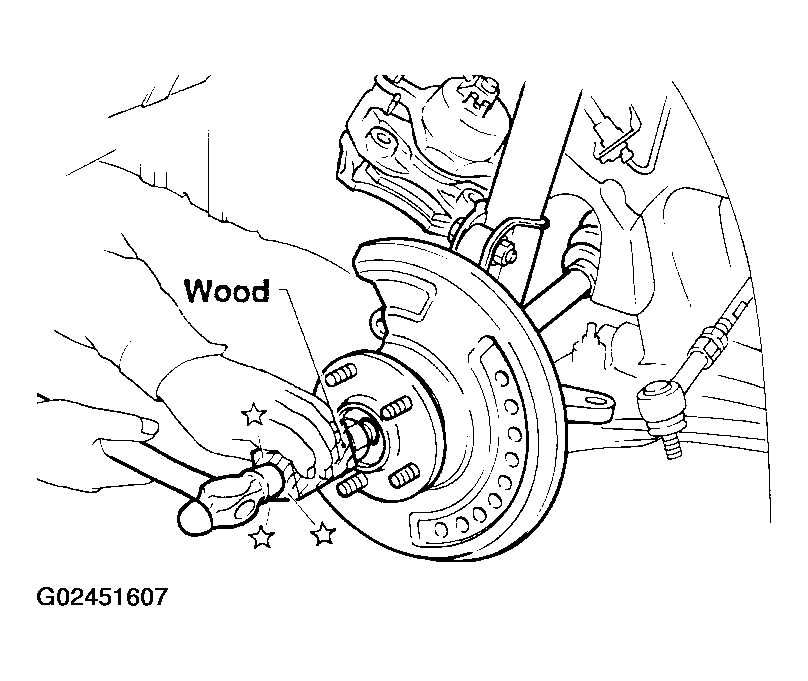

Fig 4: Separating Drive Shaft From Knuckle
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove left drive shaft from transaxle.

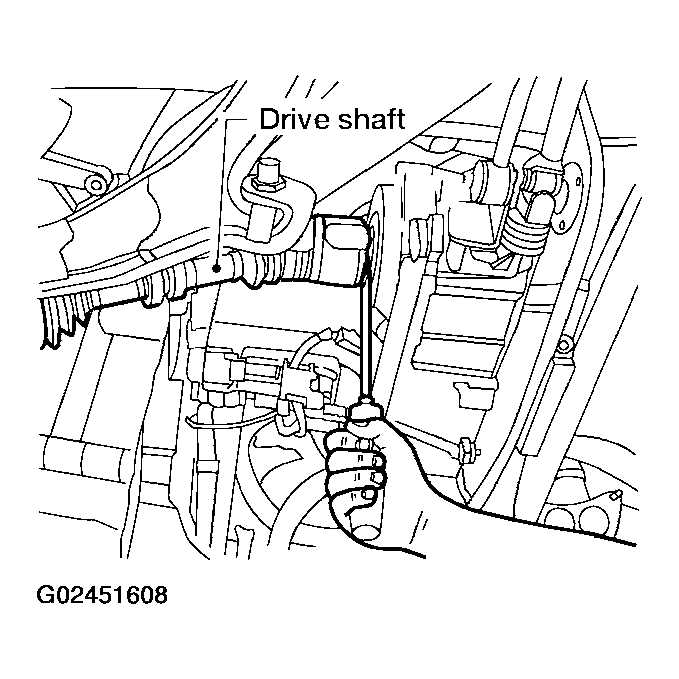

Fig 5: Removing Left Drive Shaft From Transaxle
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove right drive shaft from transaxle.
- For M/T models -
- Pry off drive shaft from transaxle as shown in Fig 6.

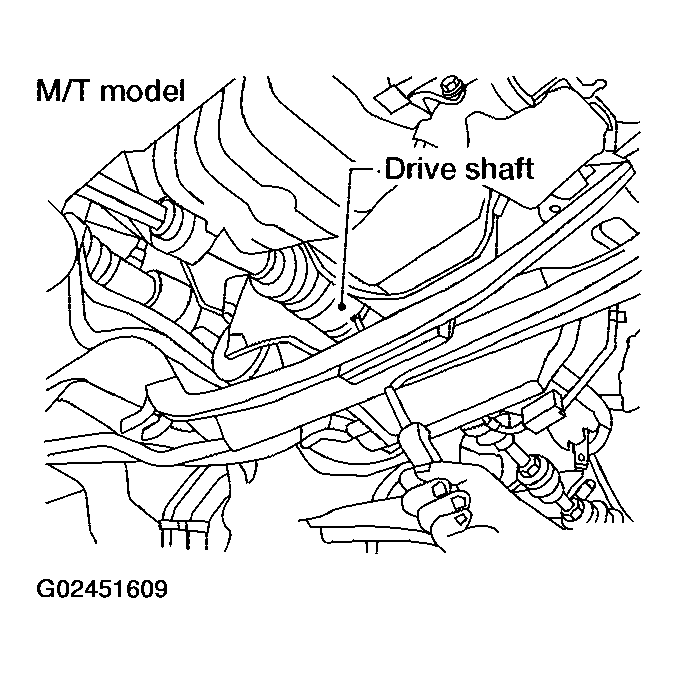

Fig 6: Removing Right Drive Shaft From Transaxle (M/T Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

- For A/T models -
- Insert screwdriver into transaxle opening for right drive shaft and strike with a hammer.
- Be careful not to damage pinion mate shaft and side gear.

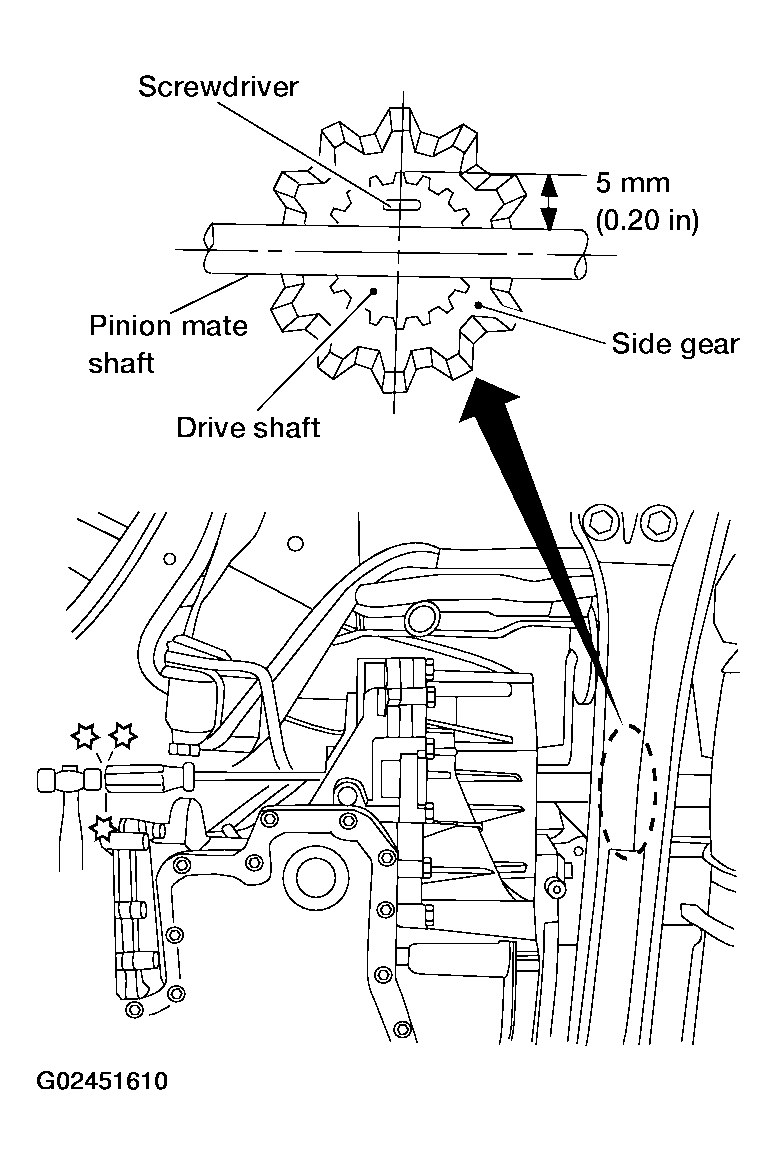

Fig 7: Inserting Screwdriver Into Transaxle Opening For Right Drive Shaft (A/T Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
