Support Bearing

  1. Install bearing into retainer.
    Fig 1: Installing Bearing Into Retainer
    G02451623Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install dust shield.
  3. Install snap ring.
  4. Press drive shaft into bearing.
    Fig 2: Pressing Drive Shaft Into Bearing
    G02451624Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install snap ring.
  6. Install new dust shield.

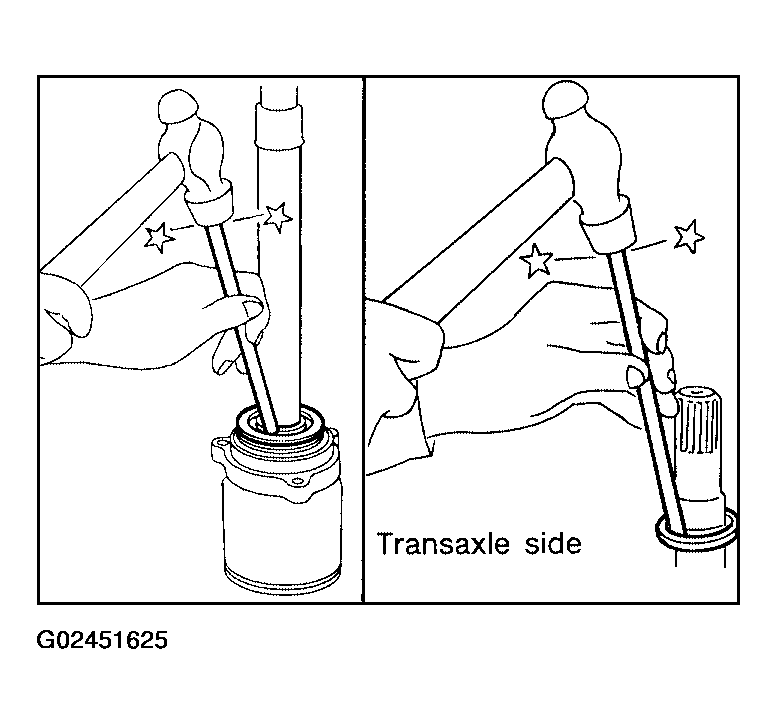

    Fig 3: Installing Dust Shield
    G02451625Courtesy of NISSAN MOTOR CO., U.S.A.
