Rear Wheel Sensor (Rear Disc)
Rear Wheel Sensor (Rear Disc)

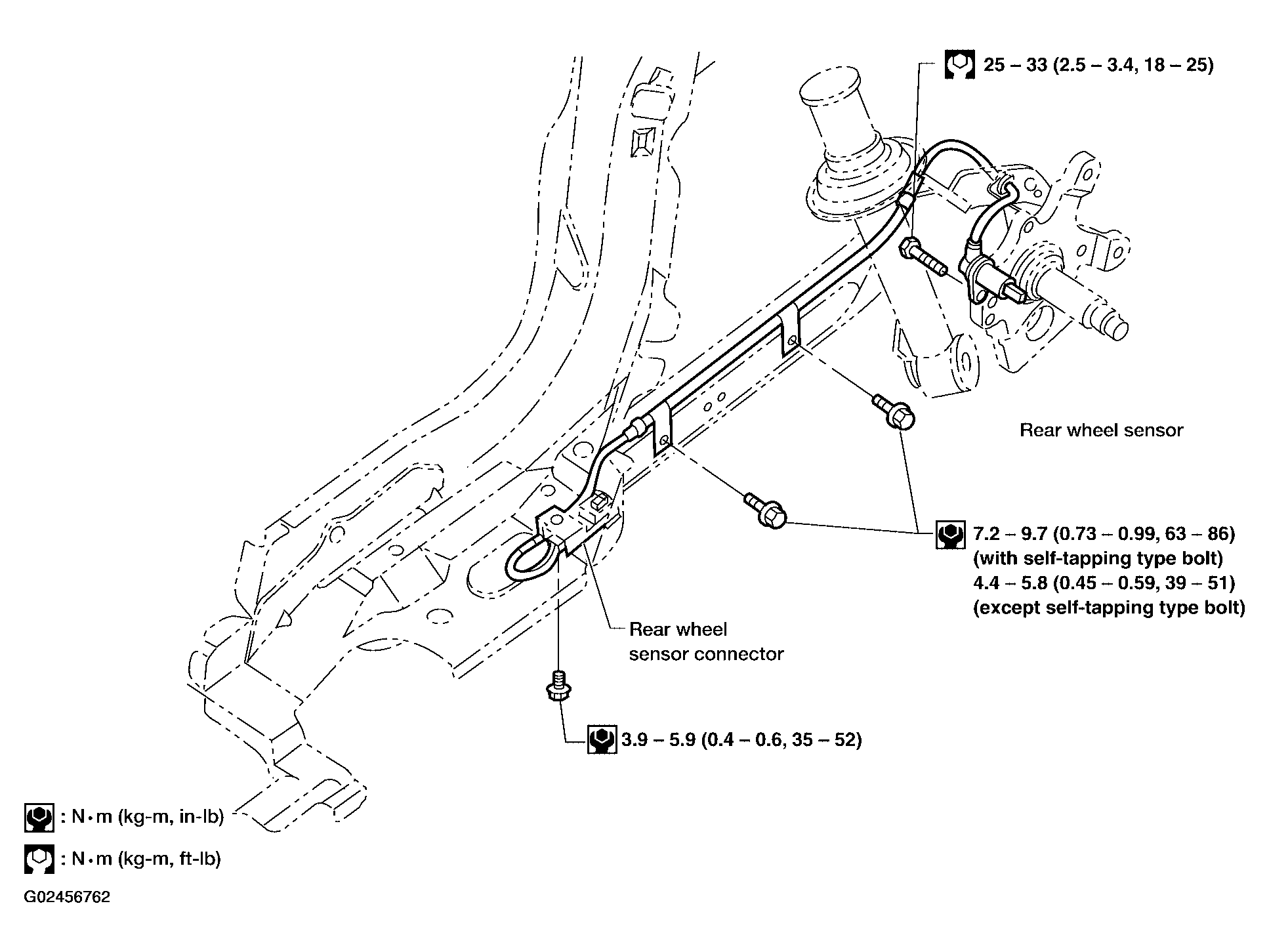

Fig 1: Rear Wheel Sensor -- Rear Disc With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
