Quarter Window

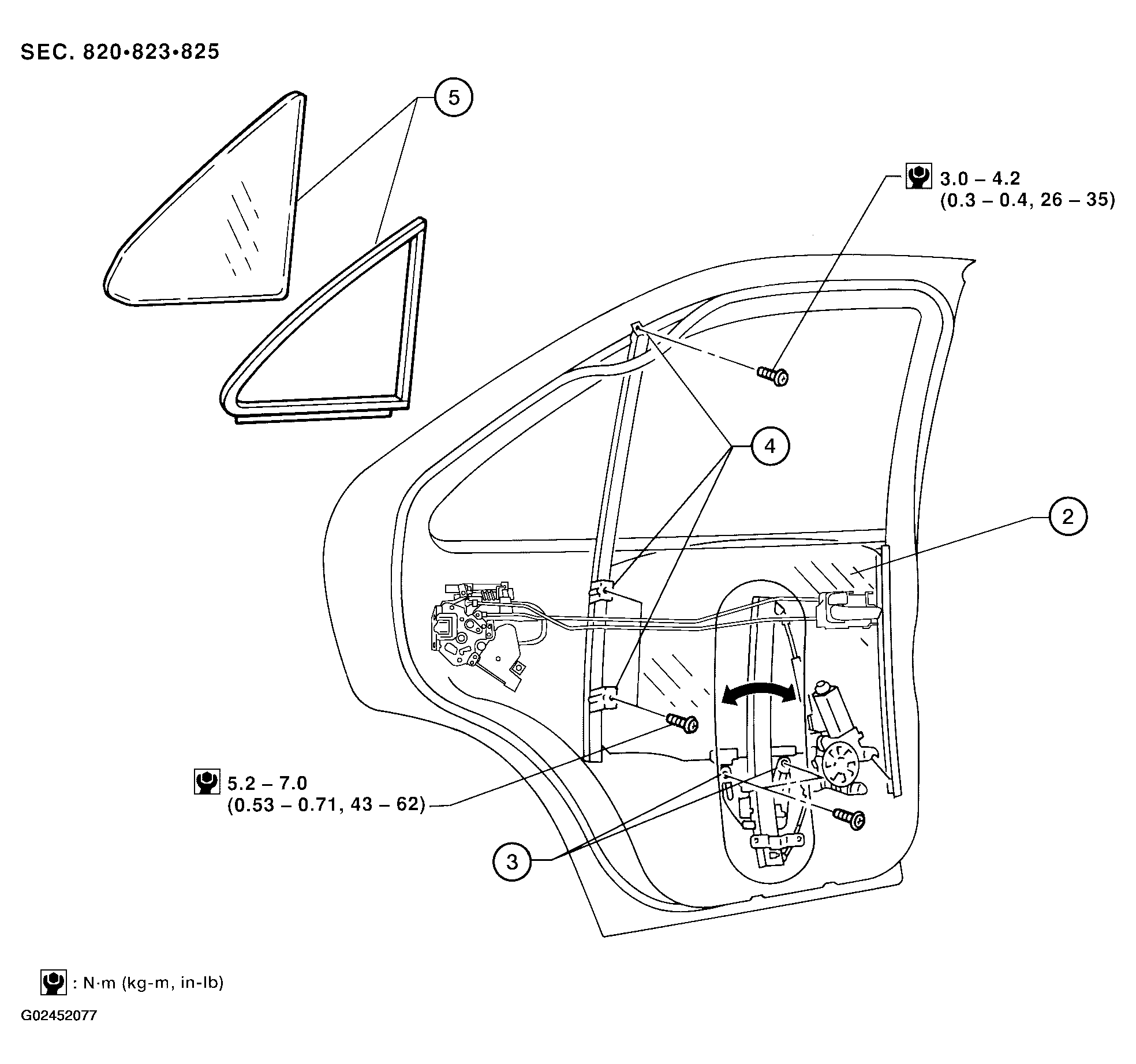

Fig 1: Rear Door Quarter Window With Torque Specifications
G02452077Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove the rear door finisher. Refer to REMOVAL AND INSTALLATION .
  2. Lower the rear window.
  3. Remove two screws securing rear glass, then remove rear glass.
  4. Remove two bolts and one top screw securing rear door center sash, then remove rear door center sash.
  5. Remove quarter glass and rubber seal.
