Schematic (Without Power Door Locks)

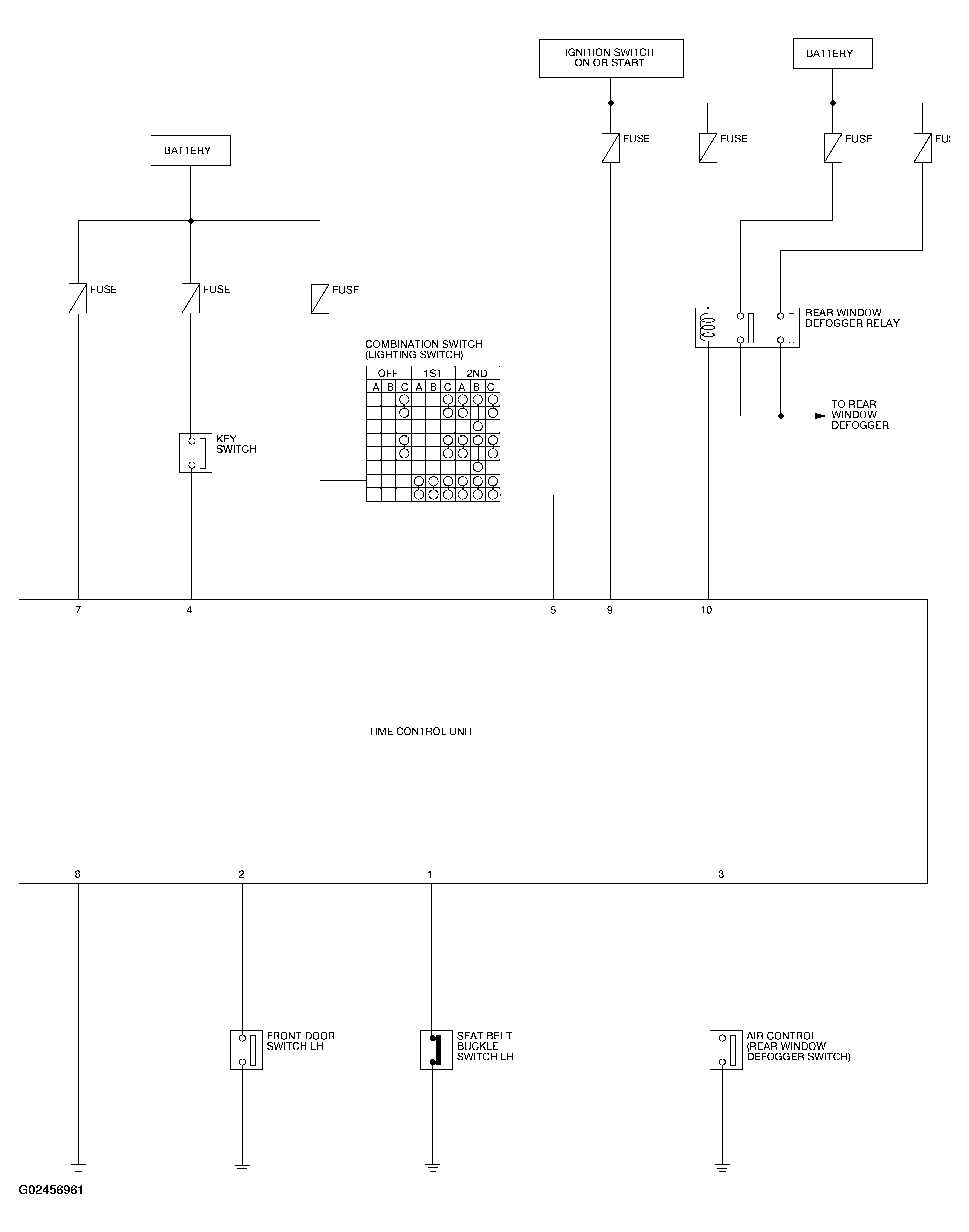

Fig 1: Schematic Diagram - Time Control Unit (Without Power Door Locks)
G02456961Courtesy of NISSAN MOTOR CO., U.S.A.
