Diagnostic Items Application
Diagnostic Items Application

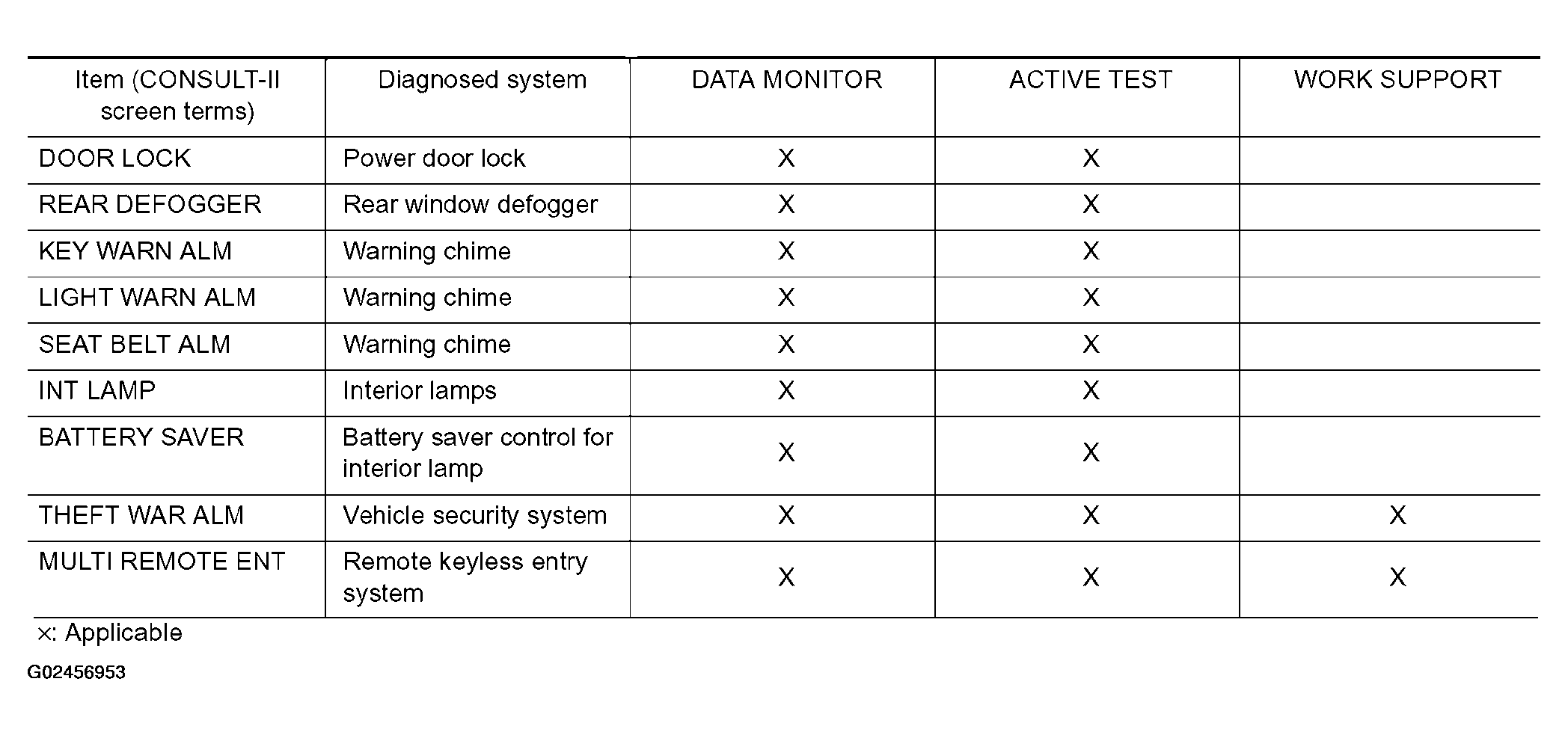

Fig 1: CONSULT-II Diagnostic Items Application Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
