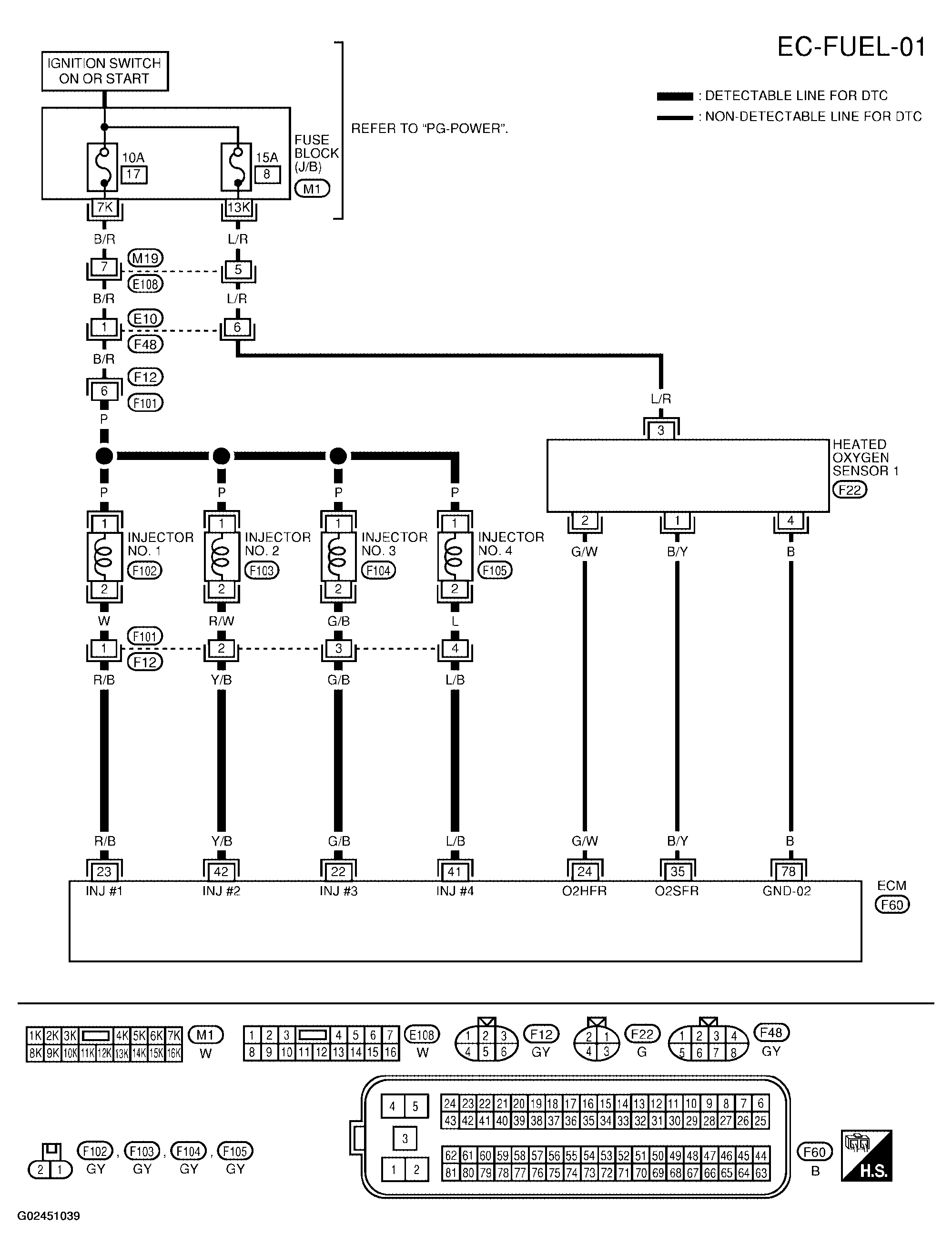

Home >> Nissan-Datsun >> 2005 >> Sentra SE-R >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System - DTCS U1000 To P0335 (Qr25DE) >> DTC P0172: Fuel Injection System Function >> Wiring Diagram >> A/T Models ULEV And M/T Models
