A/T Models ULEV And M/T Models

This self-diagnosis has the one trip detection logic.

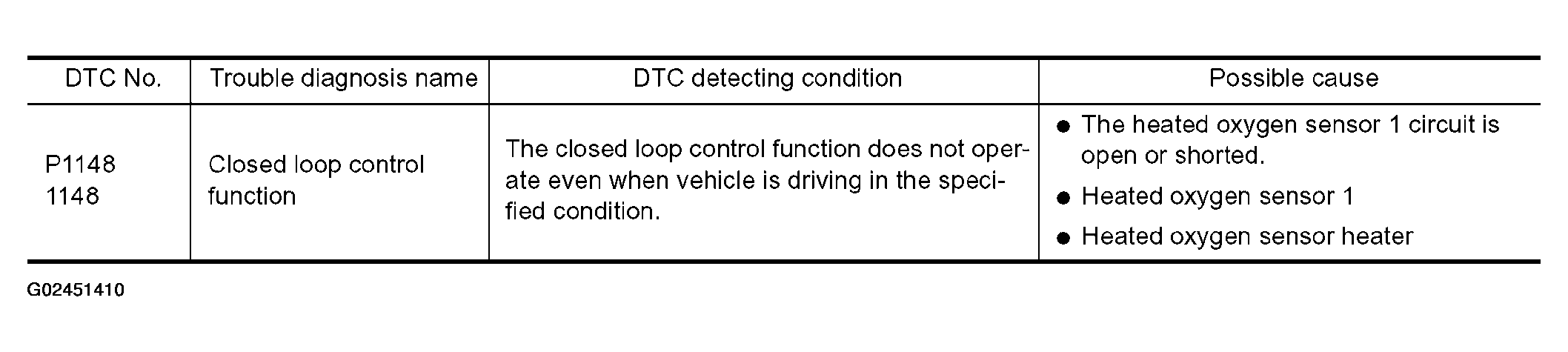

Fig 1: DTC P1148: Problem Detection/Possible Cause Chart (A/T Models ULEV And M/T Models)
G02451410Courtesy of NISSAN MOTOR CO., U.S.A.
