CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

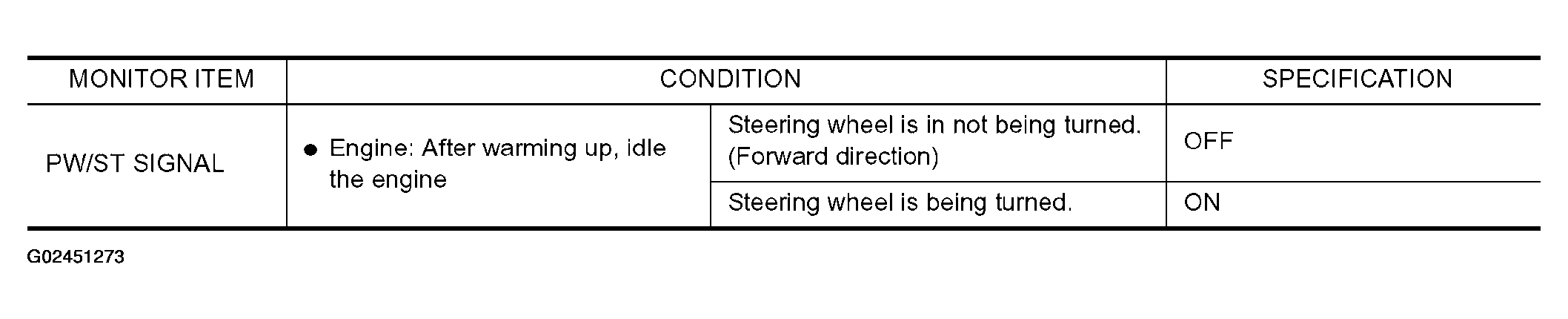

Fig 1: CONSULT-II Reference Value In Data Monitor Mode - Power Steering Pressure (PSP) Sensor
G02451273Courtesy of NISSAN MOTOR CO., U.S.A.
