A/T Models ULEV And M/T Models

The ECM monitors the switching frequency ratio of heated oxygen sensor 1 and 2.

A three way catalyst (manifold) with high oxygen storage capacity will indicate a low switching frequency of heated oxygen sensor 2.

As oxygen storage capacity decreases, the heated oxygen sensor 2 switching frequency will increase.

When the frequency ratio of heated oxygen sensor 1 and 2 approaches a specified limit value, the three way catalyst (manifold) malfunction is diagnosed.

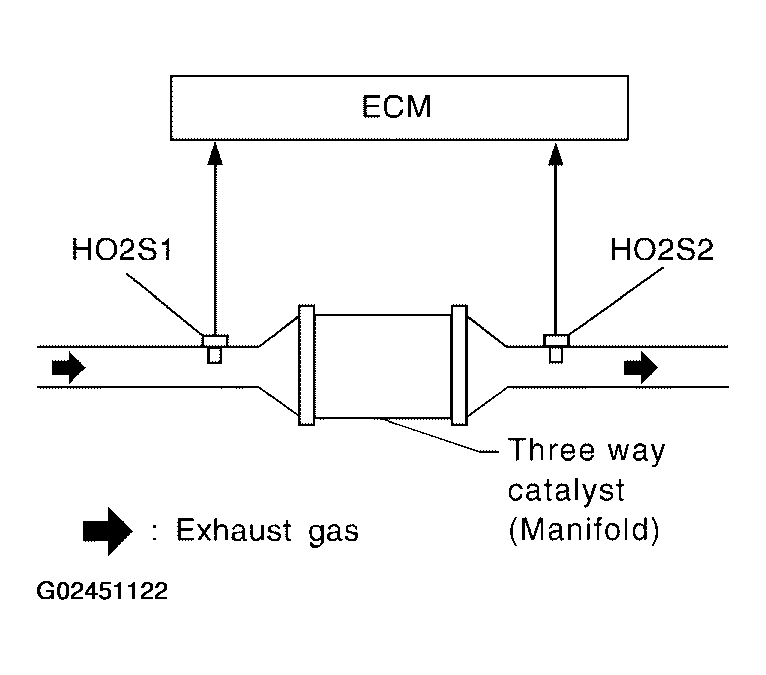

Fig 1: Identifying Three Way Catalyst Function

Courtesy of NISSAN MOTOR CO., U.S.A.

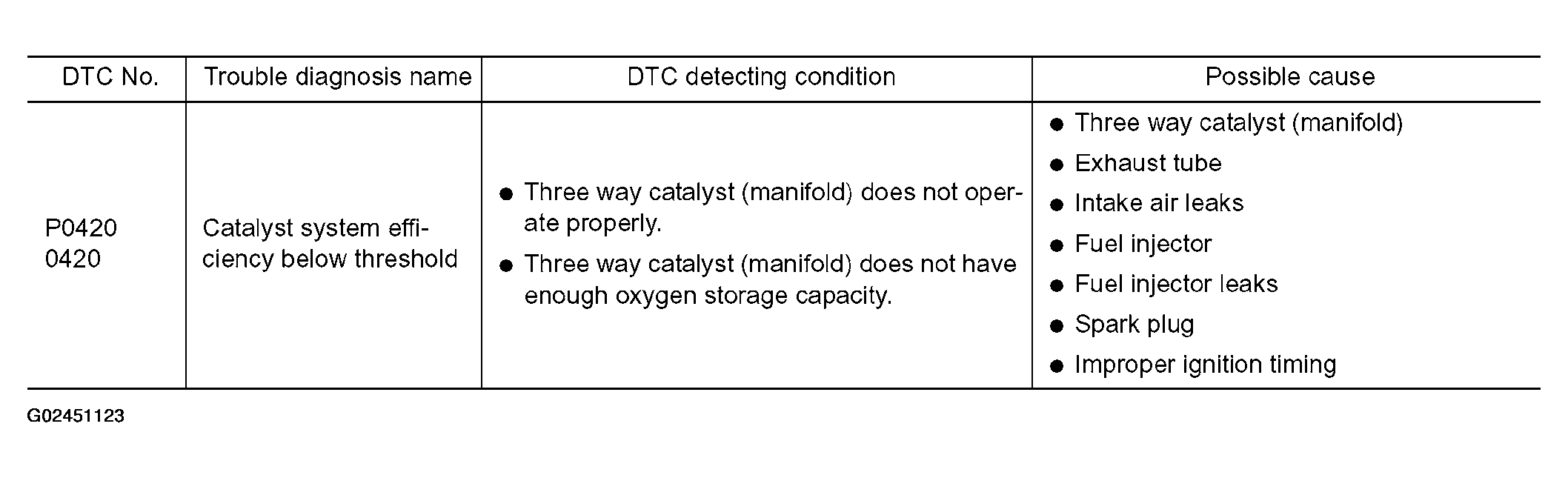

Fig 2: DTC P0420: Condition Detecting Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
