Removal and Installation: Installation

Installation is the reverse order of removal.

• When installing the transaxle to the engine, use them specified tightening torque in the numerical sequence as shown.
  CAUTION: When installing the transaxle, do not allow the transaxle input shaft to make contact with the clutch cover.

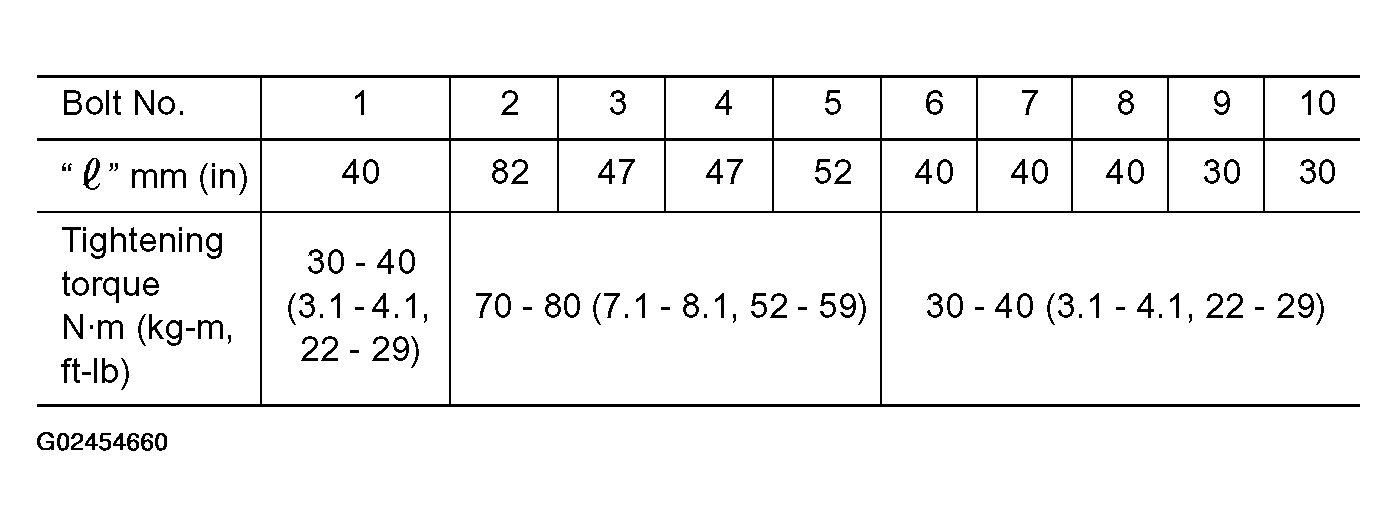

  Fig 1: Tightening Torque Specification Chart

  Courtesy of NISSAN MOTOR CO., U.S.A.
• After installation, check the transaxle oil level. Refer to CHECKING .
• After installation, check for any leaks and any loose mechanisms.

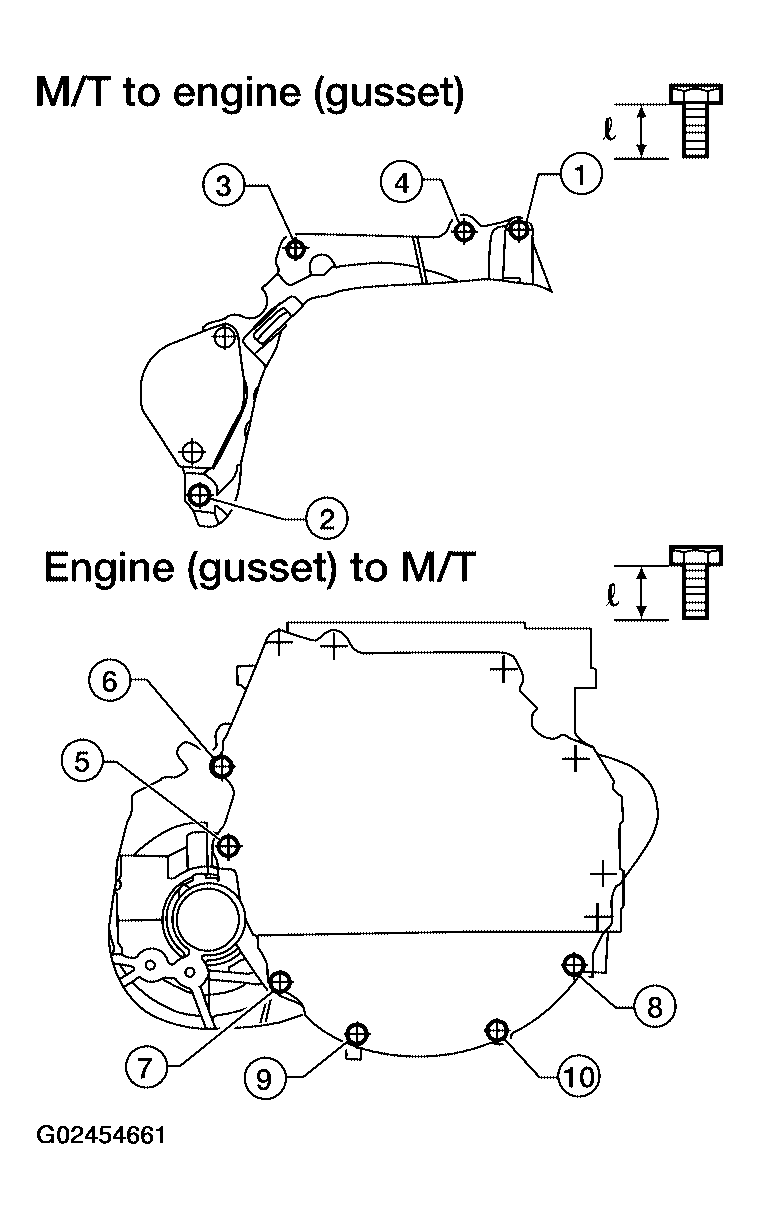

  Fig 2: Identifying Tightening Sequence

  Courtesy of NISSAN MOTOR CO., U.S.A.
