Gear Components

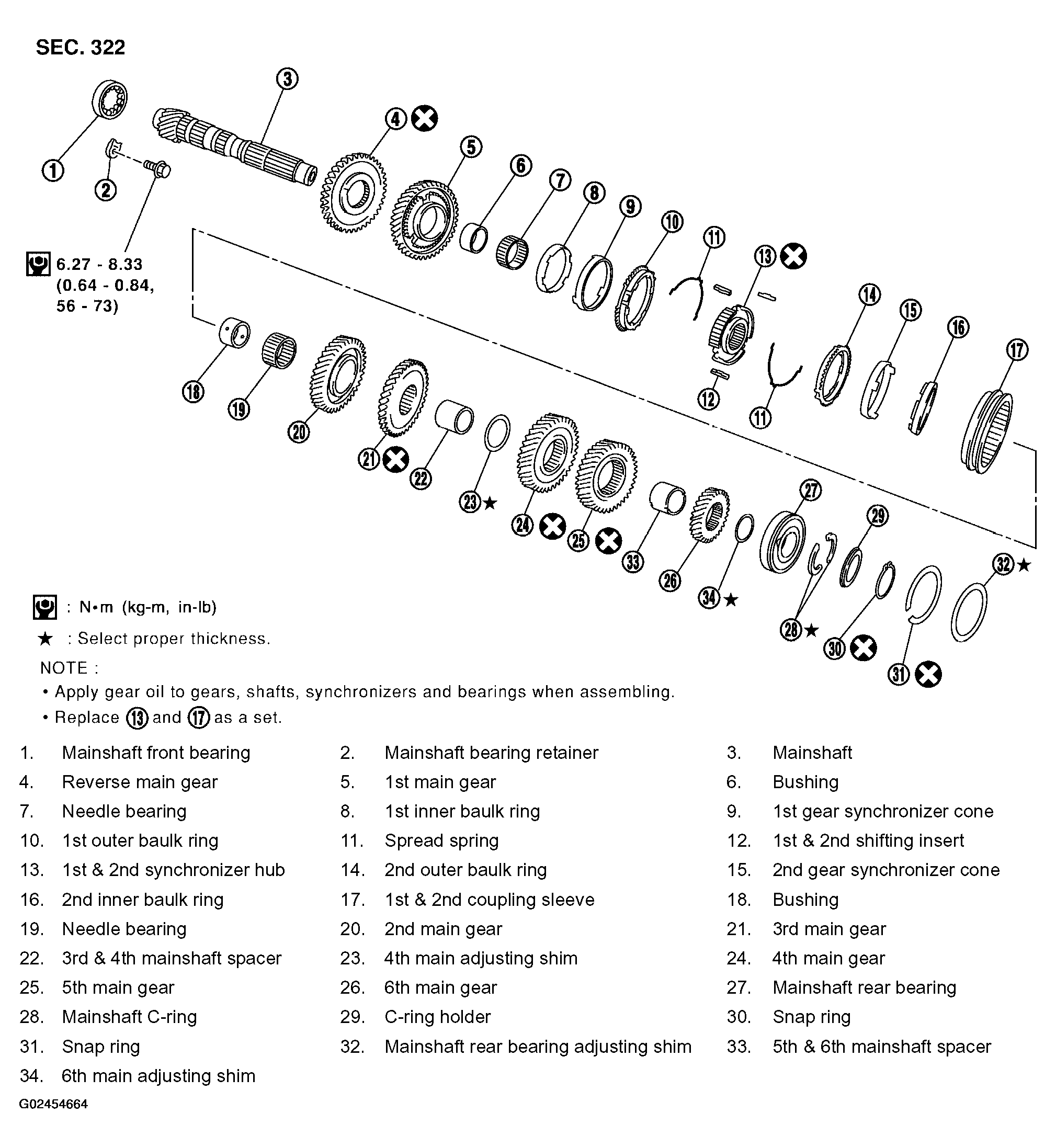

Fig 1: Exploded View Of Gear Components (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

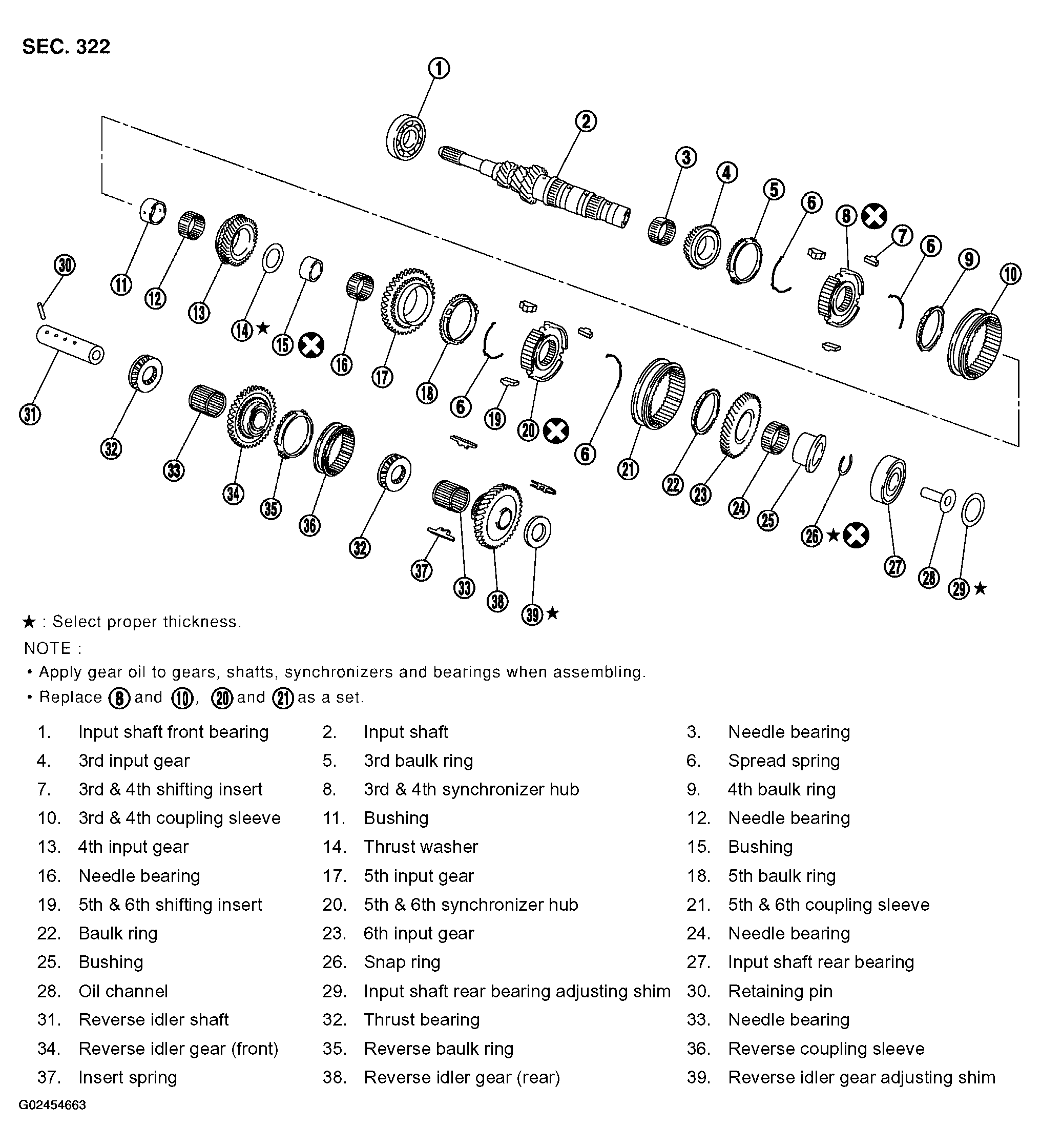

Fig 2: Exploded View Of Gear Components With Torque Specifications (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
