INPUTSHAFT End Play: Notes

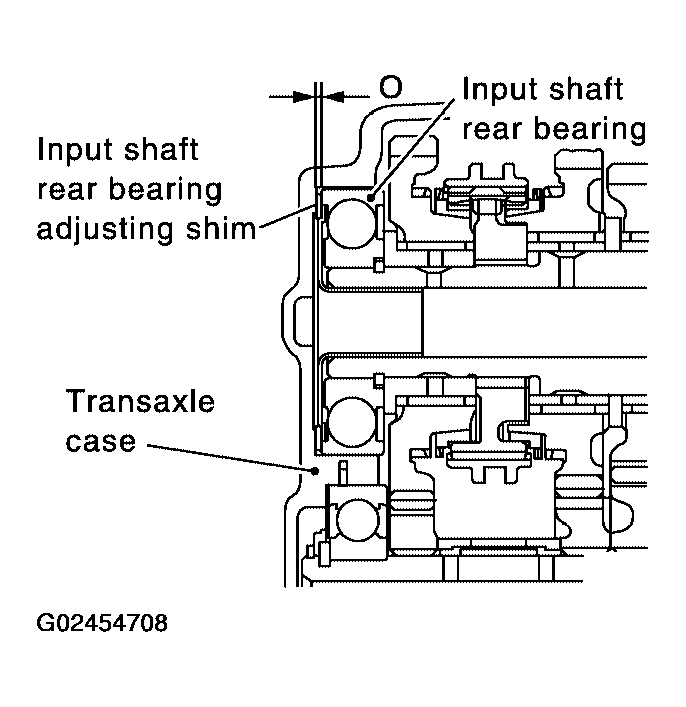

- When adjusting the input shaft end play, select the adjusting shim for the input shaft bearing. To select the correct thickness for the adjusting shim, measure the clearance between the transaxle case and input shaft rear bearing.
- Calculate the dimension "O" (thickness of adjusting shim) using the following steps to adjust the input shaft rear bearing for the specified end play.
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
Only 1 adjusting shim can be selected.
- End play : 0 - 0.06 mm (0 - 0.0024 in)
- Dimension "O" = ("O1
" - "O2
") + End play
- "O" : Thickness of adjusting shim.
- "O1
" : Distance between transaxle case end face and mounting face of adjusting shim.
- "O2
" : Distance between clutch housing case end face and end face of input shaft rear bearing.
