Manual Transmission (RS6F51H)
>>
Service Data And Specifications (SDS)
>>
Available Thrust Washers
>>
Input Shaft Thrust Washer
Input Shaft Thrust Washer

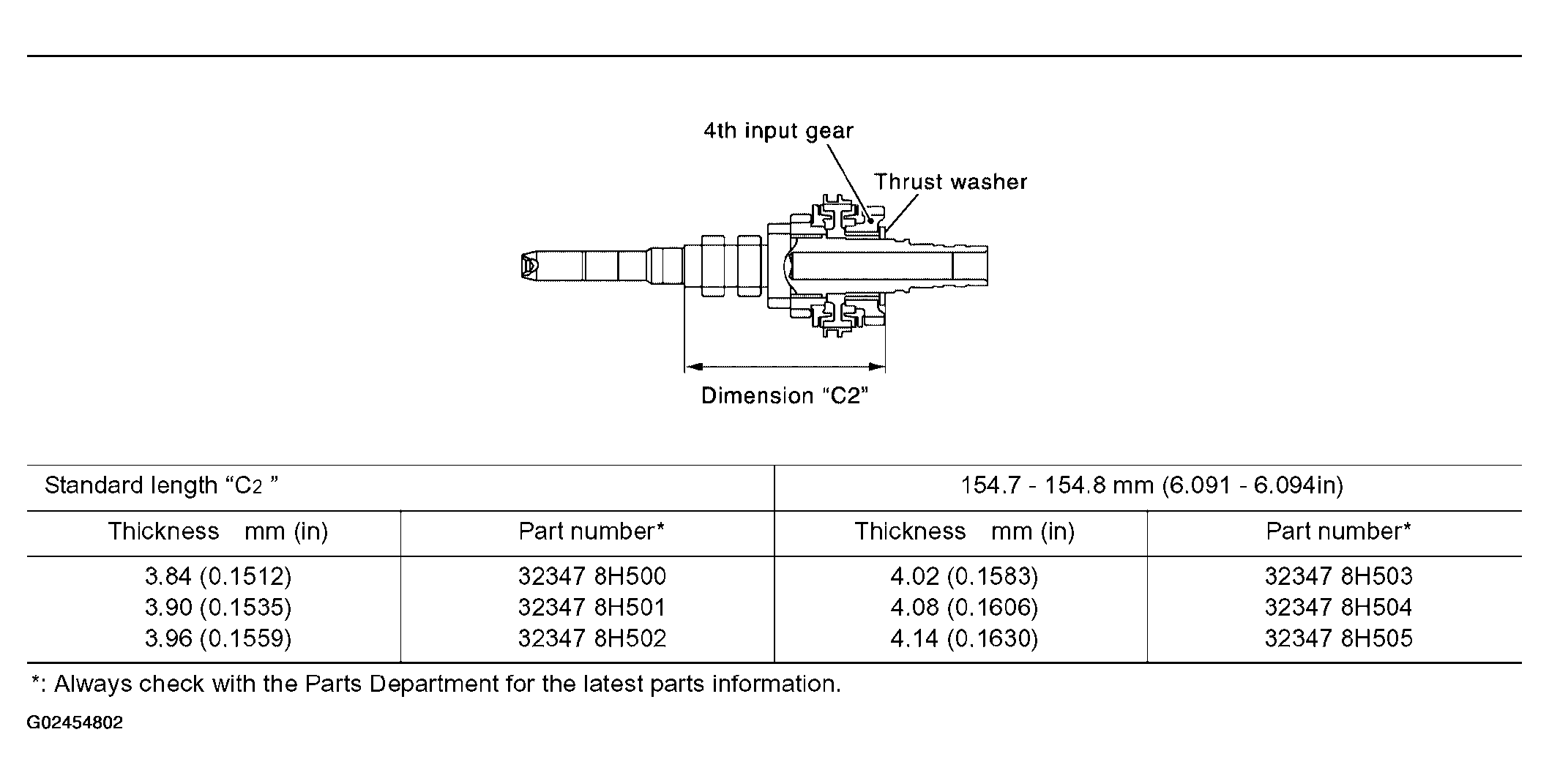

Fig 1: Input Shaft Thrust Washer Thickness Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
