Back-Up Lamp Switch

Check continuity.

CONTINUITY CONDITION

Gear position	Continuity
Reverse	Yes
Except reverse	No

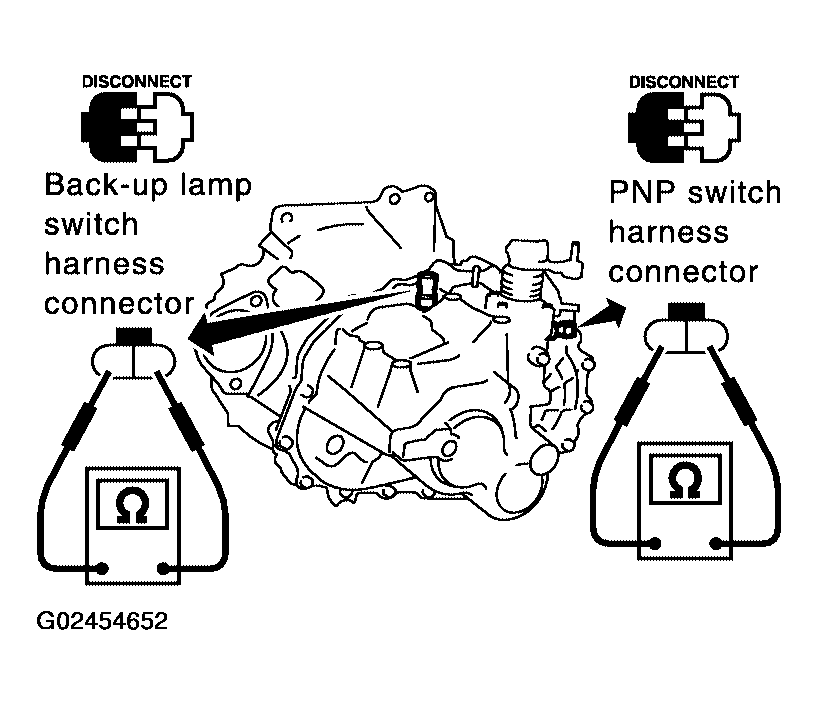

Fig 1: Checking Continuity Between Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.
