M/T Oil: Replacement: Filling

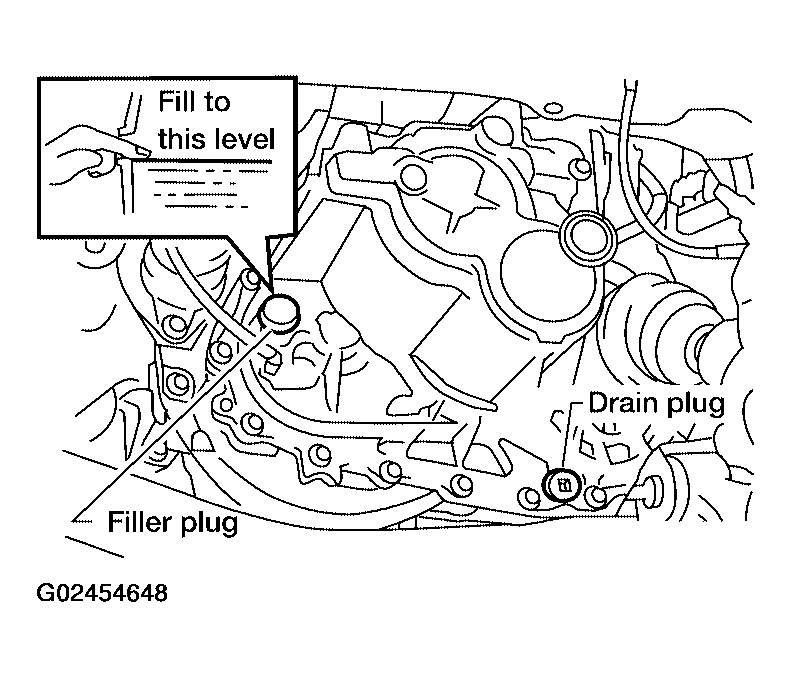

- Remove filler plug. Fill with new oil until oil level reaches the specified limit near filler plug mounting hole.
- Oil grade: API GL-4, Viscosity SAE 75W-85
- Capacity: 2.2 l (2 3/8 US qt, 2 Imp qt)
- (approximately)
- After refilling oil, check oil level. Assemble a new gasket on to filler plug, then install it in transaxle body.
- Filler plug: 30 - 39 N.m (3.1 - 4.0 kg-m, 23 - 28 ft-lb)
CAUTION: Do not reuse gasket.
