Disassembly and Assembly: Disassembly

  1. Remove the mounting bolts. Then, separate the final gear from the differential case.
  2. Remove the speedometer drive gear.
  3. Using a puller and Tool (drift), remove the differential side bearing (clutch housing side) as shown.

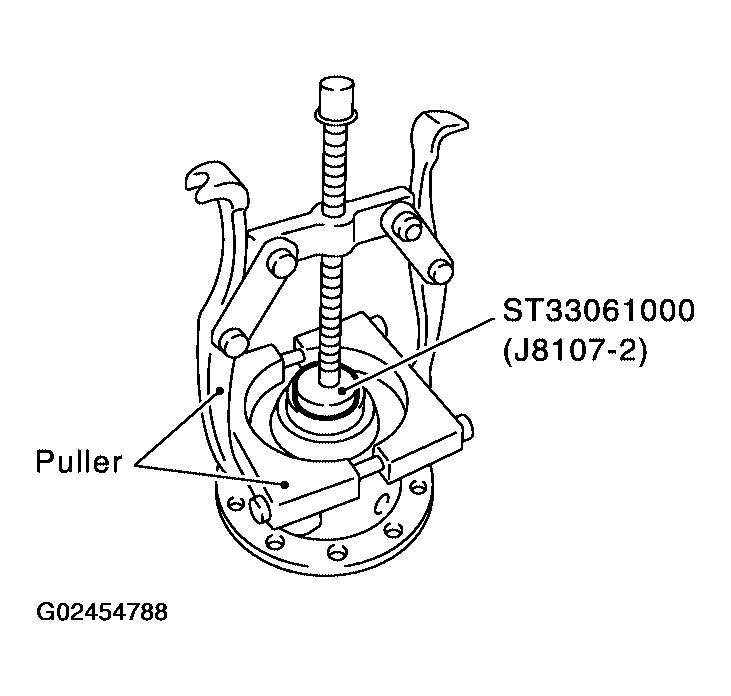

    Fig 1: Removing Differential Side Bearing (1 Of 2)
    G02454788Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Using a puller and Tool (drift), remove the differential side bearing (transaxle case side) as shown.

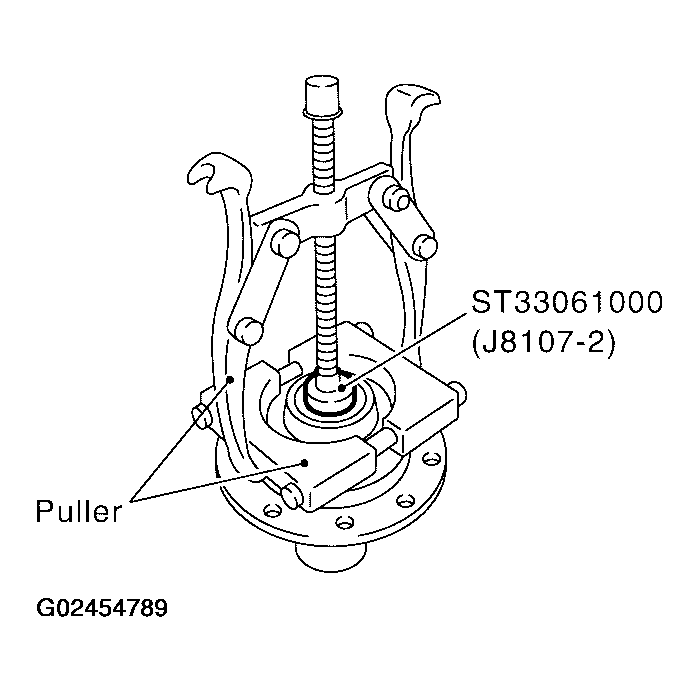

    Fig 2: Removing Differential Side Bearing (2 Of 2)
    G02454789Courtesy of NISSAN MOTOR CO., U.S.A.
