Triple-Cone Synchronizer

The 2nd gear is equipped with a triple-cone synchronizer to reduce the operating force of the control lever as shown.

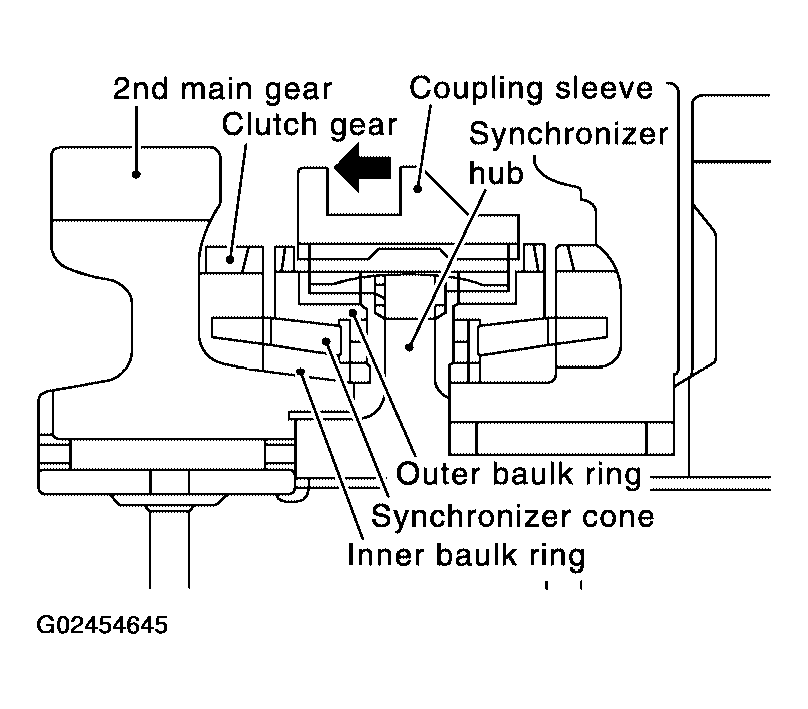

Fig 1: Components Description Triple-Cone Synchronizer
G02454645Courtesy of NISSAN MOTOR CO., U.S.A.
