Nissan-Datsun
>>
2005
>>
Sentra SE-R Spec V
>>
Repair and Diagnosis
>>
Transmission
>>
Manual Transmission (RS6F51H)
>>
Description
>>
Cross-Sectional View
>>
Notes
Cross-Sectional View: Notes

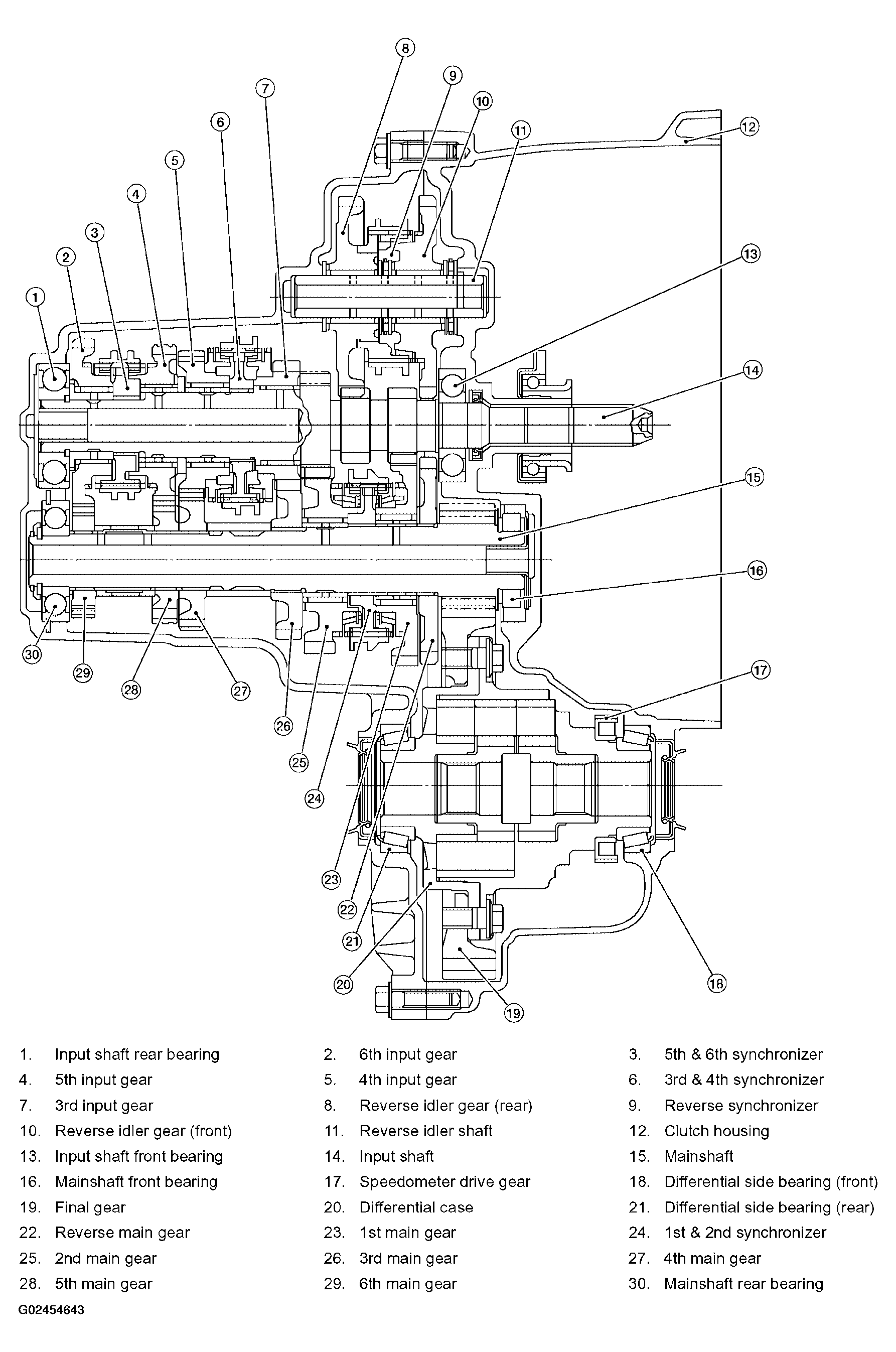

Fig 1: Cross-Sectional View Transmission
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
