Double-Cone Synchronizer

The 1st gear is equipped with a double-cone synchronizer to reduce the operating force of the shift lever as shown.

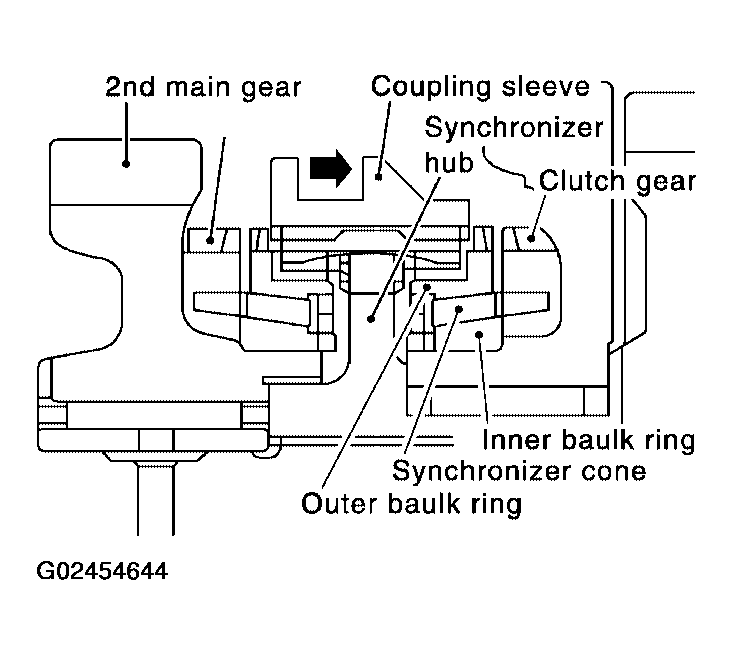

Fig 1: Components Description Double-Cone Synchronizer
G02454644Courtesy of NISSAN MOTOR CO., U.S.A.
