Removal and Installation of Control Device and Cable

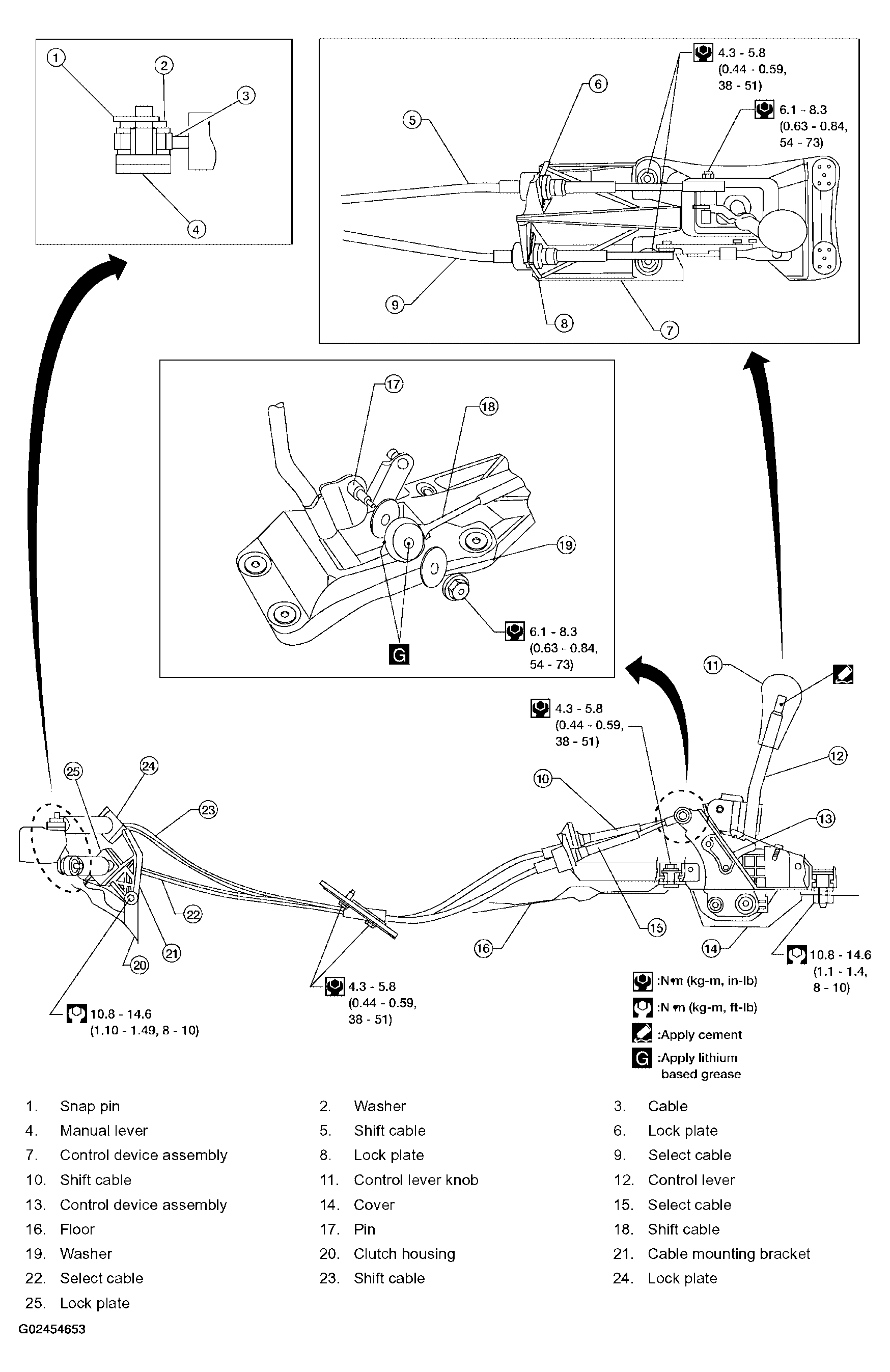

Fig 1: Removing/Installing Control Device And Cable With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

• Note that the select side lock plate for securing the control cable is different from the one on the shift side.
• After assembly, make sure selector lever automatically returns to Neutral when it is moved to 1st, 2nd, or Reverse.
