Removal and Installation: Installation

CAUTION:
  • Always work from the side of or under air bag module.
  1. Install front passenger air bag module on steering member.
    • Ensure harness is not caught between rear of air bag module and steering member.
  2. Install glove box assembly. (Glove box lid is open.)

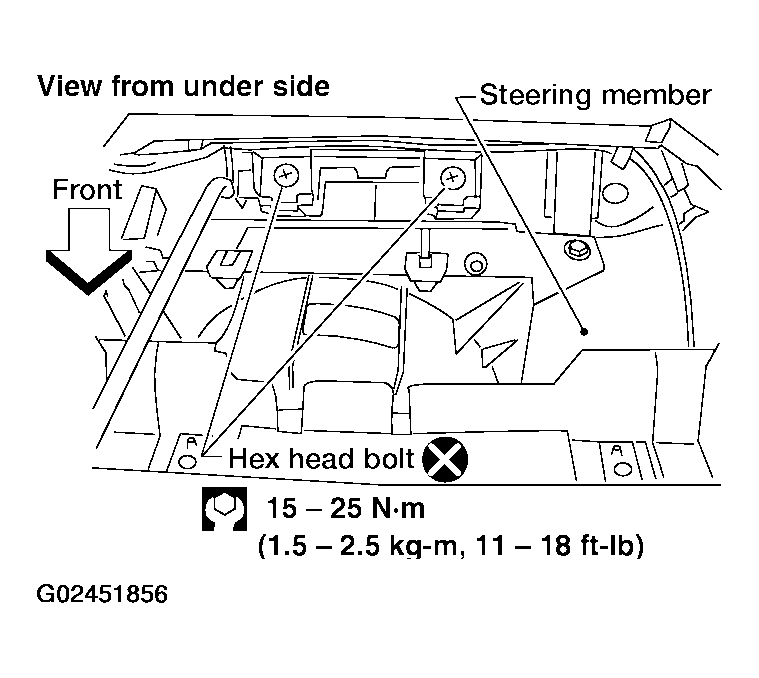

    Fig 1: Front Passenger Air Bag Module Bolt With Torque Specifications
    G02451856Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Connect front passenger air bag module connector to air bag harness connector.
  4. Close the glove box lid.
  5. Connect both battery cables.
  6. Go to SRS OPERATION CHECK  and perform self-diagnosis to ensure entire SRS operates properly. (Use CONSULT-II or warning lamp check.)
    Fig 2: Connecting Front Passenger Air Bag Module Connector To Air Bag Harness Connector With Torque Specifications
    G02451857Courtesy of NISSAN MOTOR CO., U.S.A.
