Disassembly and Assembly (Left Side): Notes

WARNING: This page is about a different car, the 2007 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

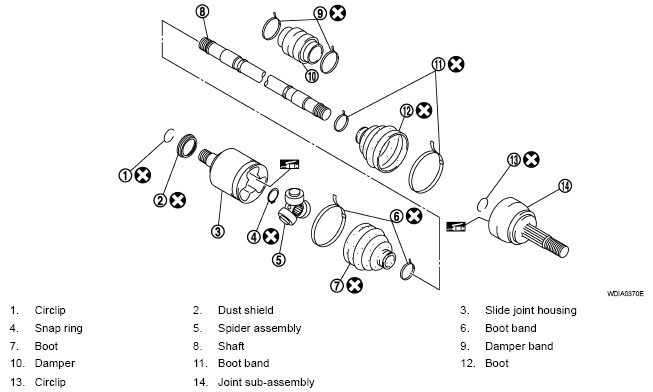

Fig 1: Identifying Drive Shaft Components Left Side
G04927165
