Engine Control System - Introduction (Qr25DE)
>>
Trouble Diagnosis - Specification Value
>>
Diagnostic Procedure (A/T Models except ULEV)
>>
Overall Sequence
Overall Sequence

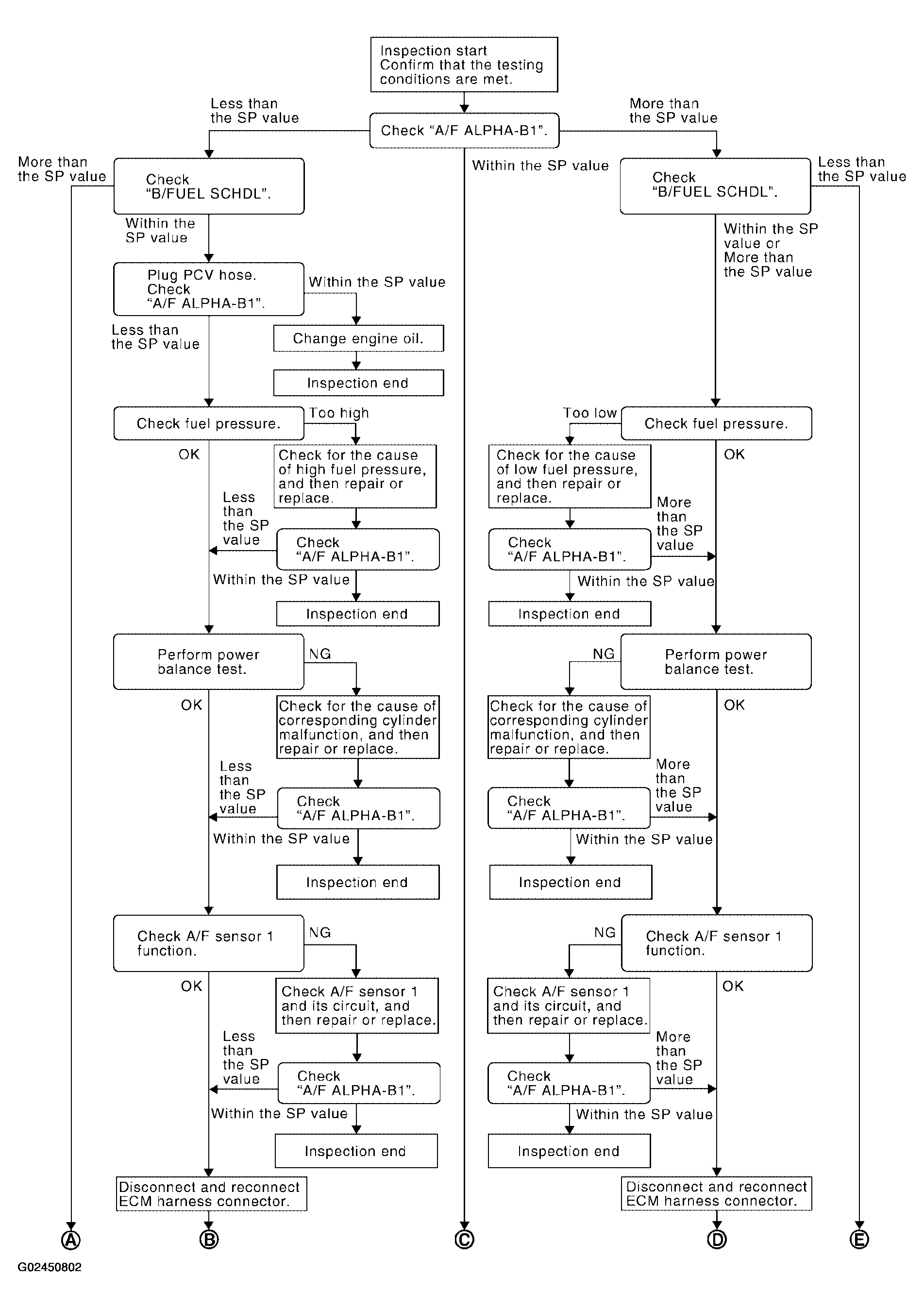

Fig 1: Diagnostic Procedure Flow Chart - A/T Models Except ULEV (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

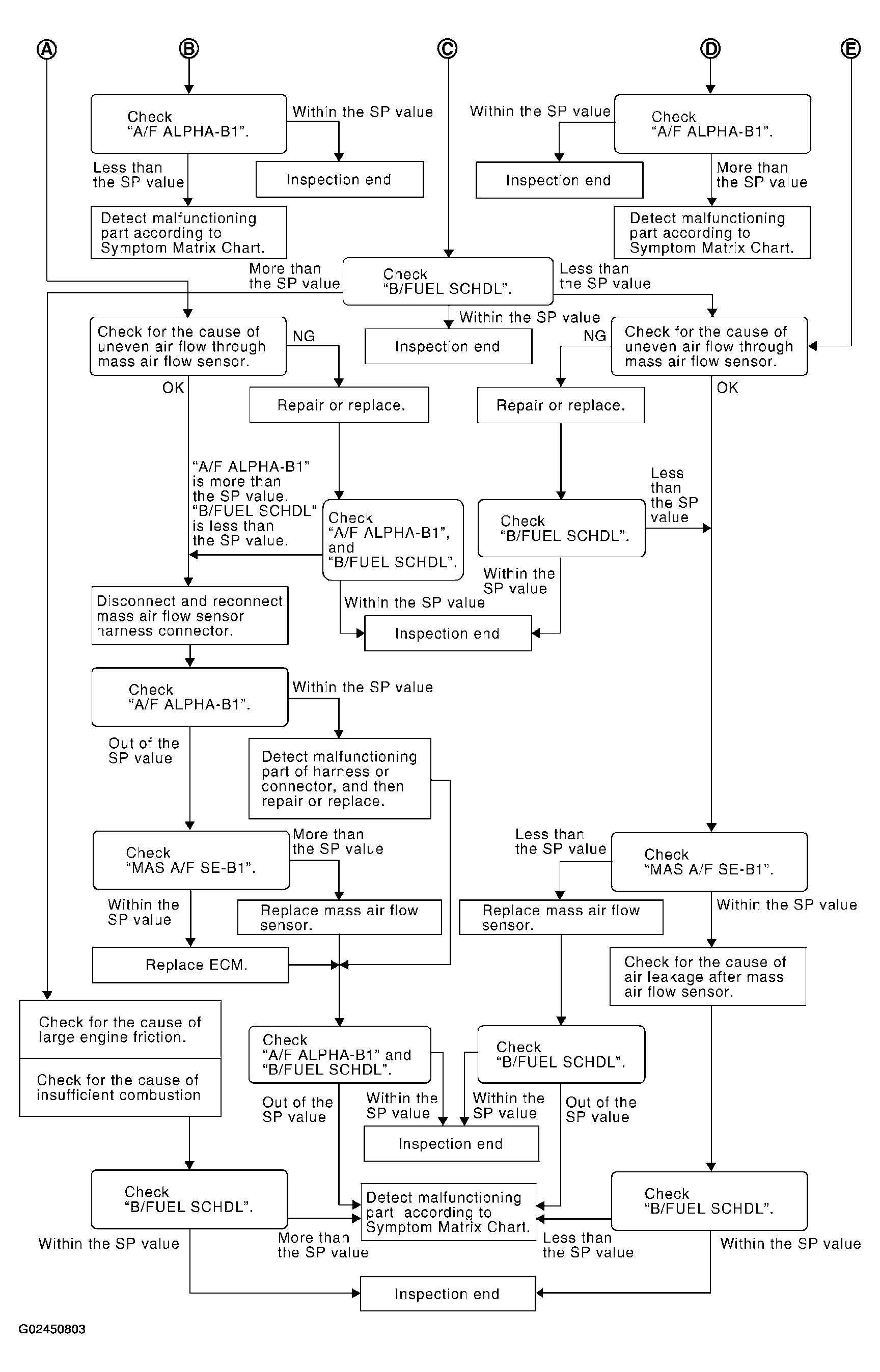

Fig 2: Diagnostic Procedure Flow Chart - A/T Models Except ULEV (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
