A/T Models ULEV and M/T Models

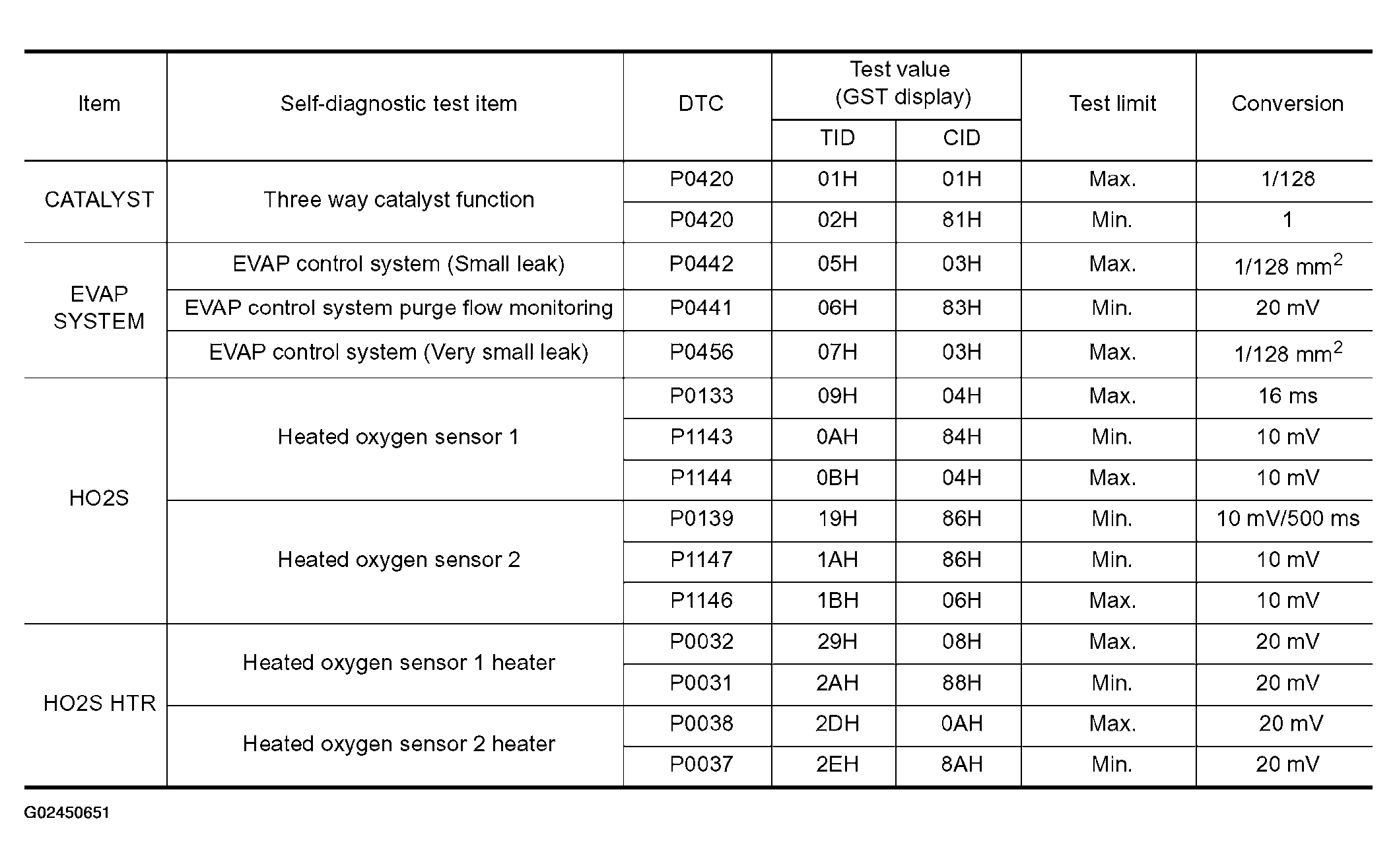

Fig 1: Test Value And Test Limit Chart (A/T Models ULEV And M/T Models)
G02450651Courtesy of NISSAN MOTOR CO., U.S.A.
