Valve Spring

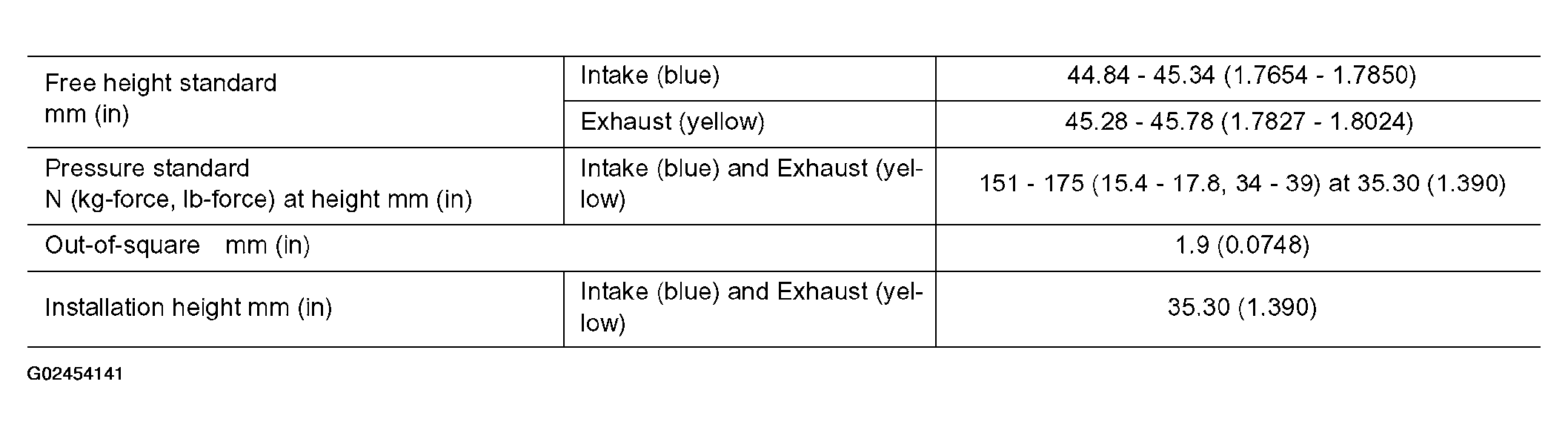

Fig 1: Valve Spring Standard & Limit Chart (1 Of 2)

G02454141

Courtesy of NISSAN MOTOR CO., U.S.A.

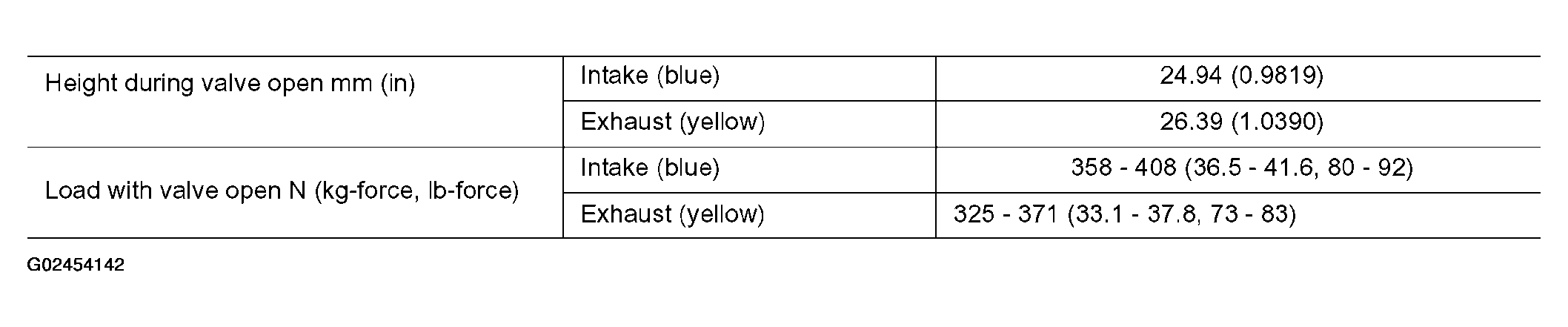

Fig 2: Valve Spring Standard & Limit Chart (2 Of 2)

G02454142

Courtesy of NISSAN MOTOR CO., U.S.A.
