Disassembly and Assembly: Notes

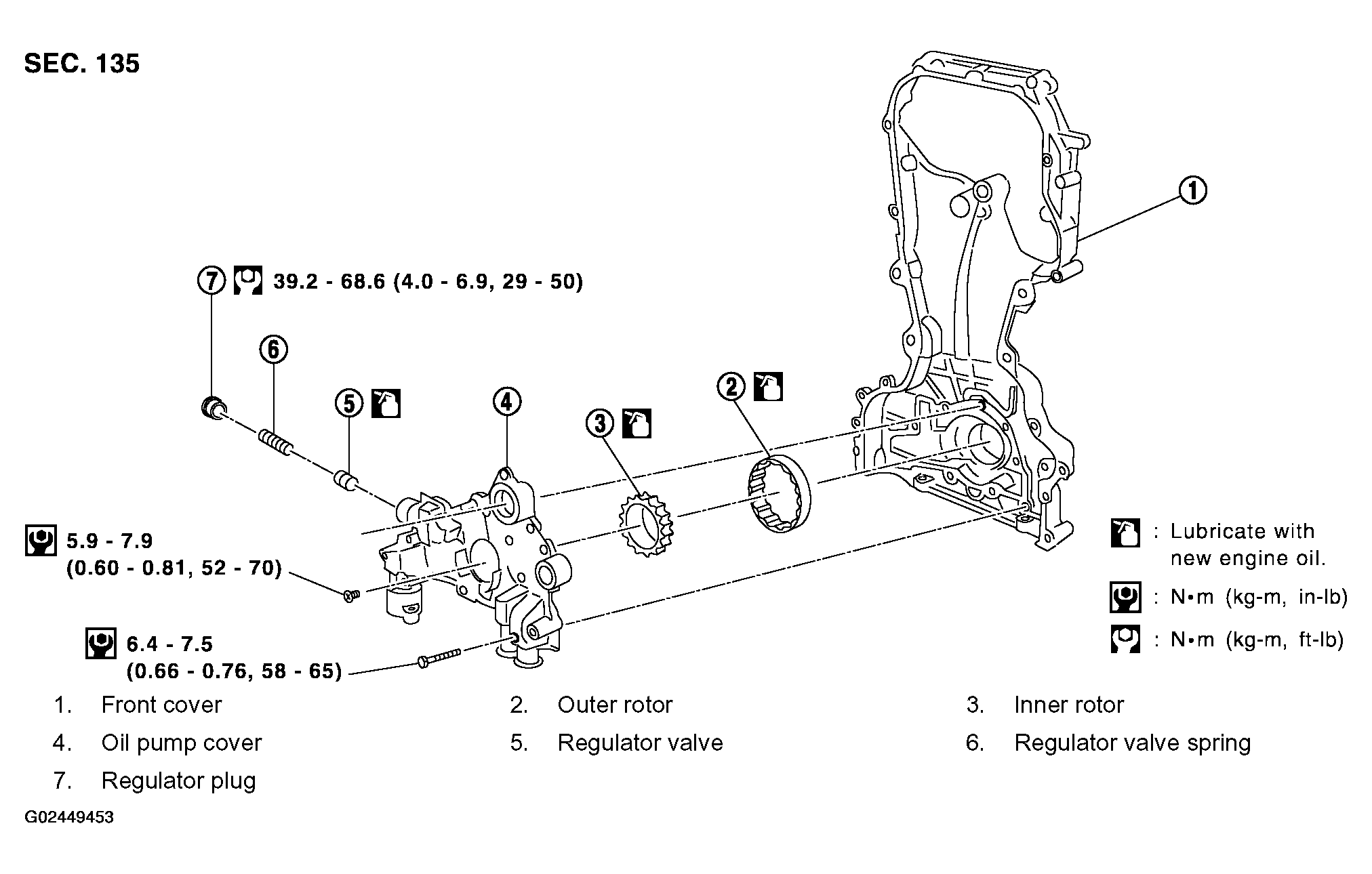

Fig 1: Removing/Installing Oil Pump With Torque Specifications
G02449453Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Before installation, apply new engine oil to the parts as instructed in the figure.
