CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

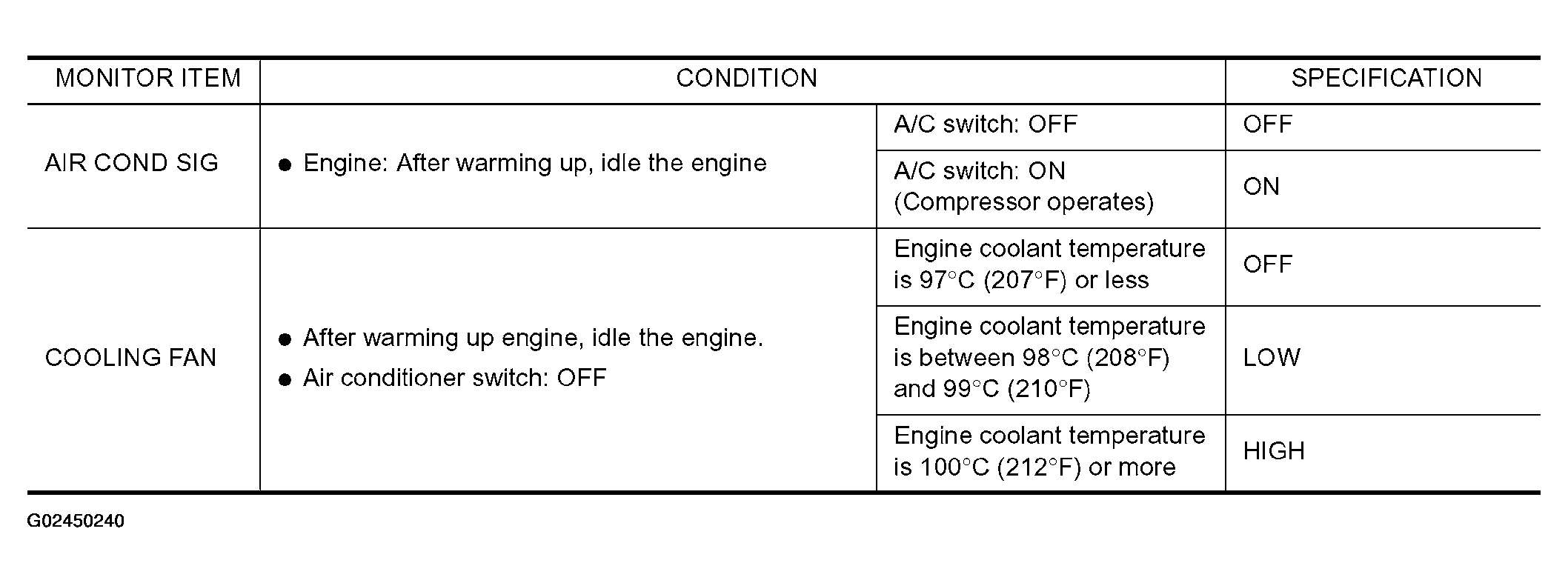

Fig 1: CONSULT-II Data Monitor Specification Chart - Engine Coolant Fan

G02450240

Courtesy of NISSAN MOTOR CO., U.S.A.
