DTC P1217: Engine Over Temperature
>>
System Description
>>
Operation
System Description: Operation

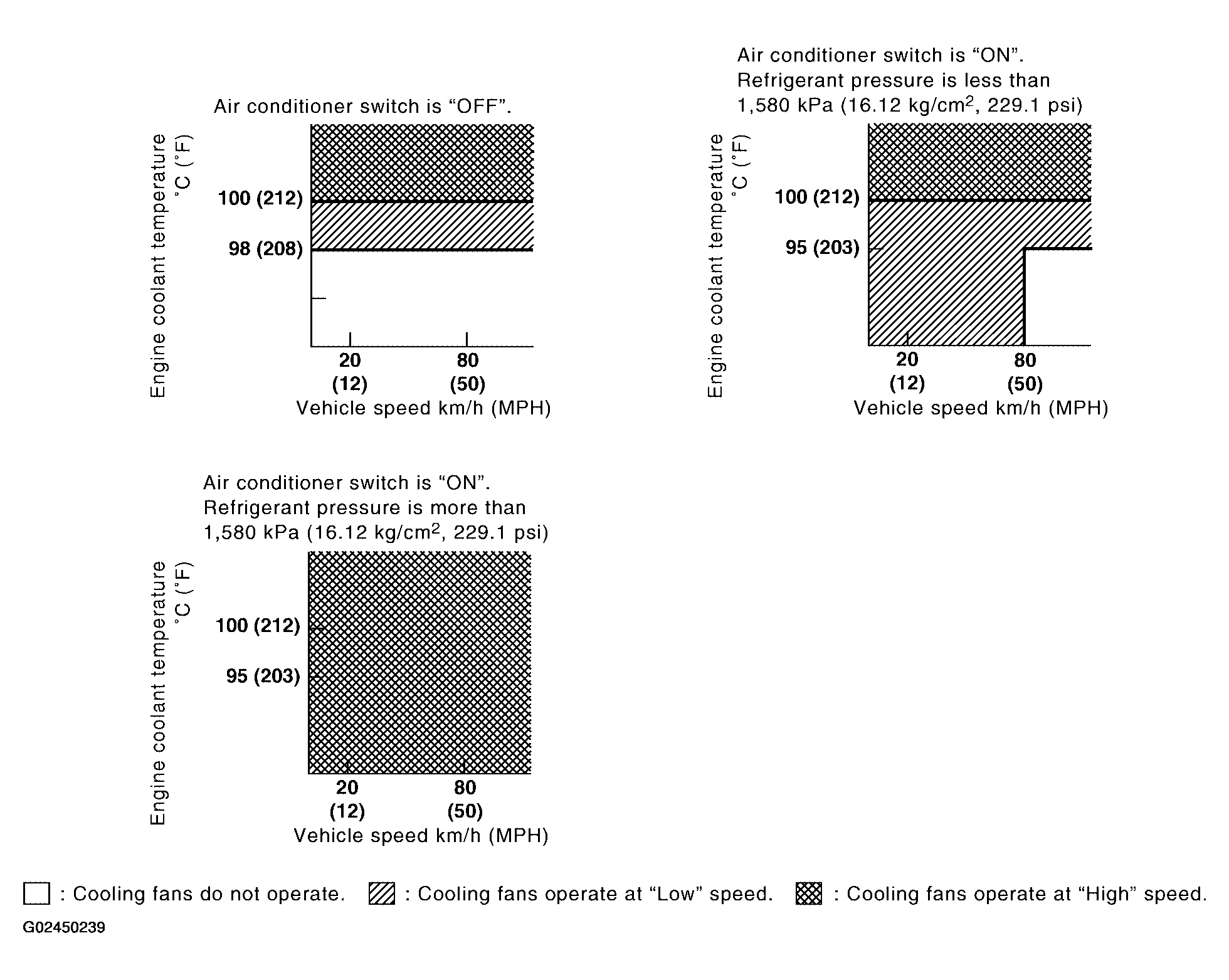

Fig 1: Engine Coolant Fan Control Based On Coolant Temperature, Vehicle Speed & A/C Operation
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
