ECM Inspection Table

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

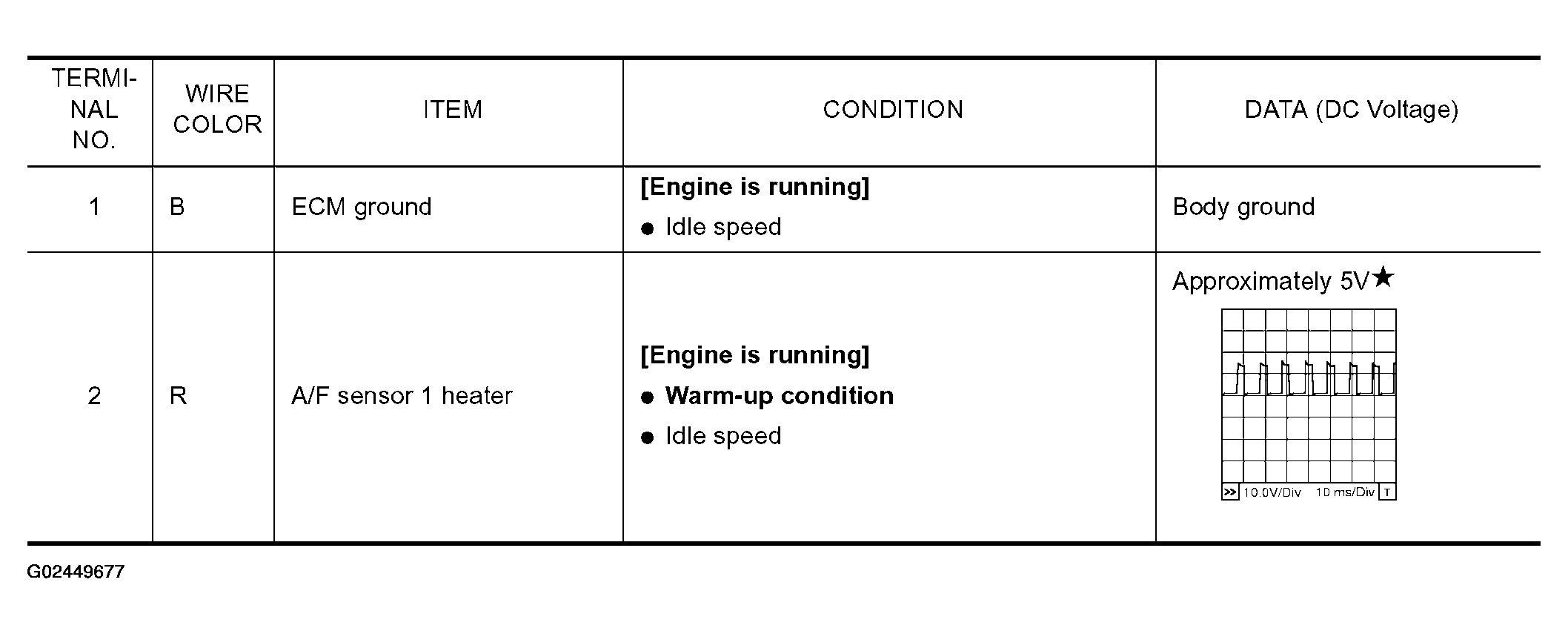

Fig 1: ECM Terminal Identification & Signal Identification (1 Of 8)

G02449677

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: ECM Terminal Identification & Signal Identification (2 Of 8)

G02449678

Courtesy of NISSAN MOTOR CO., U.S.A.

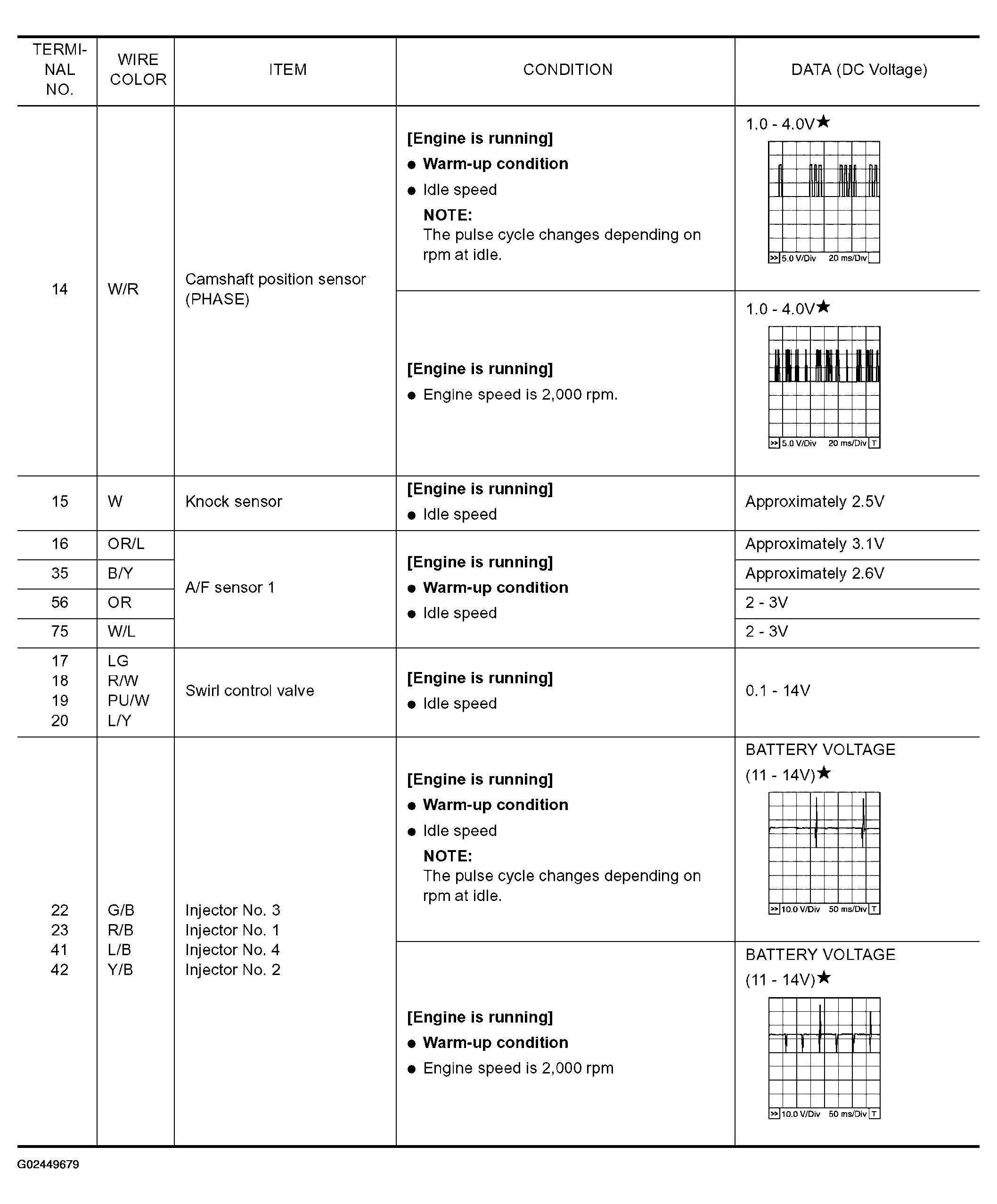

Fig 3: ECM Terminal Identification & Signal Identification (3 Of 8)

G02449679

Courtesy of NISSAN MOTOR CO., U.S.A.

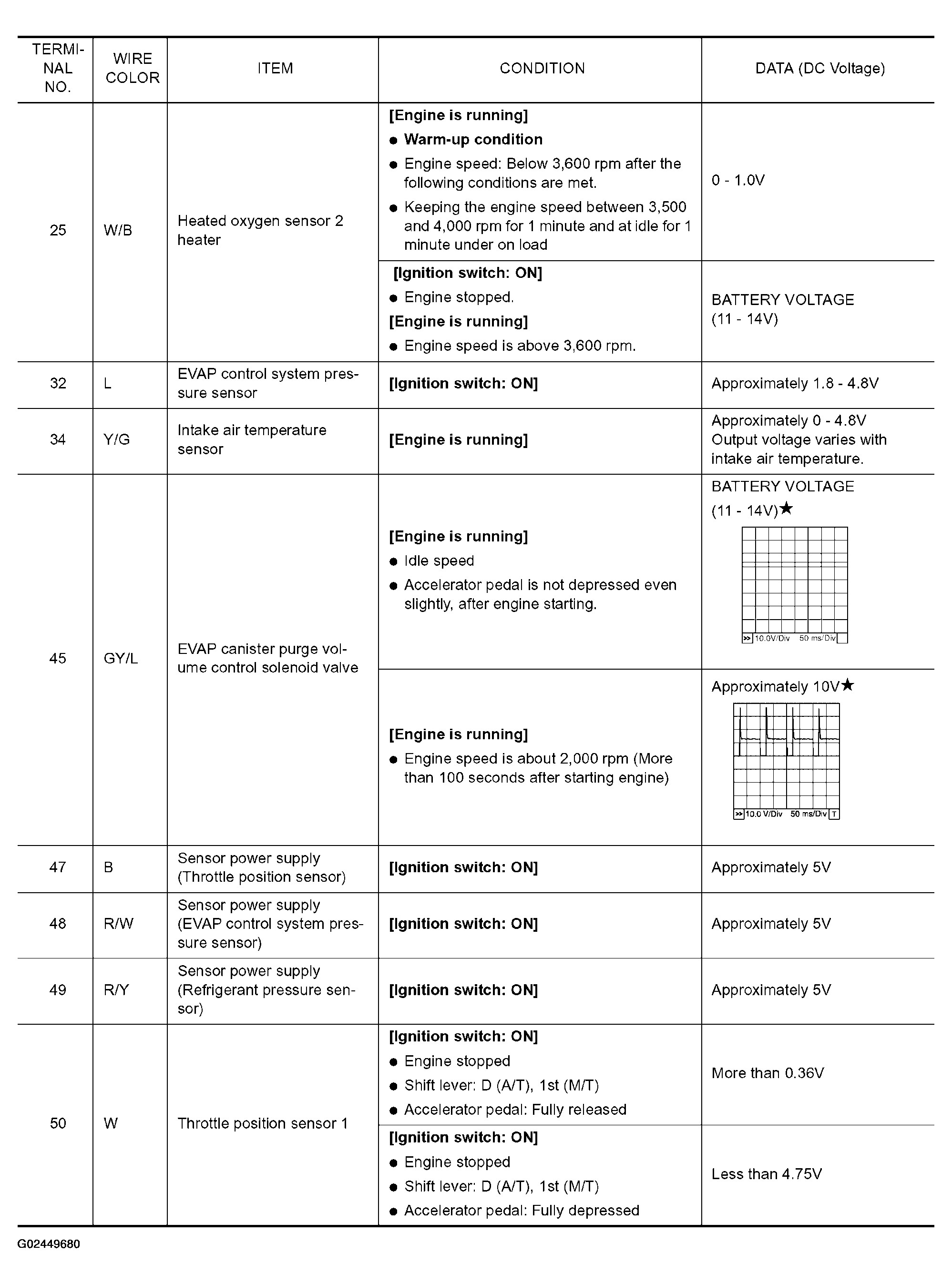

Fig 4: ECM Terminal Identification & Signal Identification (4 Of 8)

G02449680

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: ECM Terminal Identification & Signal Identification (5 Of 8)

G02449681

Courtesy of NISSAN MOTOR CO., U.S.A.

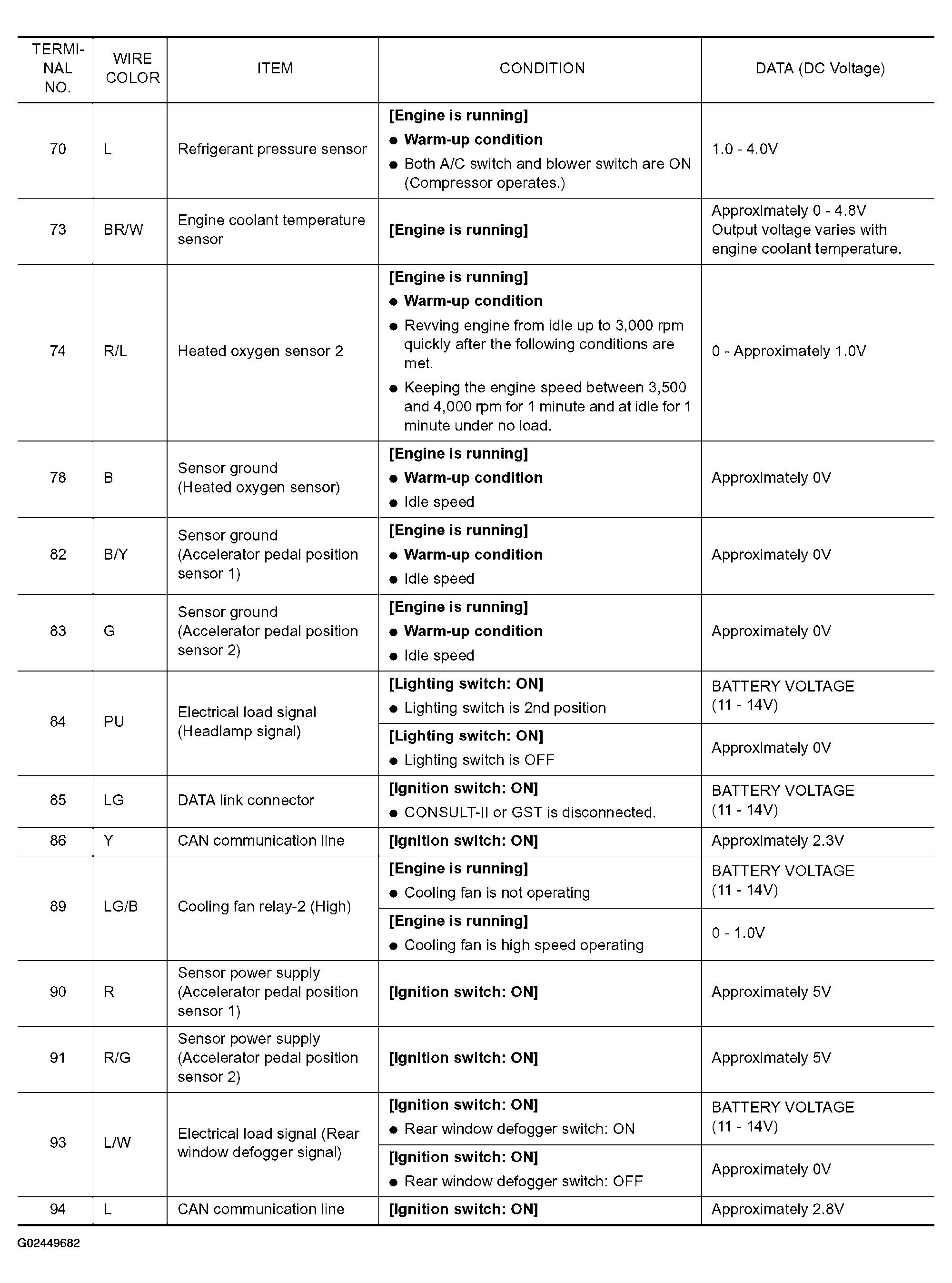

Fig 6: ECM Terminal Identification & Signal Identification (6 Of 8)

G02449682

Courtesy of NISSAN MOTOR CO., U.S.A.

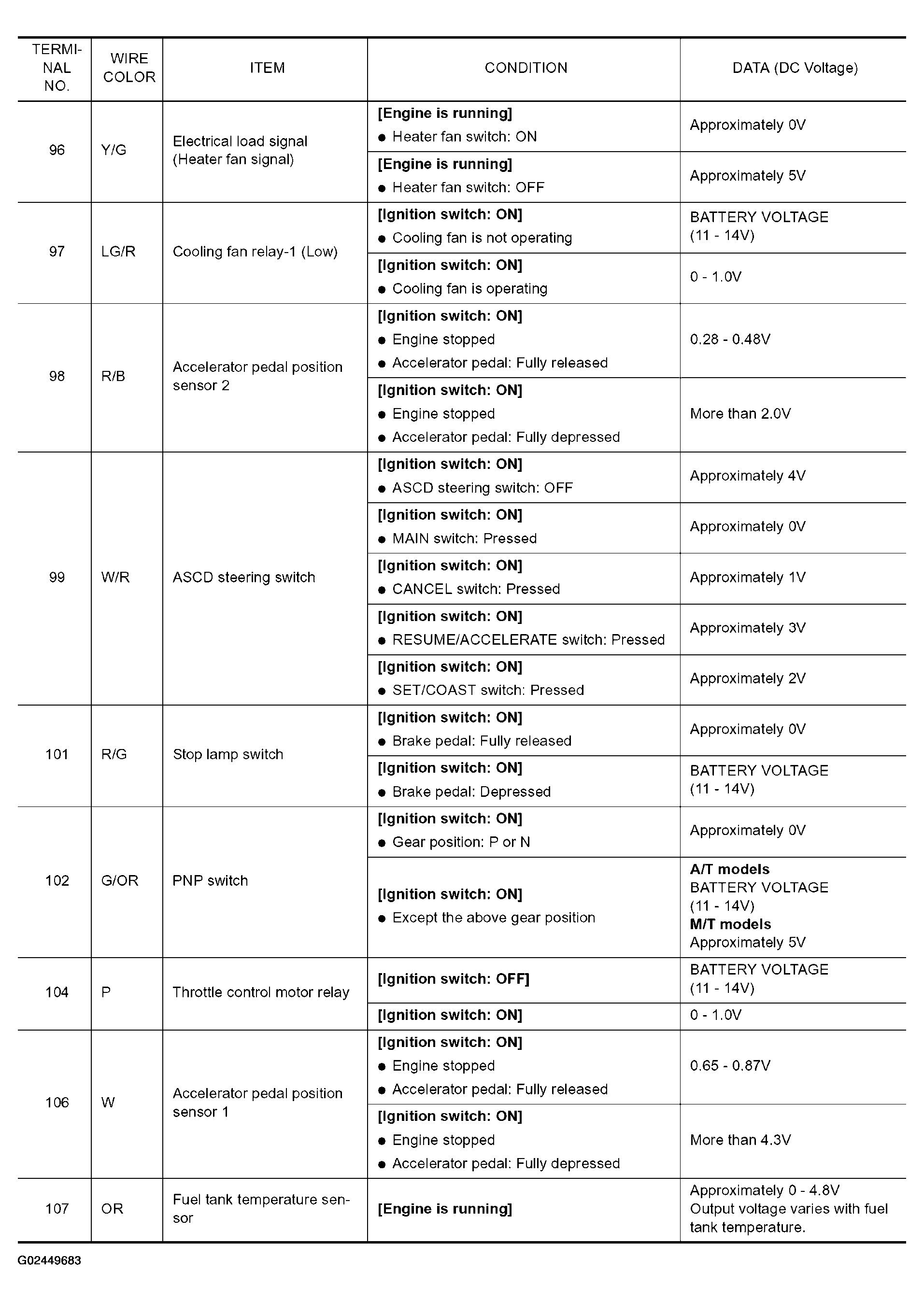

Fig 7: ECM Terminal Identification & Signal Identification (7 Of 8)

G02449683

Courtesy of NISSAN MOTOR CO., U.S.A.

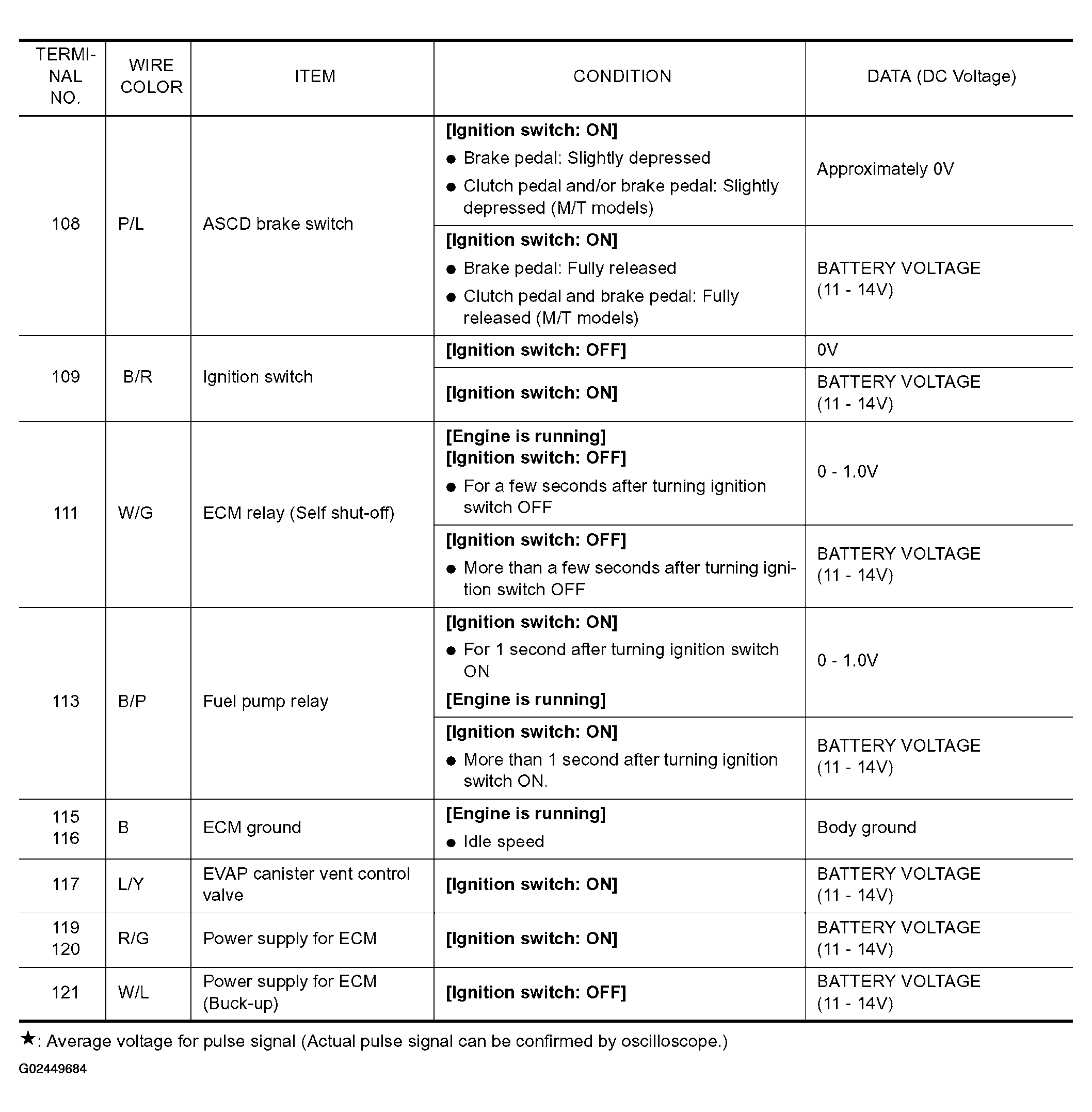

Fig 8: ECM Terminal Identification & Signal Identification (8 Of 8)

G02449684

Courtesy of NISSAN MOTOR CO., U.S.A.
