Engine Control System (QG18DE)
>>
Trouble Diagnosis
>>
Consult-II Function (Engine)
>>
Data Monitor Mode
>>
Monitored Item
Monitored Item

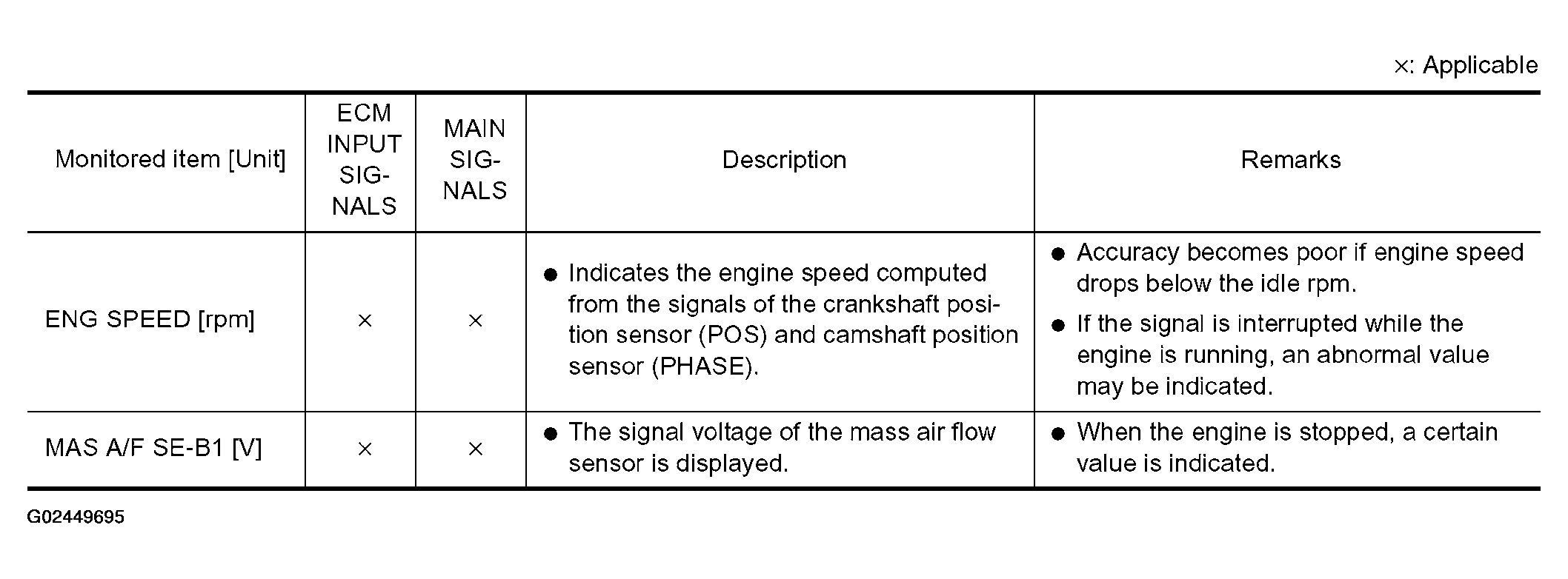

Fig 1: Data Monitor Mode Description Chart (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

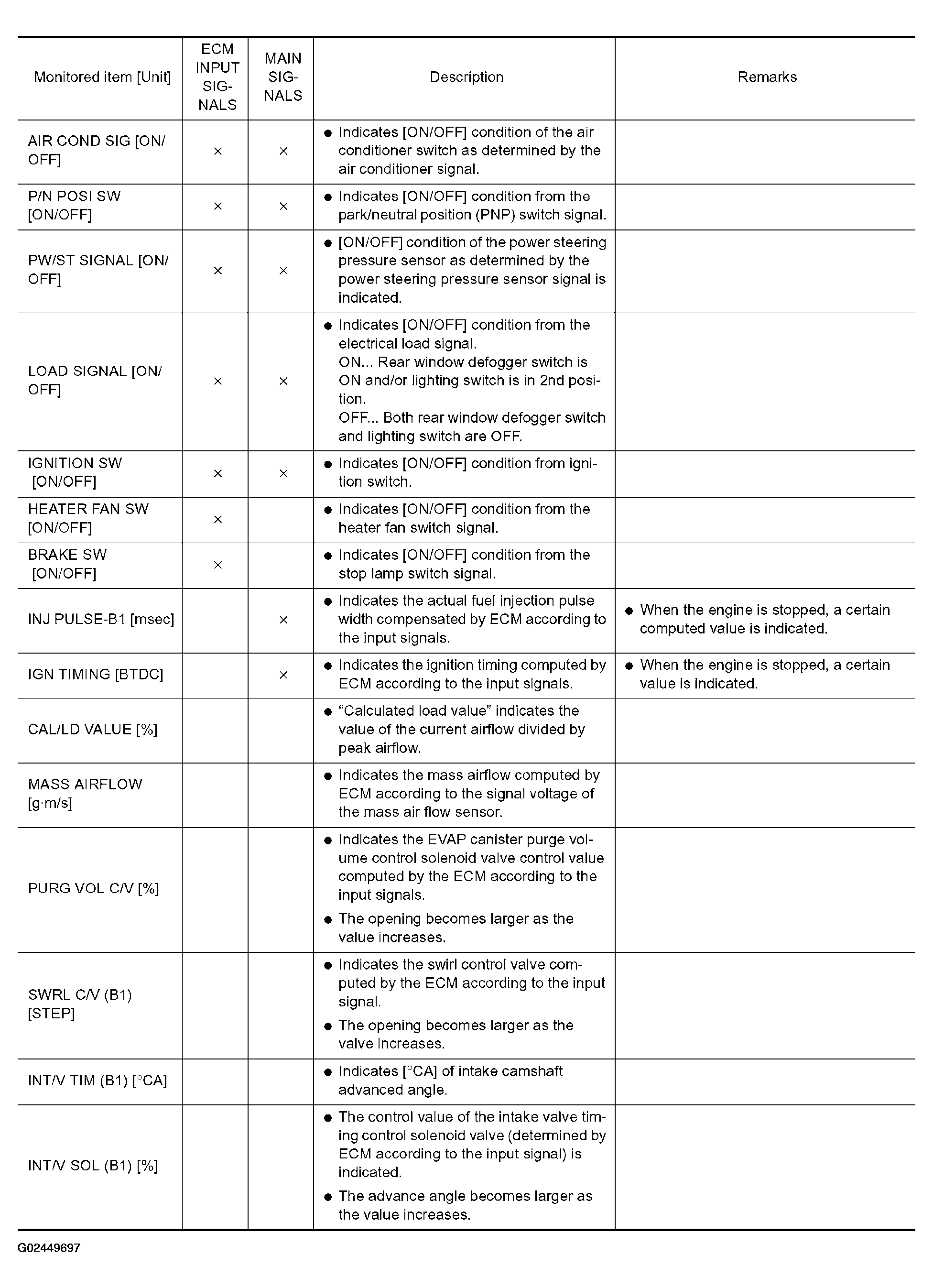

Fig 2: Data Monitor Mode Description Chart (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

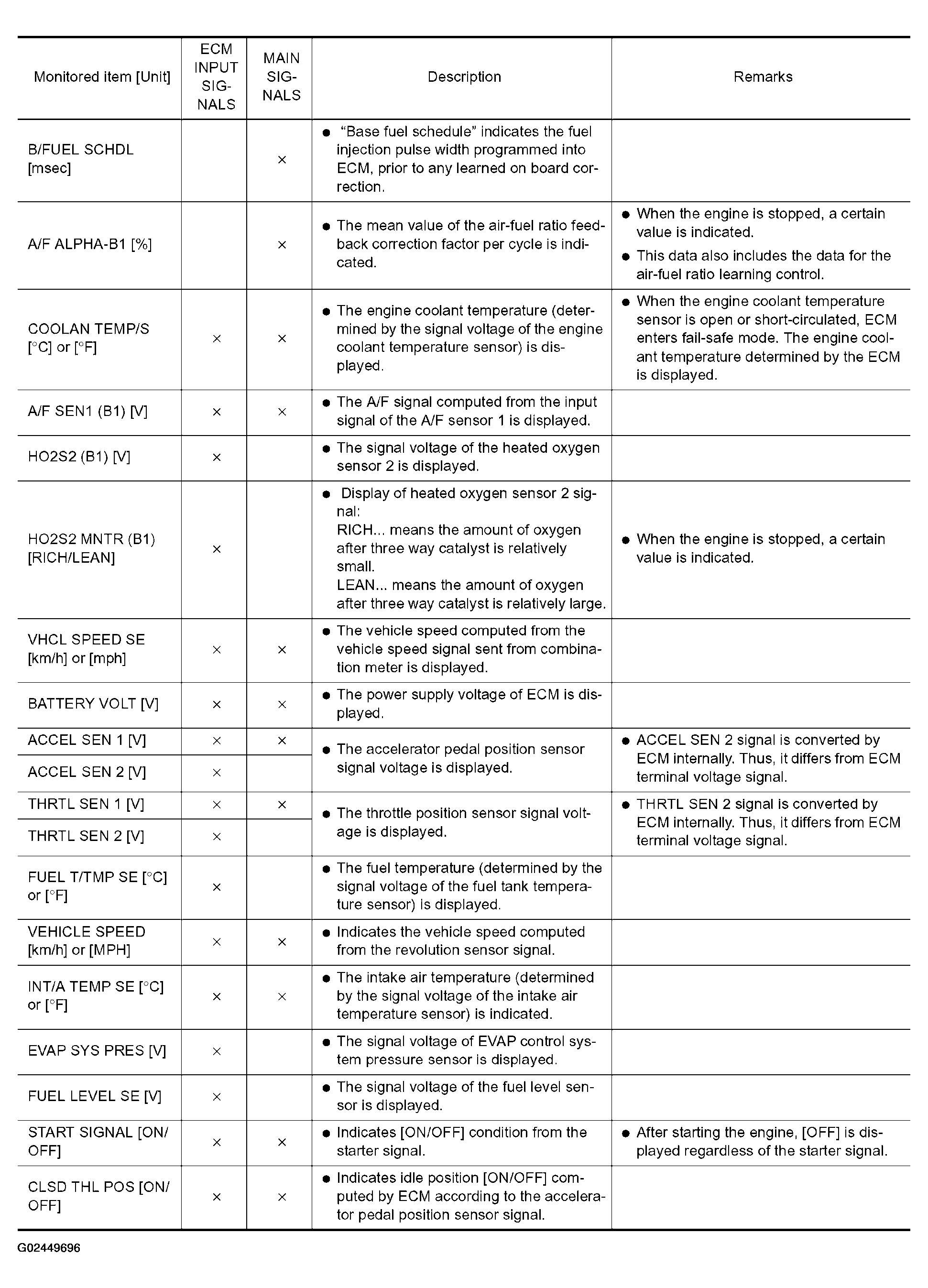

Fig 3: Data Monitor Mode Description Chart (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

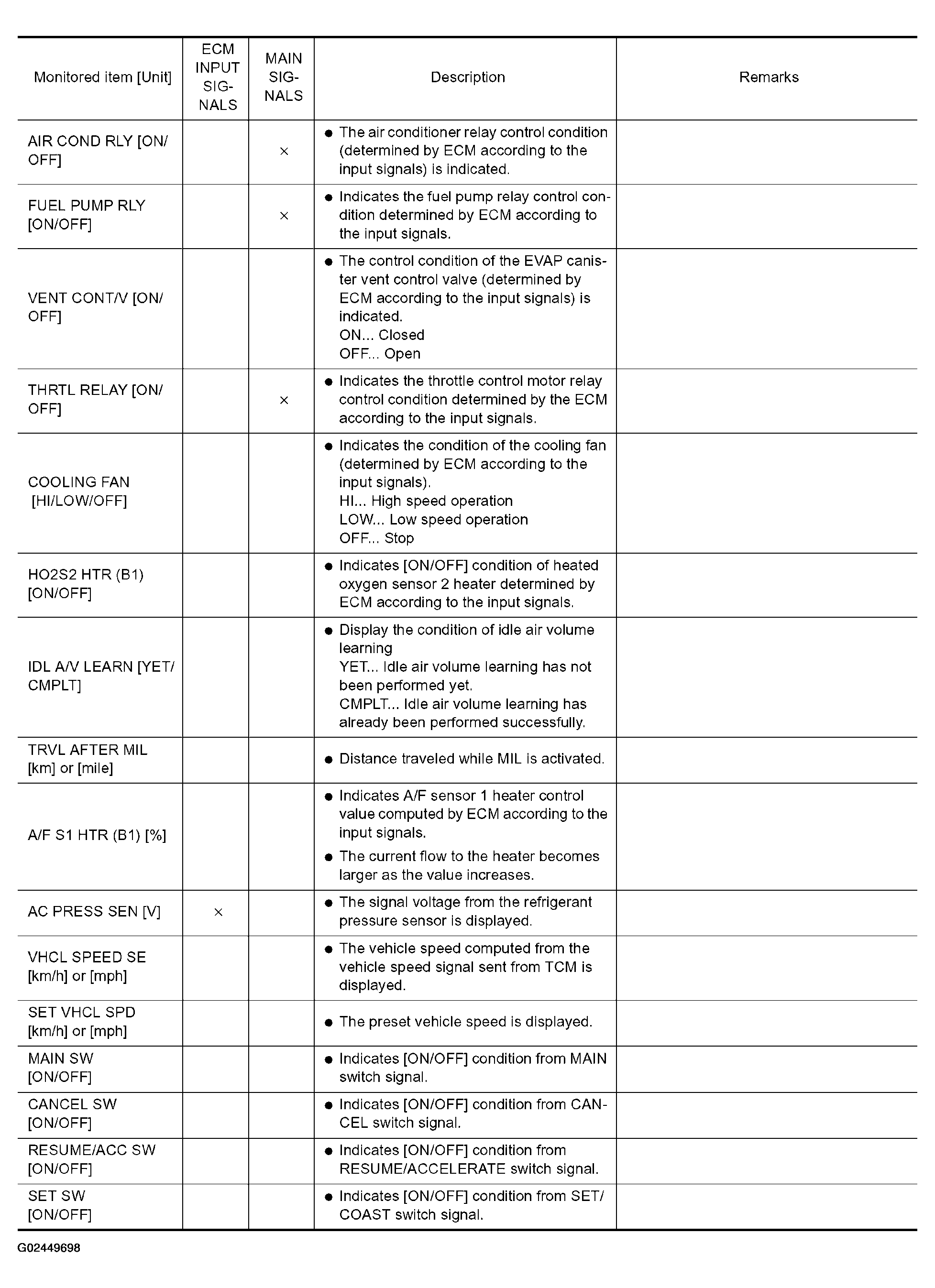

Fig 4: Data Monitor Mode Description Chart (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

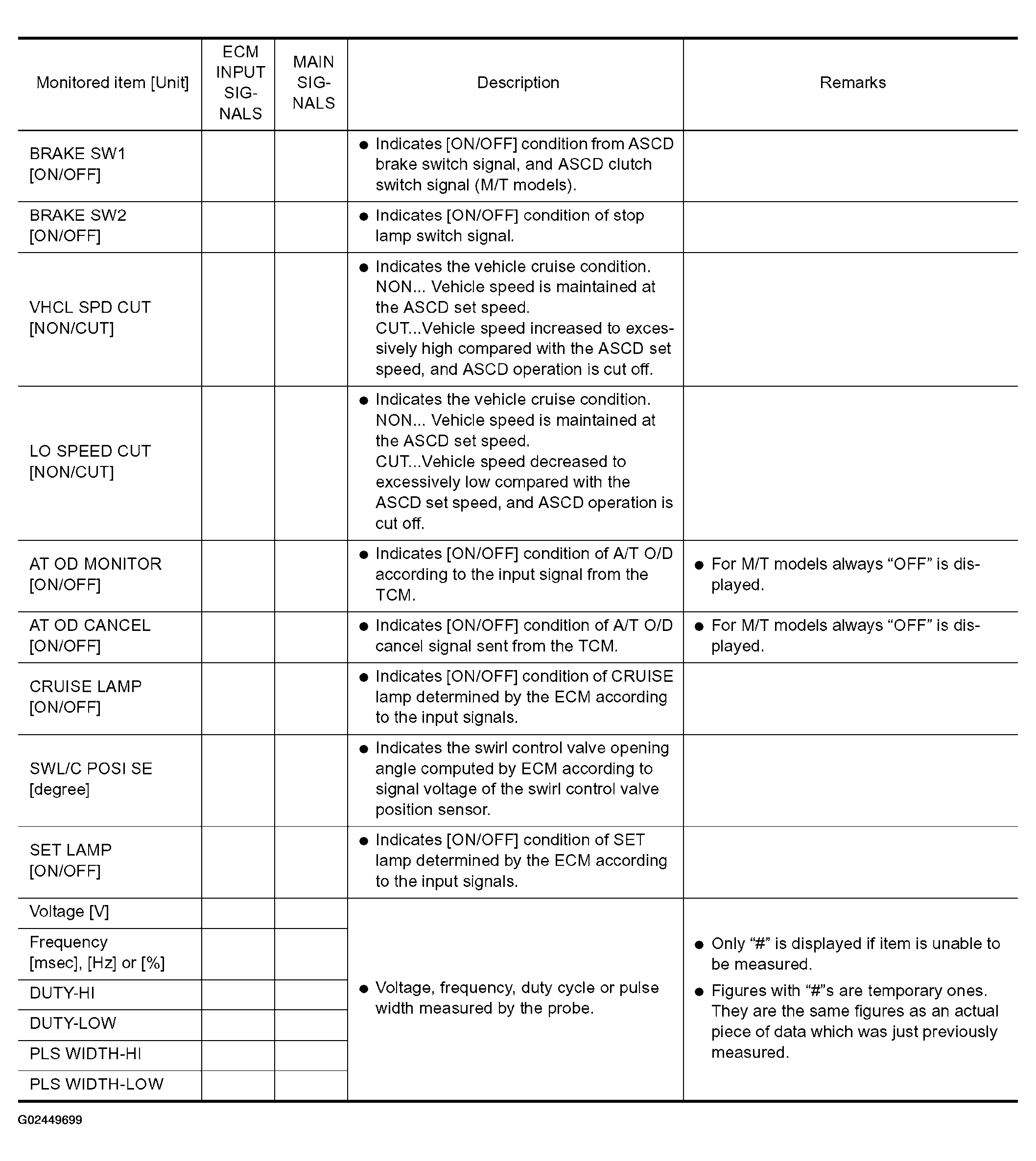

Fig 5: Data Monitor Mode Description Chart (5 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
