Idle Speed and Ignition Timing
Idle Speed and Ignition Timing

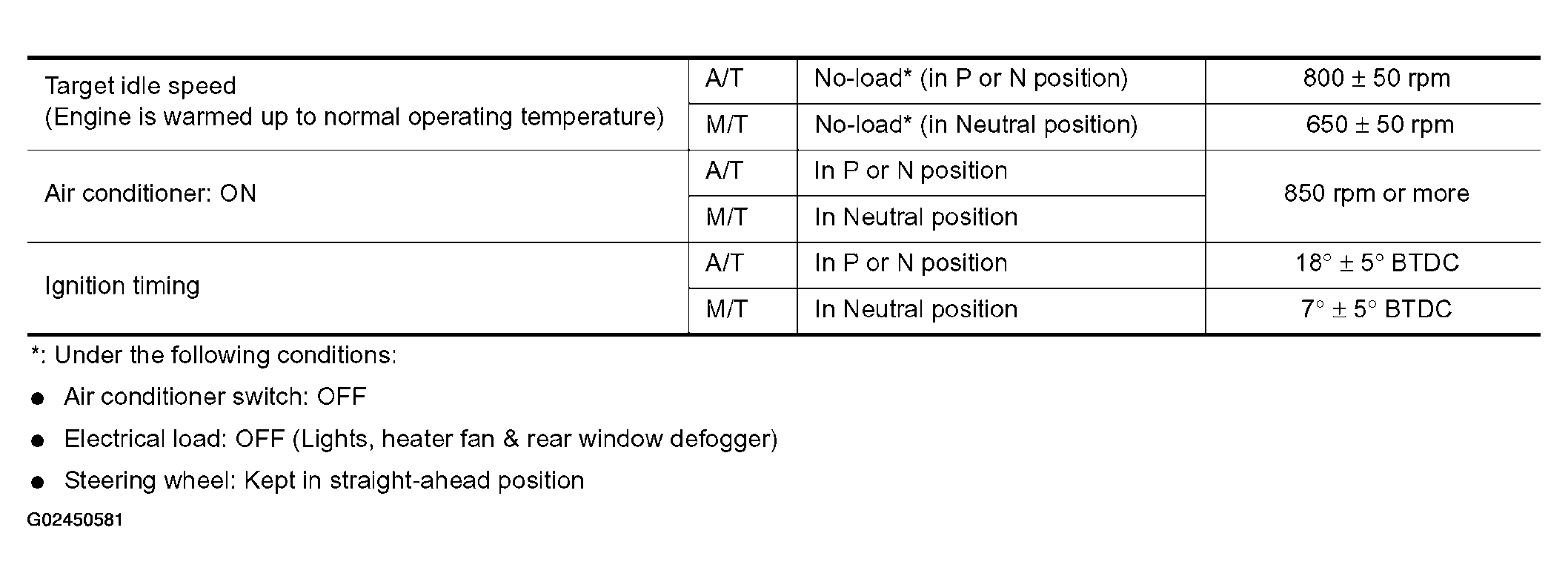

Fig 1: Idle Speed And Ignition Timing Specifications Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Air conditioner switch: OFF
Electrical load: OFF (Lights, heater fan & rear window defogger)
Steering wheel: Kept in straight-ahead position
Courtesy of NISSAN MOTOR CO., U.S.A.
