Sentra Base, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System (QG18DE)
>>
Electrical Load Signal
>>
Wiring Diagram
>>
SULEV Models
SULEV Models

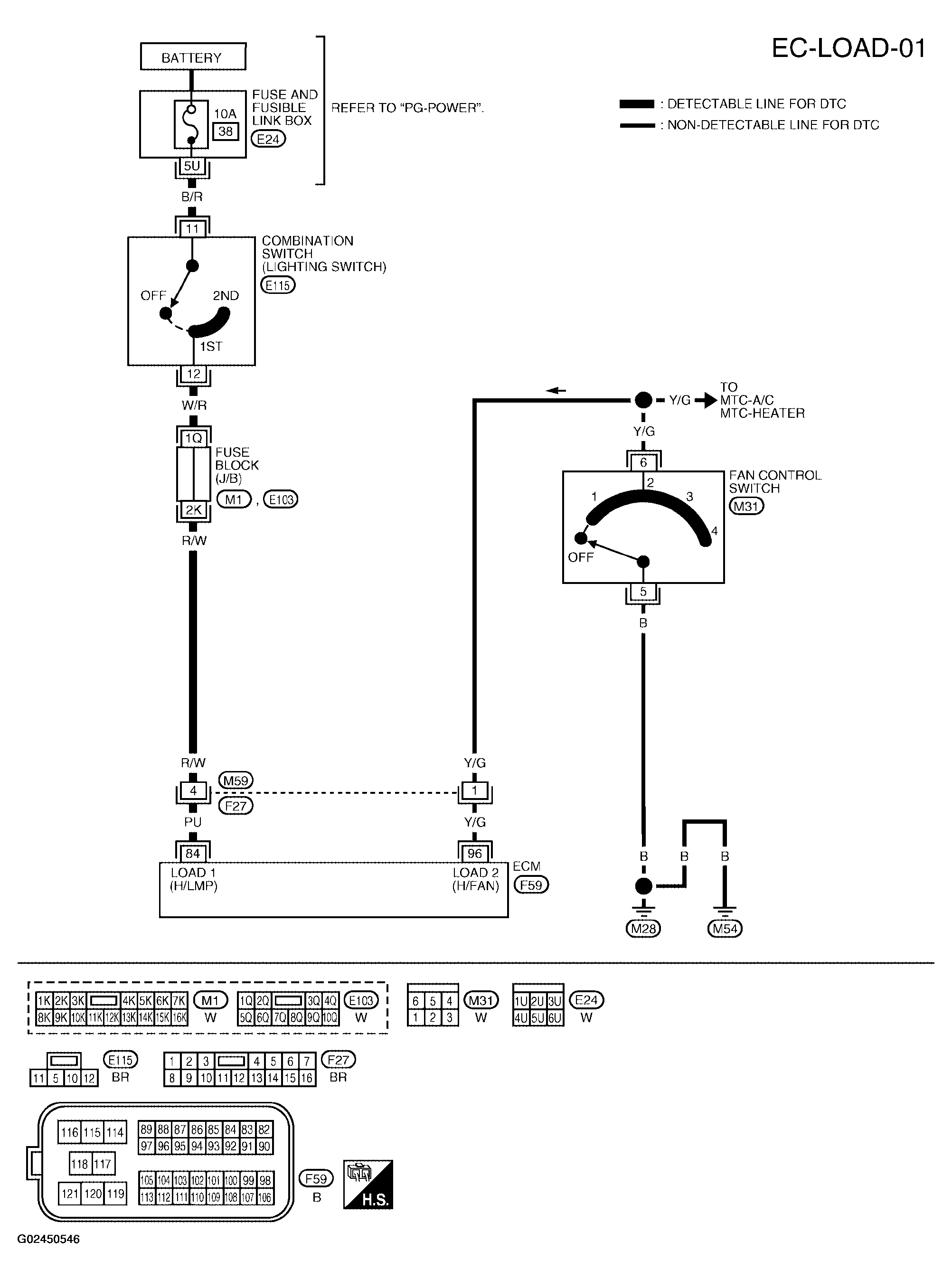

Fig 1: Wiring Diagram - Electrical Load Signal, SULEV Models (EC-LOAD-01)
Courtesy of NISSAN MOTOR CO., U.S.A.

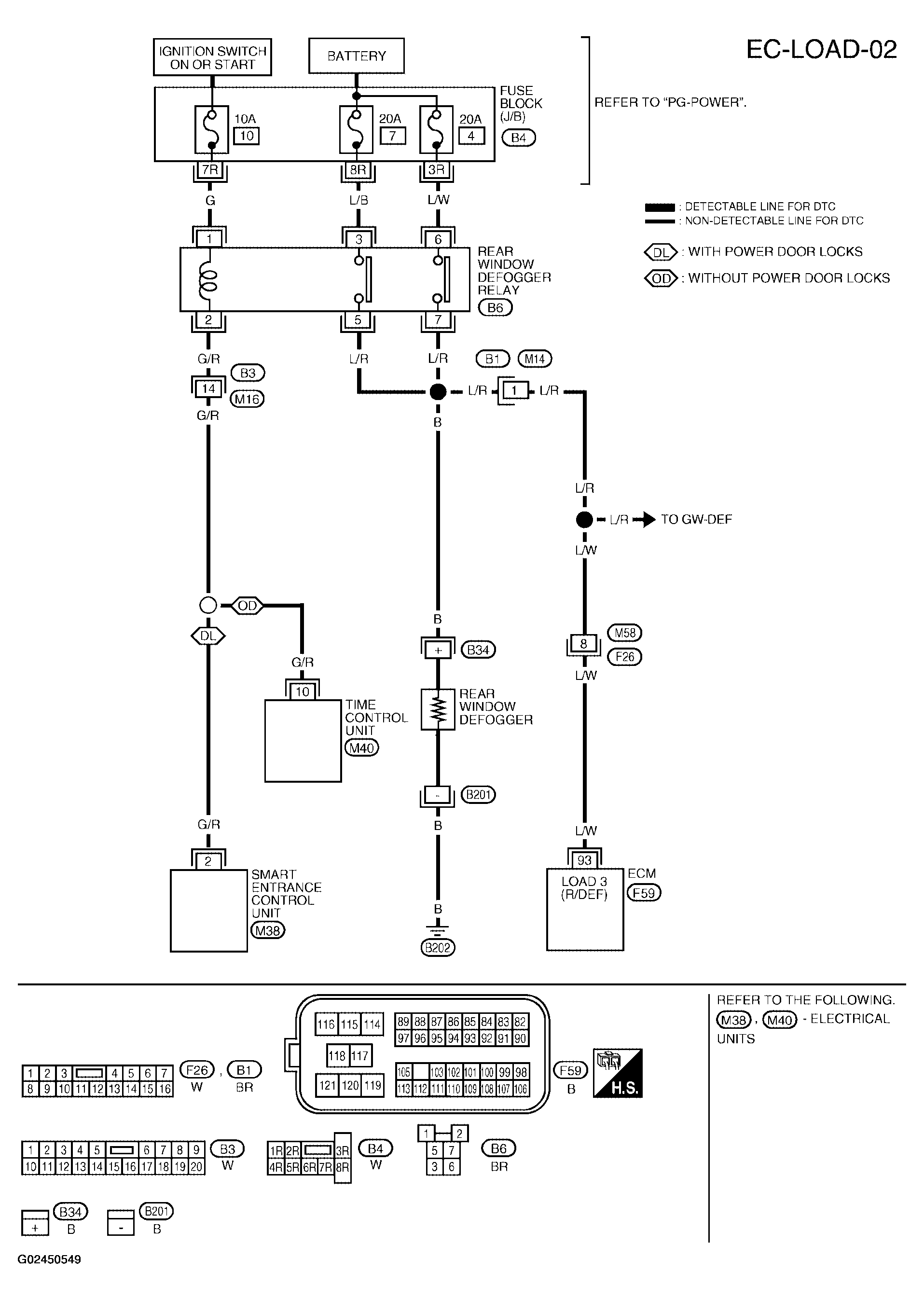

Fig 1: Wiring Diagram - Electrical Load Signal, SULEV Models (EC-LOAD-02)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
