Except SULEV Models

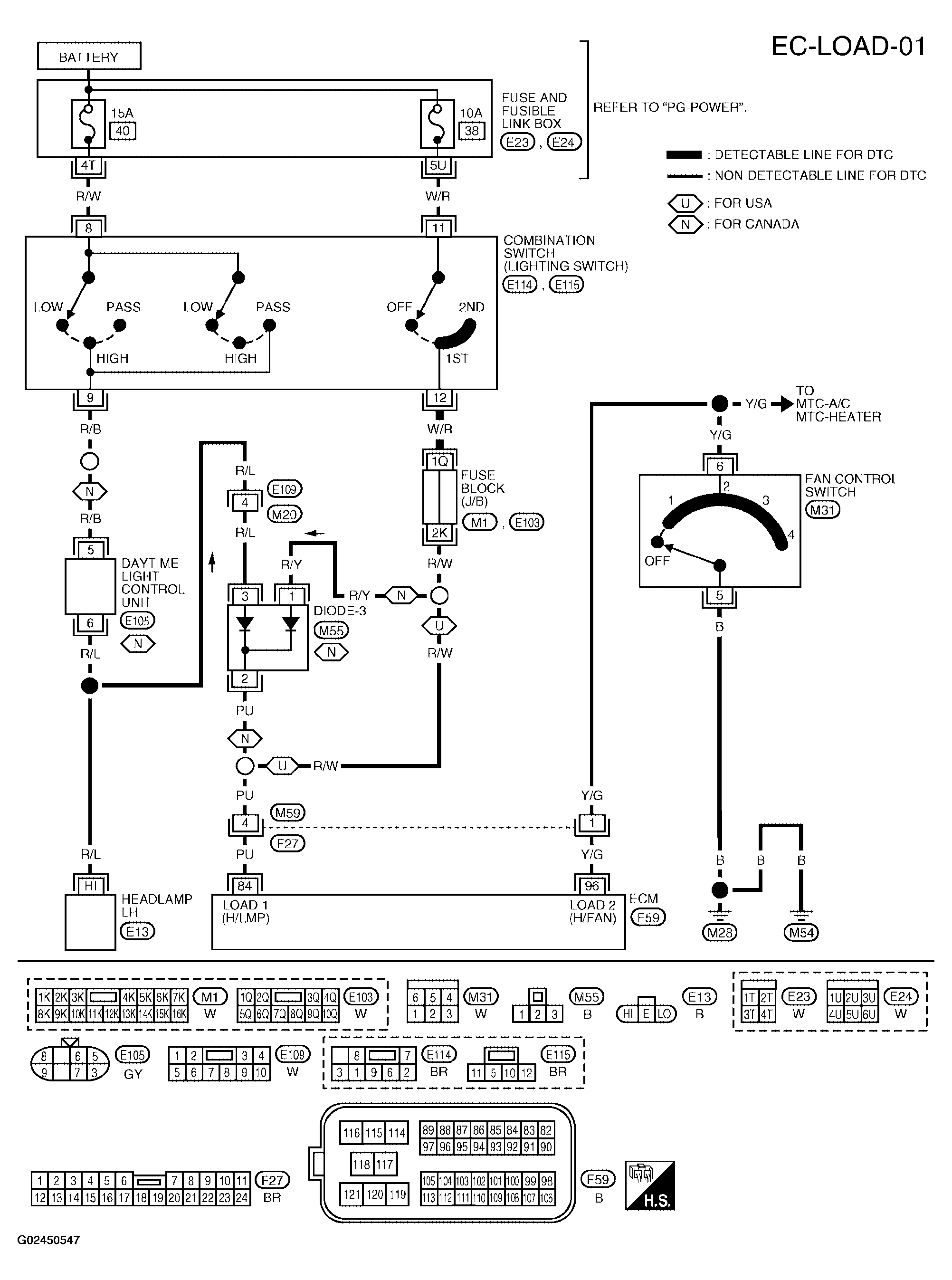

Fig 1: Wiring Diagram - Electrical Load Signal, Except Models (EC-LOAD-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

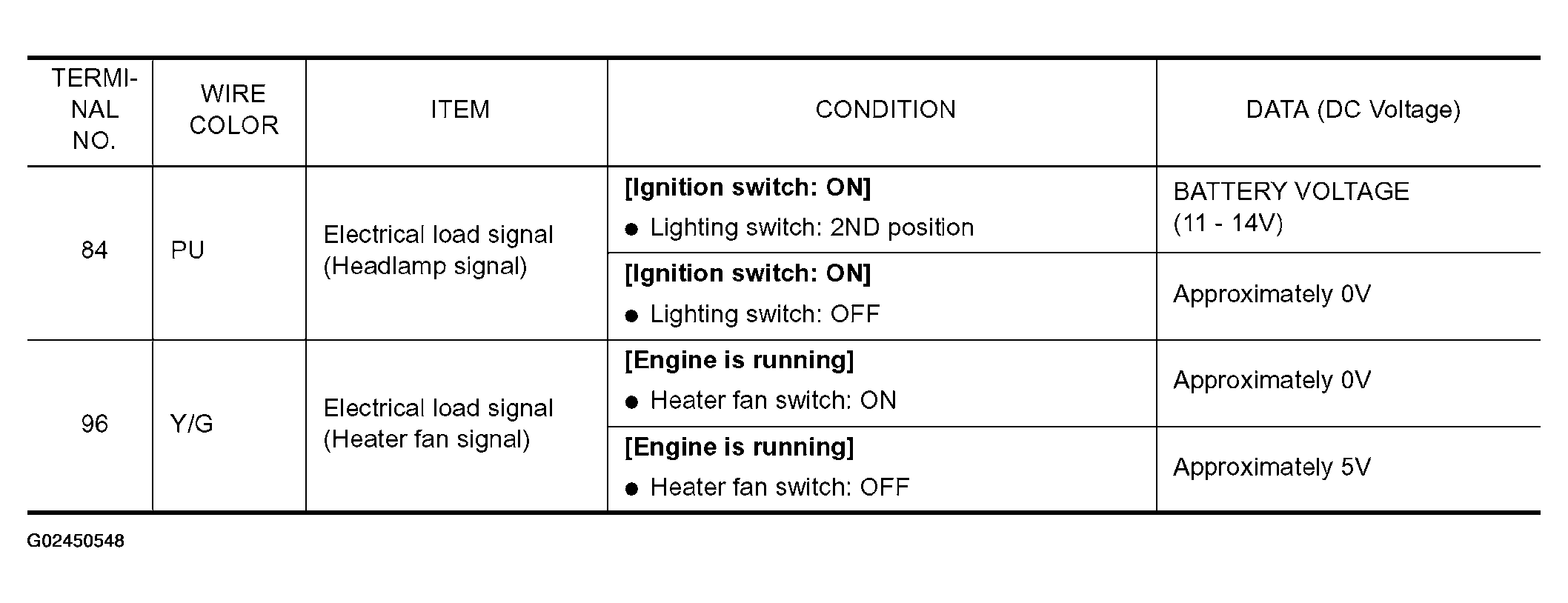

Fig 2: ECM Terminal Value Reference Chart - Electrical Load Signal Circuits

Courtesy of NISSAN MOTOR CO., U.S.A.

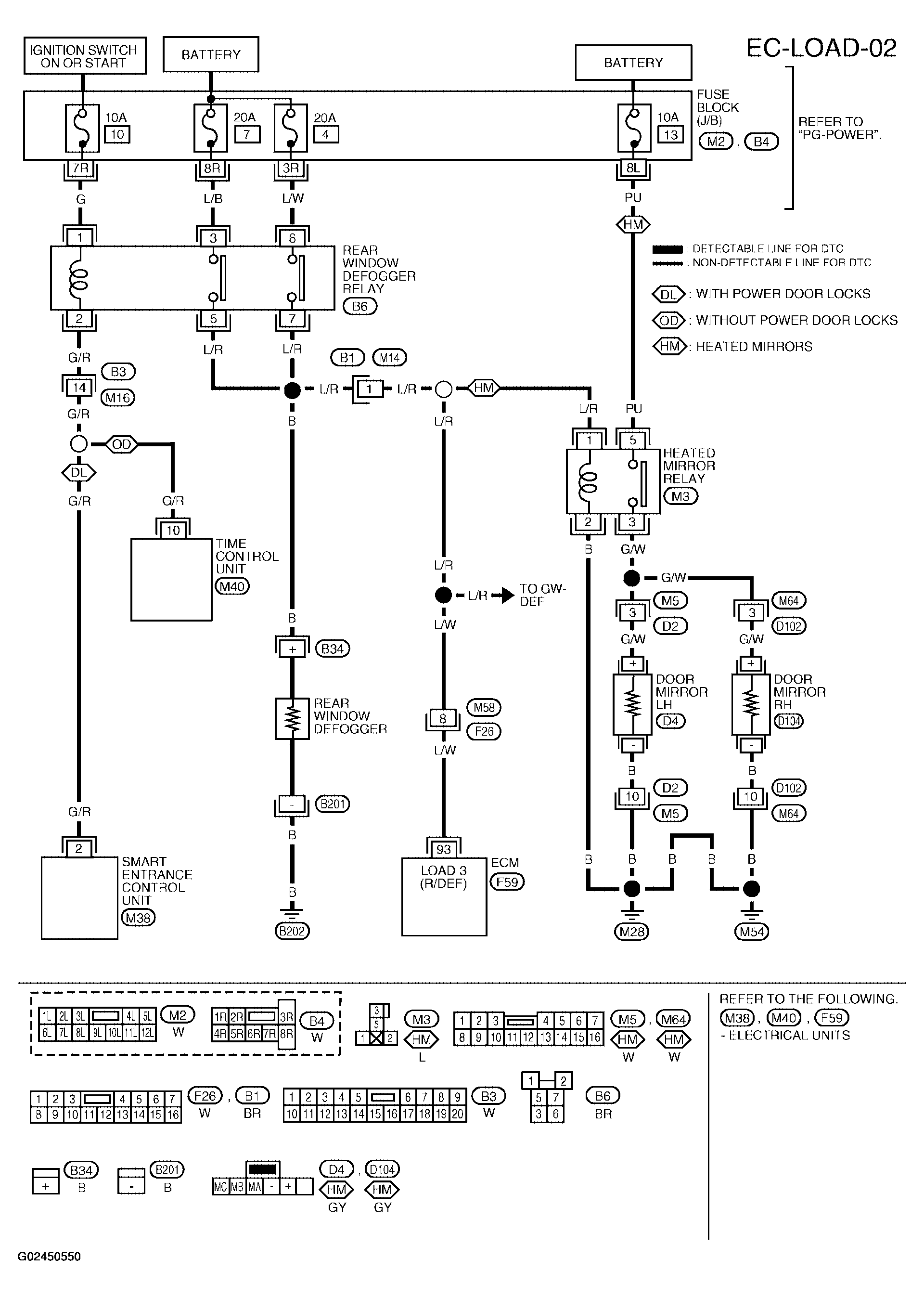

Fig 1: Wiring Diagram - Electrical Load Signal, Except SULEV Models (EC-LOAD-02)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

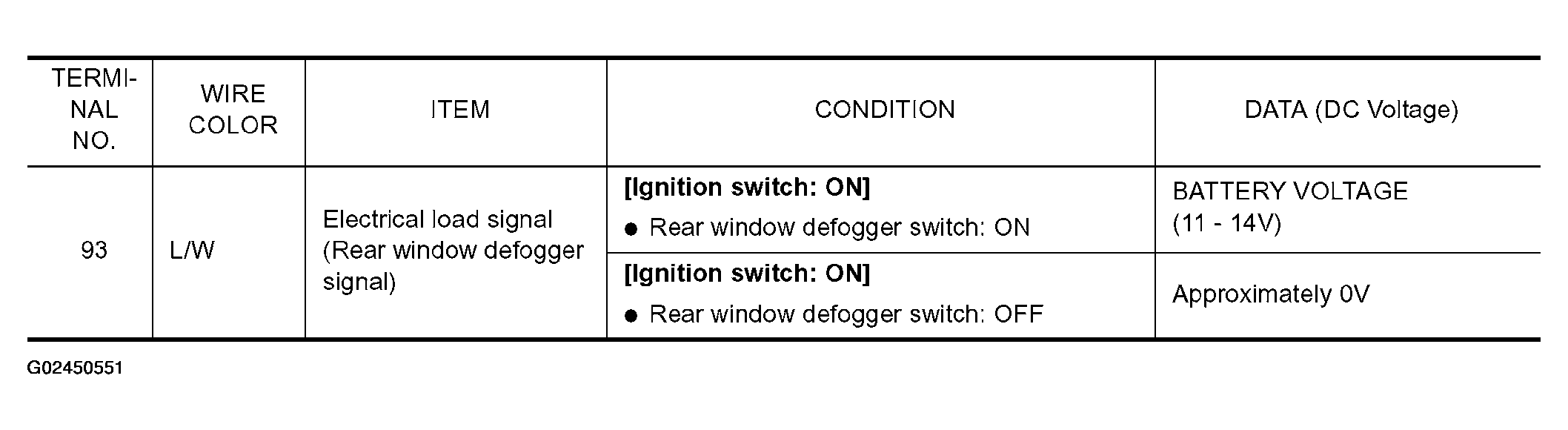

Fig 2: ECM Terminal Values Reference Chart - Electrical Load Signal (Rear Window Defogger)

Courtesy of NISSAN MOTOR CO., U.S.A.
