Stop Lamp Switch

Disconnect stop lamp switch harness connector.

Fig 1: Locating Stop Lamp Switch Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.

Fig 2: Checking Continuity Between Stop Lamp Switch Terminals 1 And 2 (4-Pin Connector)

Courtesy of NISSAN MOTOR CO., U.S.A.

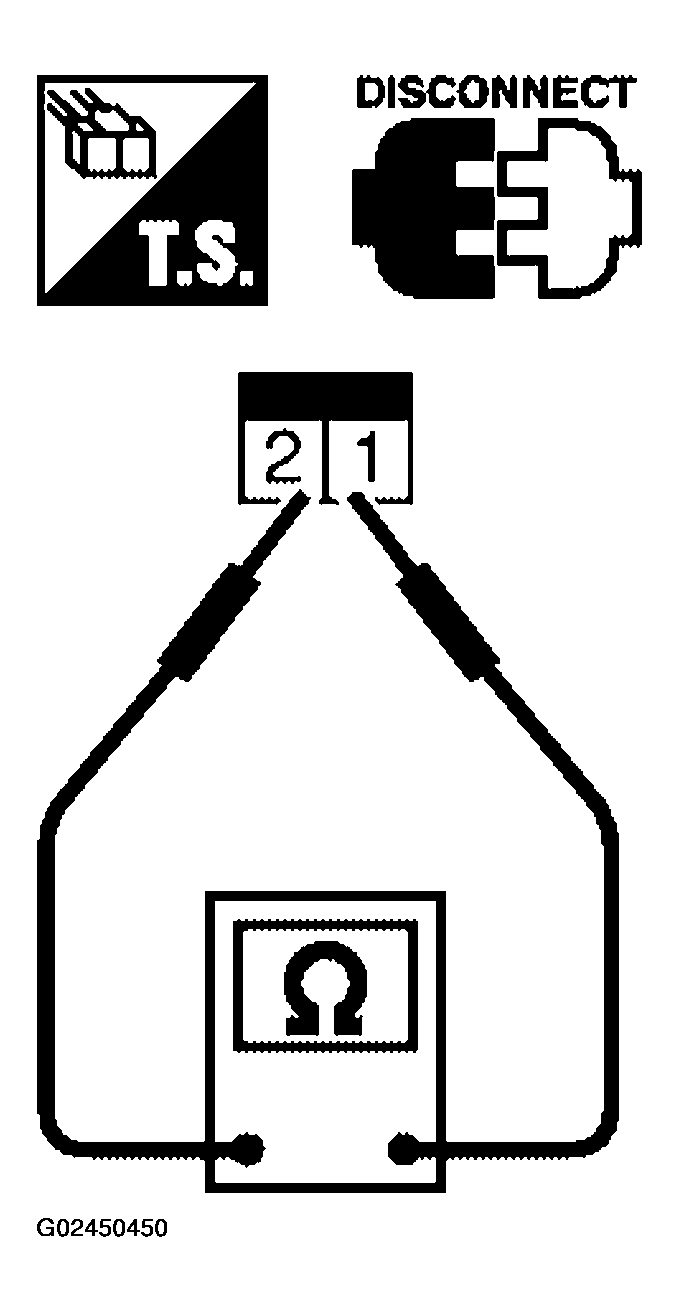

Fig 3: Checking Continuity Between Stop Lamp Switch Terminals 1 And 2 (2-Pin Connector)

Courtesy of NISSAN MOTOR CO., U.S.A.

STOP LAMP SWITCH CONTINUITY SPECIFICATION

Conditions	Continuity
Brake pedal fully released	Should not exist.
Brake pedal depressed	Should exist.

If NG, adjust brake pedal installation, refer to "BRAKE PEDAL AND BRACKET ", and perform step 2 again.
