DTC P0181: FTT Sensor: Wiring Diagram

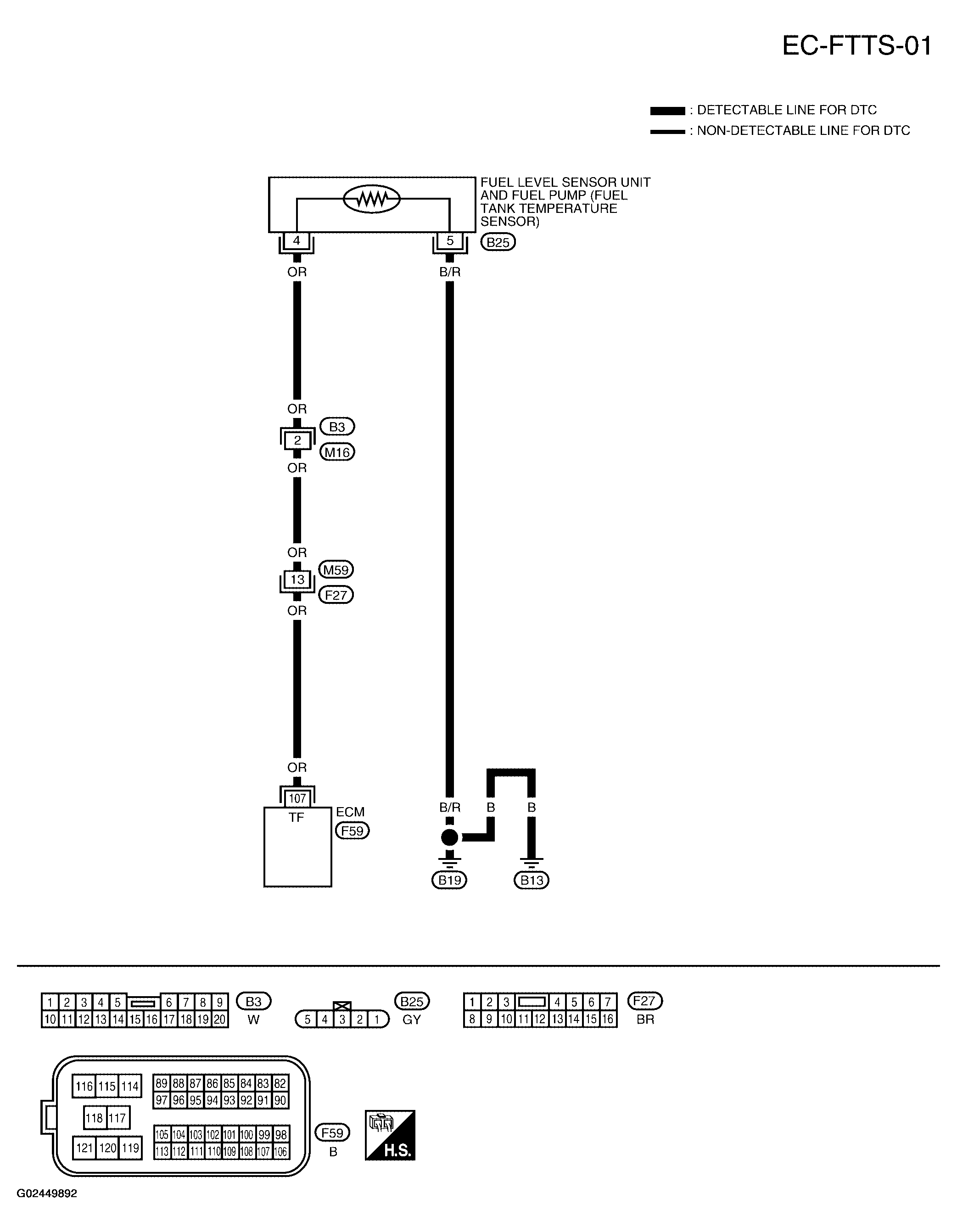

Fig 1: Wiring Diagram - Fuel Tank Temperature Sensor (EC-FTTS-01)

G02449892

Courtesy of NISSAN MOTOR CO., U.S.A.
