Home >> Nissan-Datsun >> 2005 >> Quest Base >> Repair and Diagnosis >> Steering >> Power Steering System >> Hydraulic Line >> Removal and Installation >> Notes

Removal and Installation: Notes

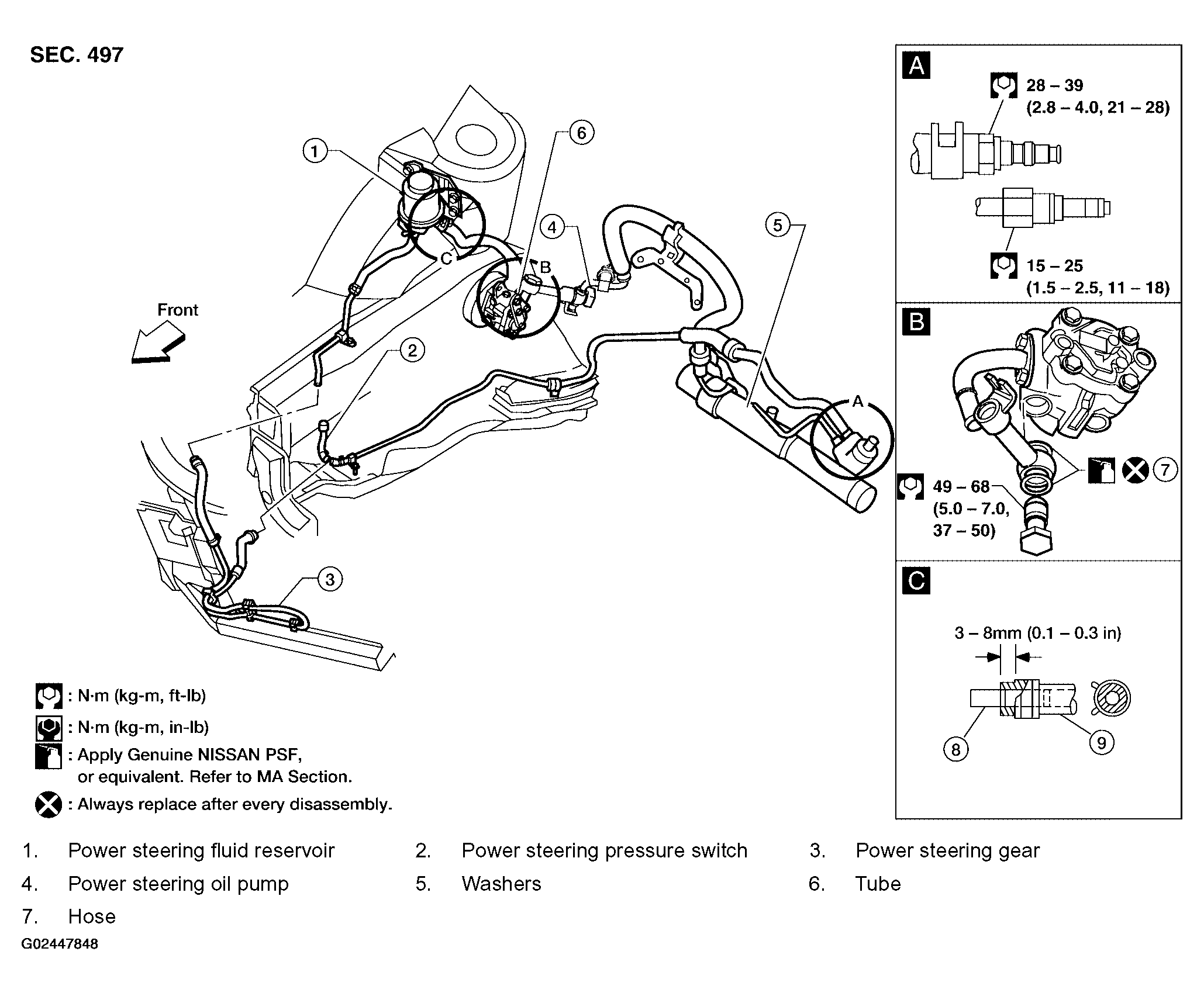

Fig 1: Disassembled View Of Hydraulic Line - With Torque Specifications

G02447848

Courtesy of NISSAN MOTOR CO., U.S.A.
