Removal and Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Remove license lamp finisher. Refer to "REMOVAL AND INSTALLATION ".
Carefully release tabs to remove back up lamp housing from license plate finisher.

Installation is in the reverse order of removal.

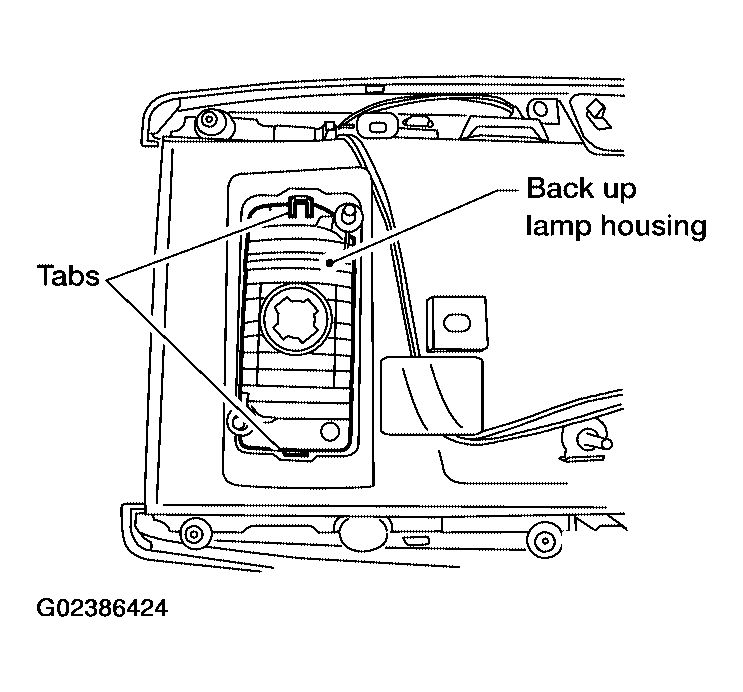

Fig 1: Identifying Back Up Lamp Housing Tabs

Courtesy of NISSAN MOTOR CO., U.S.A.
