Nissan-Datsun
>>
2005
>>
Quest Base
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System
>>
Service Data And Specifications (SDS)
>>
Mass Air Flow Sensor
Mass Air Flow Sensor

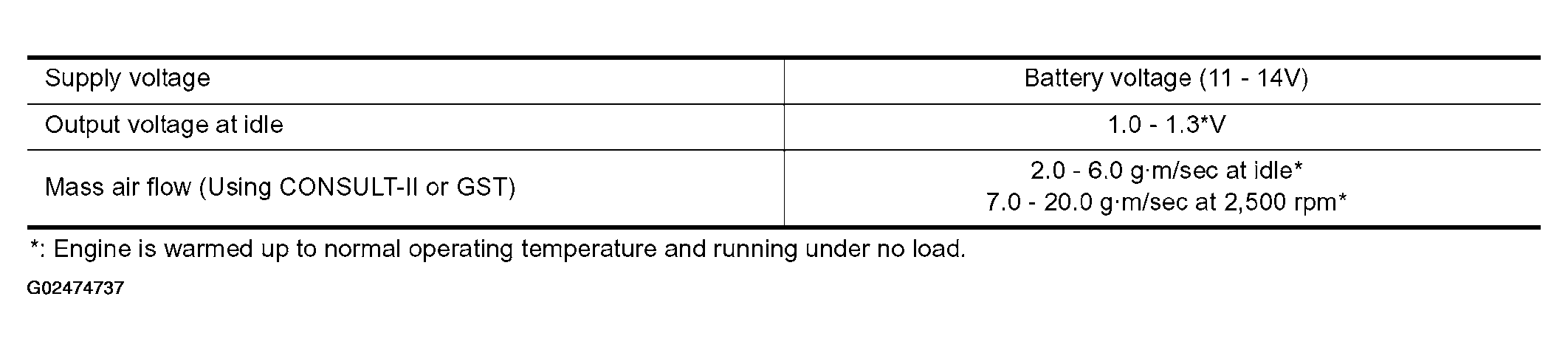

Fig 1: Mass Air Flow Sensor Reference Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
