DTC P0182, P0183: FTT Sensor: Wiring Diagram

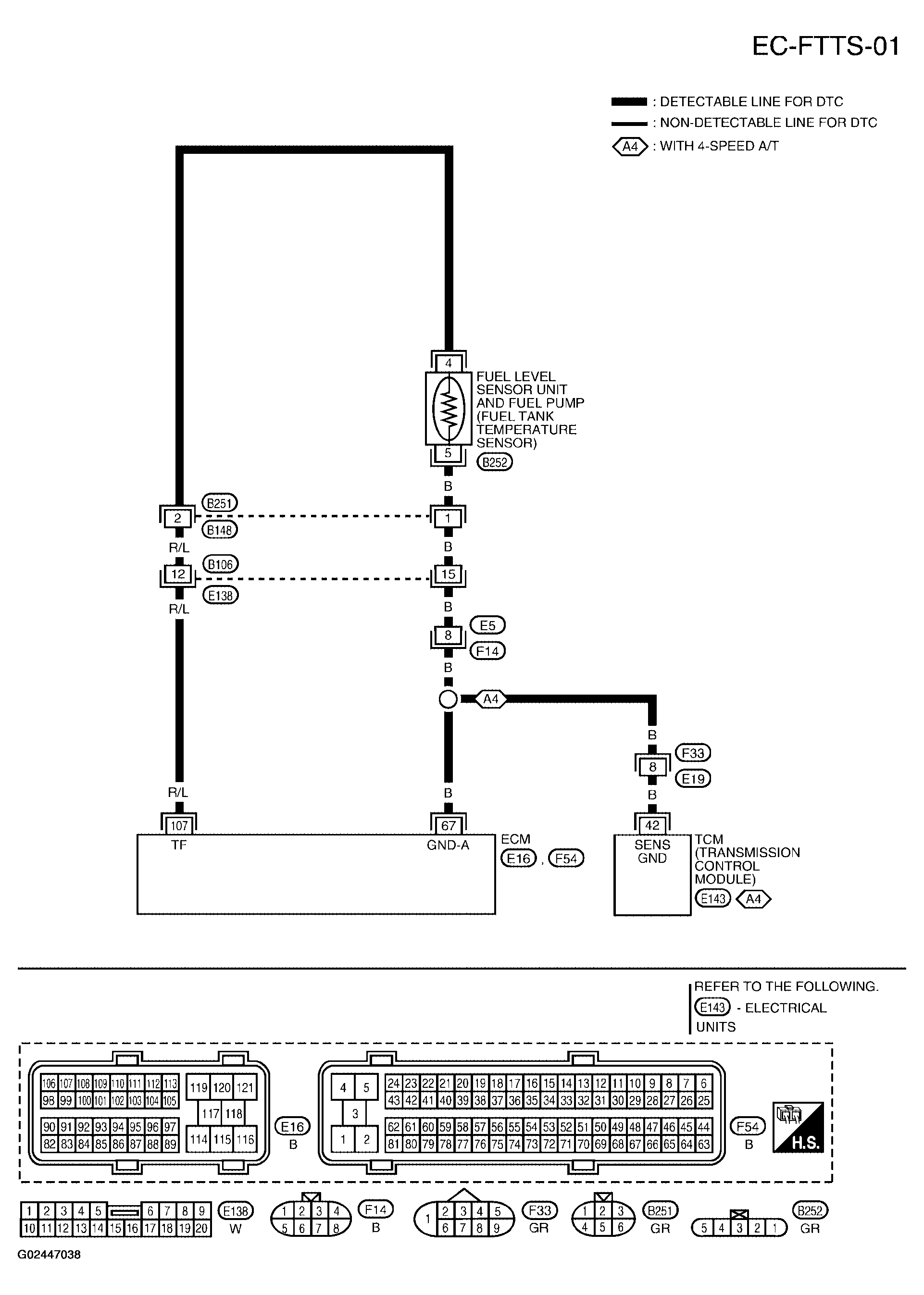

Fig 1: Wiring Diagram - FTT Sensor - EC-FTTS-01

G02447038

Courtesy of NISSAN MOTOR CO., U.S.A.
